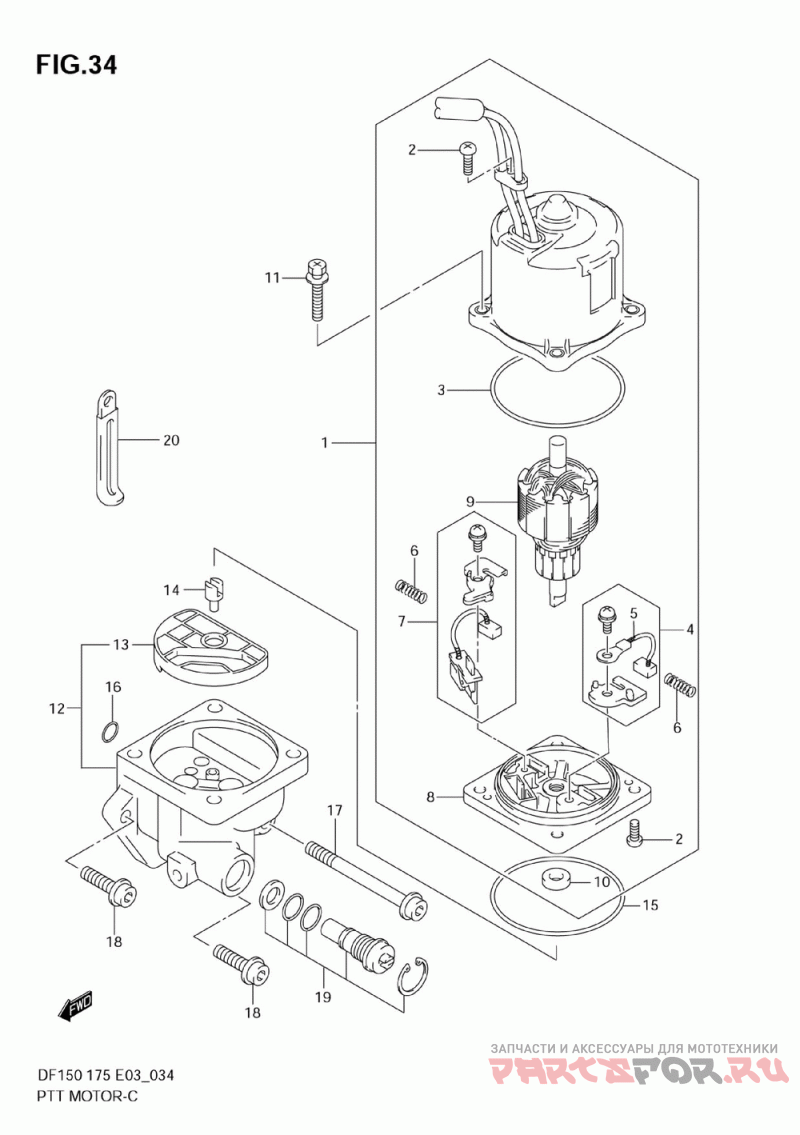

Двигатель силового привода PTT
Suzuki Marine DF150/DF175
| # | oem код | название | цена |
|---|---|---|---|
1 | 38100-96J00 Motor Assy, Ptt ( ) | Motor Assy, Ptt ( ) | |
2 | 31111-94900 Screw, Yoke ( ) | Screw, Yoke ( ) | |
3 | 31123-94900 O Ring ( ) | O Ring ( ) | |
4 | 31133-90J00 Brush Assy ( ) | Brush Assy ( ) | |
5 | 31133-94900 Brush ( ) | Brush ( ) | |
6 | 31135-94900 Spring ( ) | Spring ( ) | |
7 | 31136-90J10 Breaker Assy ( ) | Breaker Assy ( ) | |
8 | 31173-94900 Holder Assy, Bru (inc.no.3~7, 10 ) | Holder Assy, Bru (inc.no.3~7, 10 ) | |
9 | 31311-94900 Armature ( ) | Armature ( ) | |
10 | 33799-97E00 Seal, Oil ( ) | Seal, Oil ( ) | |
11 | 31281-92J00 Bolt, Through ( ) | Bolt, Through ( ) | |
12 | 48502-96J03 Pump Assy, Ptt (inc.no.13, 19 ) | Pump Assy, Ptt (inc.no.13, 19 ) | |
13 | 48582-95E01 Filter ( ) | Filter ( ) | |
14 | 48583-95E00 Joint, Drive ( ) | Joint, Drive ( ) | |
15 | 48585-95E00 Oring, Ptt ( ) | Oring, Ptt ( ) | |
16 | 48588-94900 O Ring ( ) | O Ring ( ) | |
17 | 48862-92J00 Bolt ( ) | Bolt ( ) | |
18 | 48862-92J10 Bolt ( ) | Bolt ( ) | |
19-1 | 48864-93J00 Valve, Manual ( ) | Valve, Manual ( ) | |
19-2 | 48864-96J00 Valve, Manual (model:08~09 ) | Valve, Manual (model:08~09 ) | |
20 | 29404-93J10 Clamp ( ) | Clamp ( ) |
