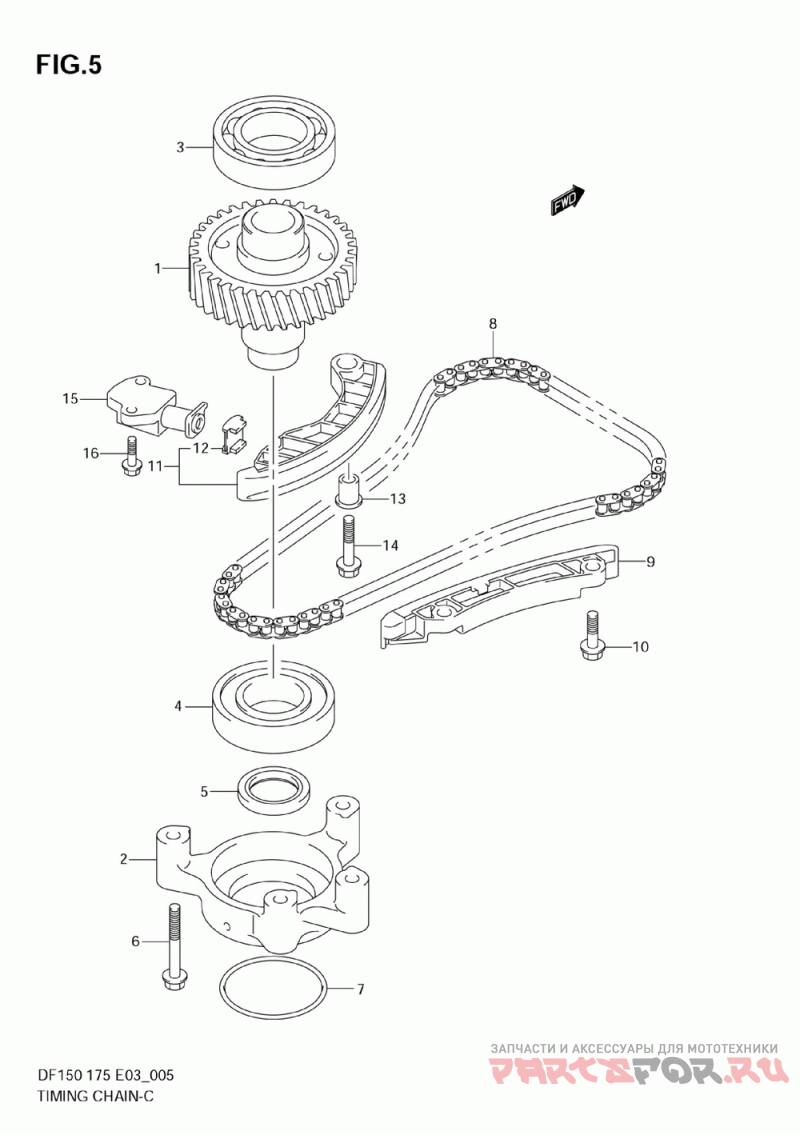

Цепь ГРМ
Suzuki Marine DF150/DF175
| # | oem код | название | цена |
|---|---|---|---|
1 | 12730-96J00 Деталь Gear Comp, Drive ( ) | Деталь Gear Comp, Drive ( ) | |
2 | 12734-96J00 Деталь Holder, Driven G ( ) | Деталь Holder, Driven G ( ) | |
3 | 08110-62080 Деталь Bearing, Upper ( ) | Деталь Bearing, Upper ( ) | |
4-1 | 09262-40018 Деталь Bearing, Lower ( ) | Деталь Bearing, Lower ( ) | |
5 | 09283-32044 Деталь Seal, Oil ( (32x47x6) ) | Деталь Seal, Oil ( (32x47x6) ) | |
6 | 01550-0855A Деталь Bolt, Holder ( ) | Деталь Bolt, Holder ( ) | |
7 | 09280-70012 Деталь O-ring, Holder(i ( (id:69.6, Dd:5.7) ) | Деталь O-ring, Holder(i ( (id:69.6, Dd:5.7) ) | |
8 | 12761-96J00 Деталь Chain Comp, Timi ( ) | Деталь Chain Comp, Timi ( ) | |
9 | 12772-96J00 Деталь Guide, Timing Ch ( ) | Деталь Guide, Timing Ch ( ) | |
10 | 01550-0825A Деталь Bolt ( ) | Деталь Bolt ( ) | |
11 | 12810-96J00 Деталь Tensioner Assy, ( ) | Деталь Tensioner Assy, ( ) | |
12 | 12813-73G00 Деталь Rod, Timing Chai ( ) | Деталь Rod, Timing Chai ( ) | |
13 | 12812-90J00 Деталь Spacer, Timing C ( ) | Деталь Spacer, Timing C ( ) | |
14 | 01550-0835A Деталь Bolt ( ) | Деталь Bolt ( ) | |
15 | 12831-93J01 Деталь Adjuster Assy, T ( ) | Деталь Adjuster Assy, T ( ) | |
16 | 01550-0620A Деталь Bolt ( ) | Деталь Bolt ( ) |
