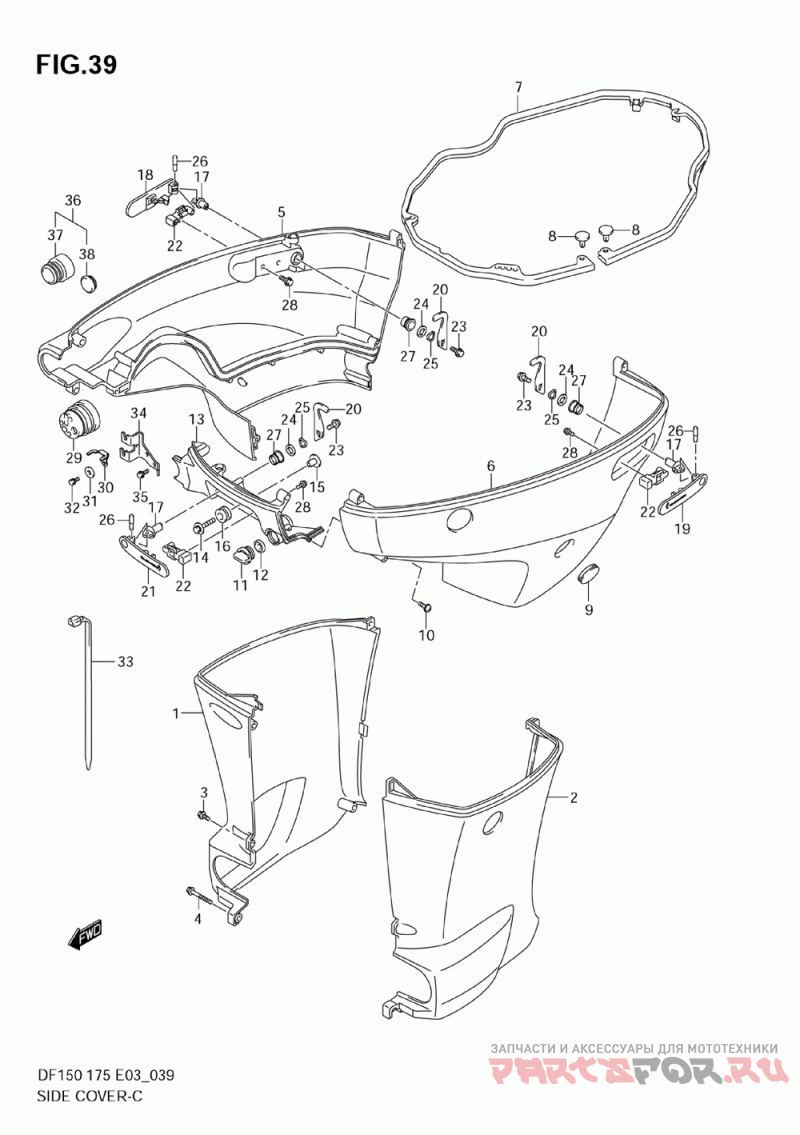

Боковая панель
Suzuki Marine DF150/DF175
| # | oem код | название | цена |
|---|---|---|---|
1-1 | 61131-96J01-0EP Деталь Cover, Oil Pan S ( (black) ) | Деталь Cover, Oil Pan S ( (black) ) | |
1-2 | 61131-96J11-0EP Деталь Cover, Oil Pan S ( (black) ) | Деталь Cover, Oil Pan S ( (black) ) | |
2-1 | 61141-96J01-0EP Деталь Cover, Oil Pan P ( (black) ) | Деталь Cover, Oil Pan P ( (black) ) | |
2-2 | 61141-96J11-0EP Деталь Cover, Oil Pan P ( (black) ) | Деталь Cover, Oil Pan P ( (black) ) | |
3-1 | 09139-06135 Деталь Screw, Oil Pan C (type:l ) | Деталь Screw, Oil Pan C (type:l ) | |
4 | 09139-06147 Деталь Bolt, Oil Pan Cover (type:l ) | Деталь Bolt, Oil Pan Cover (type:l ) | |
5 | 61811-96J01-0EP Деталь Cover, Side Stbd ( ) | Деталь Cover, Side Stbd ( ) | |
6 | 61821-96J01-0EP Деталь Cover, Side Port ( ) | Деталь Cover, Side Port ( ) | |
7 | 61134-96J00 Деталь Seal, Side Cover ( ) | Деталь Seal, Side Cover ( ) | |
8 | 09409-05302-5PK Деталь Pin ( ) | Деталь Pin ( ) | |
9 | 61817-89J00 Деталь Plug, Side Cover ( ) | Деталь Plug, Side Cover ( ) | |
10 | 09136-06148 Деталь Screw ( ) | Деталь Screw ( ) | |
11 | 17913-93J00 Деталь Plug, Water ( ) | Деталь Plug, Water ( ) | |
12 | 17914-93J00 Деталь Gasket, Water Pl ( ) | Деталь Gasket, Water Pl ( ) | |
13-1 | 61831-96J00-0EP Деталь Panel, Front ( ) | Деталь Panel, Front ( ) | |
13-2 | 61831-96J01-0EP Деталь Panel, Front (model:08~09 ) | Деталь Panel, Front (model:08~09 ) | |
14 | 09118-08127 Деталь Bolt (8x40) ( ) | Деталь Bolt (8x40) ( ) | |
15 | 09169-08039 Деталь Washer ( ) | Деталь Washer ( ) | |
16 | 09320-11013 Деталь Cushion ( ) | Деталь Cushion ( ) | |
17 | 61632-93J00 Деталь Shaft, Engine Co ( ) | Деталь Shaft, Engine Co ( ) | |
18-1 | 61633-96J00-0EP Деталь Lever, Hook Rear ( ) | Деталь Lever, Hook Rear ( ) | |
18-2 | 61633-96J02 Деталь Lever, Hook Rear (df150t:782346~ Df175z:780481~ ) | Деталь Lever, Hook Rear (df150t:782346~ Df175z:780481~ ) | |
19-1 | 61634-96J02 Деталь Lever, Hook Rear ( ) | Деталь Lever, Hook Rear ( ) | |
20 | 61641-93J10 Деталь Hook, Engine Cov ( ) | Деталь Hook, Engine Cov ( ) | |
21-1 | 61645-96J02 Деталь Lever, Hook Fron ( ) | Деталь Lever, Hook Fron ( ) | |
22 | 61673-96J01 Деталь Latch, Hook Leve ( ) | Деталь Latch, Hook Leve ( ) | |
23 | 09116-06127 Деталь Bolt (6x12) ( ) | Деталь Bolt (6x12) ( ) | |
24 | 09160-13014 Деталь Washer (13.2x25x1.0) ( (13.2x25x1.0) ) | Деталь Washer (13.2x25x1.0) ( (13.2x25x1.0) ) | |
25 | 09164-14008 Деталь Washer, Wave ( ) | Деталь Washer, Wave ( ) | |
26 | 09202-04022 Деталь Pin,hook Lever, ( ) | Деталь Pin,hook Lever, ( ) | |
27 | 09306-13007 Деталь Bush ( ) | Деталь Bush ( ) | |
28 | 01550-05107 Деталь Bolt ( ) | Деталь Bolt ( ) | |
29 | 61124-96J01 Деталь Grommet, R/con C ( ) | Деталь Grommet, R/con C ( ) | |
30 | 67343-96J00 Деталь Stopper, R/con C ( ) | Деталь Stopper, R/con C ( ) | |
31 | 09160-06047 Деталь .washer, Throttle Lever ( ) | Деталь .washer, Throttle Lever ( ) | |
32 | 01570-06127 Деталь Bolt, Fuse Terminal ( ) | Деталь Bolt, Fuse Terminal ( ) | |
33 | 09407-25402 Деталь .clamp ( ) | Деталь .clamp ( ) | |
34 | 67341-96J00 Деталь Holder, R/con Ca ( ) | Деталь Holder, R/con Ca ( ) | |
35 | 01550-06167 Деталь .bolt, Remocon Cable Holder ( ) | Деталь .bolt, Remocon Cable Holder ( ) | |
36 | 67300-93J00 Деталь Rigging Kit Ada (opt ) | Деталь Rigging Kit Ada (opt ) | |
37 | 67361-93J00 Деталь Adapter, Hose (opt ) | Деталь Adapter, Hose (opt ) | |
38 | 09250-21003 Деталь Plug (opt ) | Деталь Plug (opt ) |
