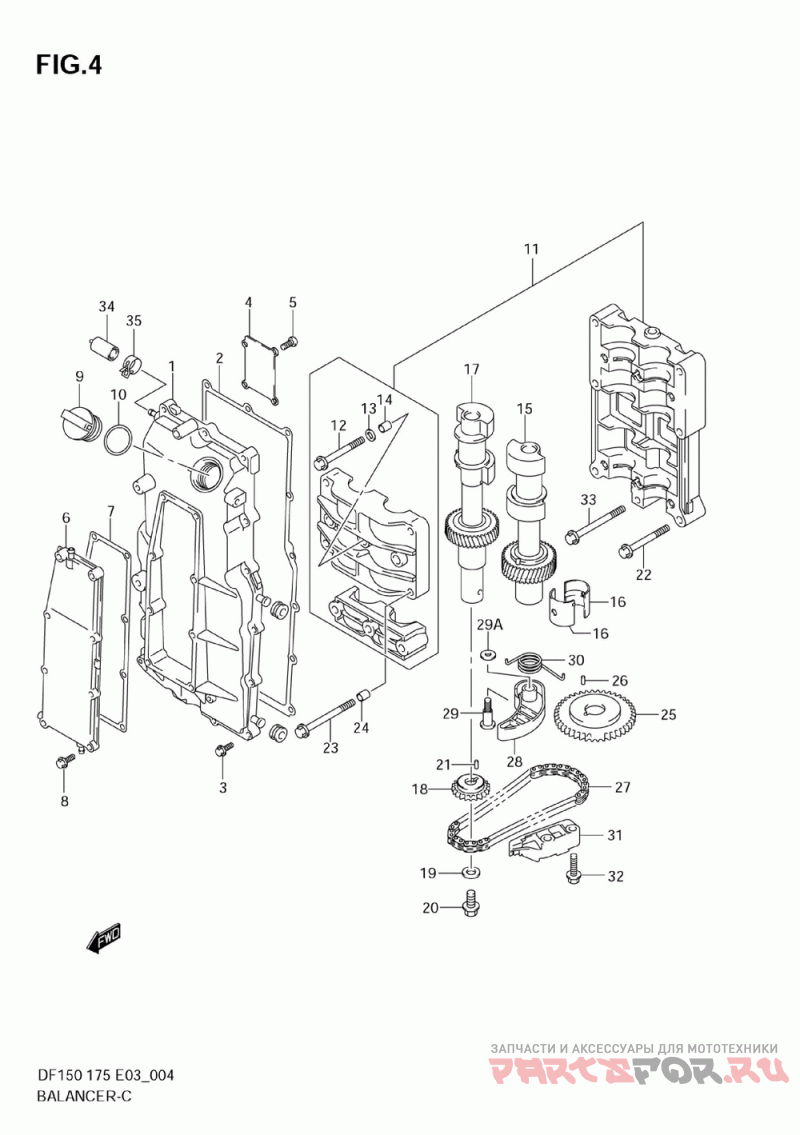

Балансирный вал
Suzuki Marine DF150/DF175
| # | oem код | название | цена |
|---|---|---|---|
1-1 | 11330-96J00 Cover Comp, Bala ( ) | Cover Comp, Bala ( ) | |
1-2 | 11330-96J10 Cover, Balancer (df150t:782346~ Df175z:780481~ ) | Cover, Balancer (df150t:782346~ Df175z:780481~ ) | |
2 | 11332-96J00 Gasket, Balancer ( ) | Gasket, Balancer ( ) | |
3 | 01550-06257 ..bolt ( ) | ..bolt ( ) | |
4 | 11345-96J00 Plate, Balancer (df150t:~782345 Df175z:~780480 ) | Plate, Balancer (df150t:~782345 Df175z:~780480 ) | |
5 | 02112-0612A Screw (df150t:~782345 Df175z:~780480 ) | Screw (df150t:~782345 Df175z:~780480 ) | |
6 | 11340-96J00 Cover Comp, Bala ( ) | Cover Comp, Bala ( ) | |
7 | 11342-96J00 Gasket, Bal Wtr ( ) | Gasket, Bal Wtr ( ) | |
9 | 11382-93J00 Cap, Oil Filler ( ) | Cap, Oil Filler ( ) | |
10 | 09280-26006 O Ring (d:3.1, Id:26.4) ( (id:26.4, Dd:3.1) ) | O Ring (d:3.1, Id:26.4) ( (id:26.4, Dd:3.1) ) | |
11 | 12600-96J00 Housing Assy, Ba ( ) | Housing Assy, Ba ( ) | |
12 | 12643-96J00 Bolt, Balancer ( ) | Bolt, Balancer ( ) | |
13 | 12644-96J00 Washer ( ) | Washer ( ) | |
14 | 04211-11129 .pin ( ) | .pin ( ) | |
15 | 12605-96J01 Shaft Assy, Bala ( ) | Shaft Assy, Bala ( ) | |
16 | 12645-96J00 Bearing ( ) | Bearing ( ) | |
17 | 12650-96J00 Balancer Comp ( ) | Balancer Comp ( ) | |
18 | 12665-96J00 Sprocket, Bal Dr ( ) | Sprocket, Bal Dr ( ) | |
19 | 09160-10039 Washer (10.5x22x2.3) ( (10.5x22x2.3) ) | Washer (10.5x22x2.3) ( (10.5x22x2.3) ) | |
20 | 01550-1020A Bolt, Bal Sprocket ( ) | Bolt, Bal Sprocket ( ) | |
21 | 04221-04089 Pin ( ) | Pin ( ) | |
22 | 09103-08414 Bolt, Bal Housing No.1 (8x53) ( ) | Bolt, Bal Housing No.1 (8x53) ( ) | |
23 | 09103-08423 Bolt, Bal Housing No.3 (8x80) ( ) | Bolt, Bal Housing No.3 (8x80) ( ) | |
25 | 12662-96J00 Sprocket, Bal Dr ( ) | Sprocket, Bal Dr ( ) | |
26 | 09202-05032 Pin, Camshaft Ti ( ) | Pin, Camshaft Ti ( ) | |
27 | 12670-96J00 Chain Comp, Bala ( ) | Chain Comp, Bala ( ) | |
28-1 | 12671-96J00 Tensioner, Balan (->12670-96810 Bolt & Tensioner Set ) | Tensioner, Balan (->12670-96810 Bolt & Tensioner Set ) | |
28-2 | 12671-96J01 Tensioner, Balan (model:09 ) | Tensioner, Balan (model:09 ) | |
29-1 | 12672-96J00 Bolt, Bal Chain (->12670-96810 Bolt & Tensioner Set ) | Bolt, Bal Chain (->12670-96810 Bolt & Tensioner Set ) | |
29-2 | 12672-96J01 Bolt, Balncr Cha (model:09 ) | Bolt, Balncr Cha (model:09 ) | |
29A | 09160-08079 Washer (model:09 (8x17x2.0) ) | Washer (model:09 (8x17x2.0) ) | |
30 | 12673-96J00 Spring, Bal Chai ( ) | Spring, Bal Chai ( ) | |
31 | 12695-96J00 Guide, Balancer ( ) | Guide, Balancer ( ) | |
32 | 01550-0825A Bolt ( ) | Bolt ( ) | |
33 | 09103-08158 Bolt, Bal Housing No.2 (8x75) ( ) | Bolt, Bal Housing No.2 (8x75) ( ) | |
34 | 09251-05006 Plug (df150t:780701~782345 Df175z:780119~780480 ) | Plug (df150t:780701~782345 Df175z:780119~780480 ) | |
35 | 09401-10411 Clip (df150t:780701~782345 Df175z:780119~780480 ) | Clip (df150t:780701~782345 Df175z:780119~780480 ) |
