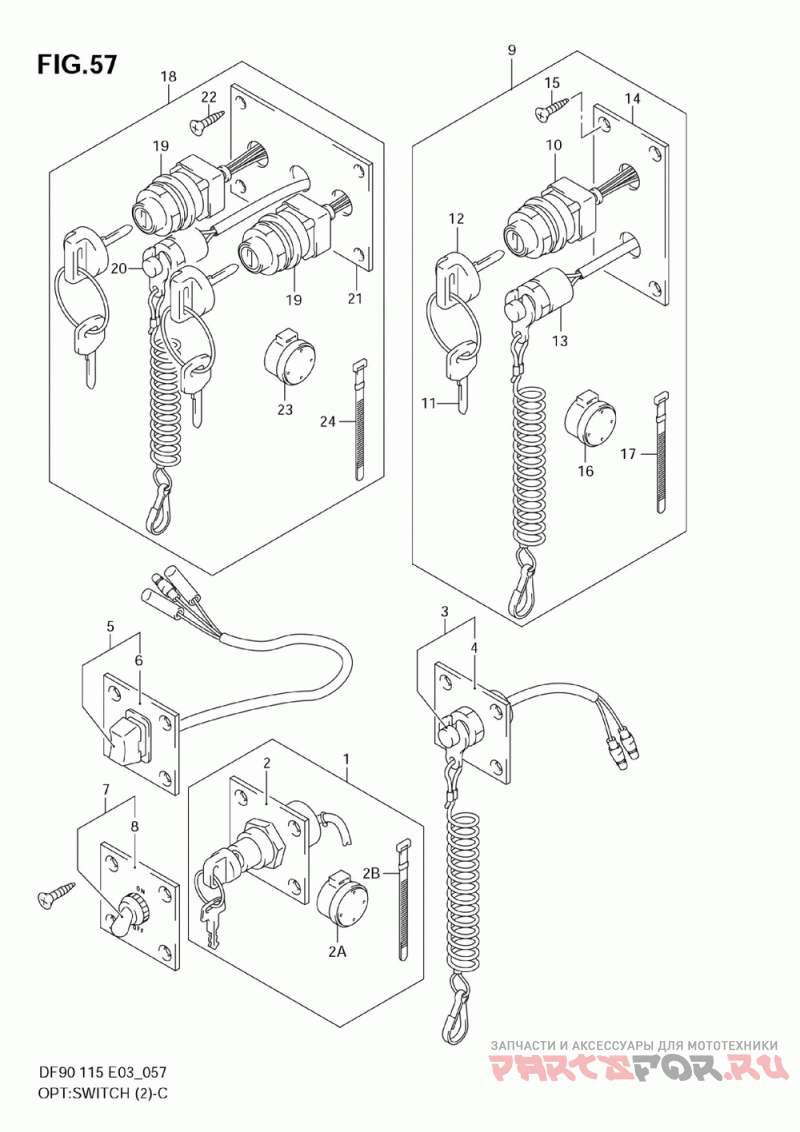

Opt:switch (model:05~09)
Suzuki Marine DF100/DF115
| # | oem код | название | цена |
|---|---|---|---|
1-1 | 37100-96J00 Sngl Ign & Buzz ( ) | Sngl Ign & Buzz ( ) | |
2 | 37139-99E00 Panel, Ignition ( ) | Panel, Ignition ( ) | |
2A | 38500-93J90 Buzzer, Warning (model:06~09 ) | Buzzer, Warning (model:06~09 ) | |
2B | 09407-14403 .clamp, Battery Cable (model:06~09 ) | .clamp, Battery Cable (model:06~09 ) | |
3 | 37803-93J00 Emgry Sw Panel ( ) | Emgry Sw Panel ( ) | |
4 | 37825-99E00 Panel, Emergency ( ) | Panel, Emergency ( ) | |
5 | 37805-93J00 Ptt Sw Panel Df ( ) | Ptt Sw Panel Df ( ) | |
6 | 37855-99E00 Panel, Ptt Sw ( ) | Panel, Ptt Sw ( ) | |
7 | 37210-93J00 Panel Assy, Ligh ( ) | Panel Assy, Ligh ( ) | |
8 | 37212-93J00 Panel, Lighting ( ) | Panel, Lighting ( ) | |
9-1 | 37100-96J20 Ign Stop& Buzz ( ) | Ign Stop& Buzz ( ) | |
10 | 37110-93J00 Switch Assy, Ign ( ) | Switch Assy, Ign ( ) | |
11-1 | 37141-99E00 Key (931) ( ) | Key (931) ( ) | |
11-2 | 37141-99E10 Key (932) ( ) | Key (932) ( ) | |
11-3 | 37141-99E20 Key (933) ( ) | Key (933) ( ) | |
11-4 | 37141-99E30 Key (934) ( ) | Key (934) ( ) | |
11-5 | 37141-99E40 Key (935) ( ) | Key (935) ( ) | |
11-6 | 37141-99E50 Key (936) ( ) | Key (936) ( ) | |
11-7 | 37141-99E60 Key (937) ( ) | Key (937) ( ) | |
11-8 | 37141-99E70 Key (938) ( ) | Key (938) ( ) | |
11-9 | 37141-99E80 Key (939) ( ) | Key (939) ( ) | |
11-10 | 37141-99E90 Key (940) ( ) | Key (940) ( ) | |
11-11 | 37141-99EA0 Key (941) ( ) | Key (941) ( ) | |
11-12 | 37141-99EB0 Key (942) ( ) | Key (942) ( ) | |
12 | 37143-99E00 Cap, Key ( ) | Cap, Key ( ) | |
13 | 37820-93J02 Switch Assy, Eme ( ) | Switch Assy, Eme ( ) | |
14 | 37139-99E20 Panel, Ignition ( ) | Panel, Ignition ( ) | |
15 | 03121-0516A .screw ( ) | .screw ( ) | |
18 | 37100-96J10 Dual Swt Panel& (df115z ) | Dual Swt Panel& (df115z ) | |
20 | 37820-93J92 Switch Assy, Eme (df115z ) | Switch Assy, Eme (df115z ) | |
21 | 37139-99E10 Panel, Ignition (df115z ) | Panel, Ignition (df115z ) | |
3 | 37803-93J02 Emgry Sw Panel ( ) | Emgry Sw Panel ( ) |
