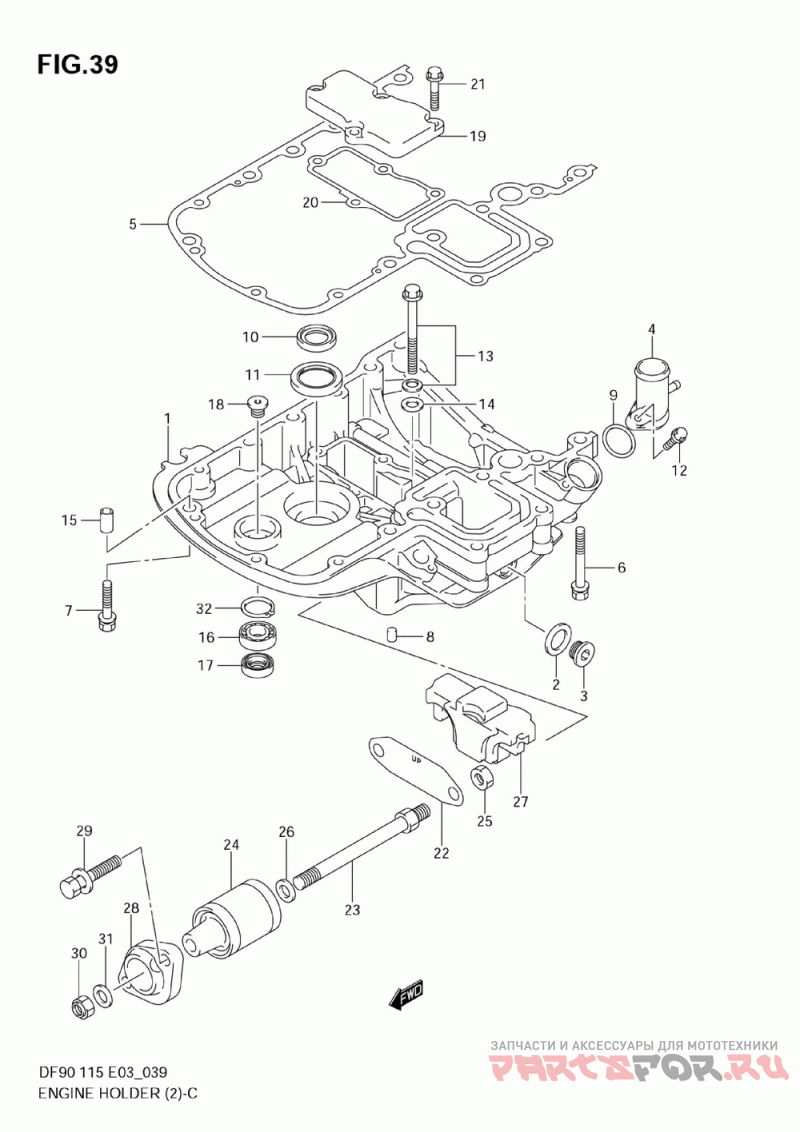

Ne holder (df90t:680686~,df115t:681518~,df115z,df100t)
Suzuki Marine DF100/DF115
| # | oem код | название | цена |
|---|---|---|---|
1-1 | 51110-90842-0EP Holder Set,engi (inc.no.2,3,10,11,16, 17,32 Fig.5 No.7 ) | Holder Set,engi (inc.no.2,3,10,11,16, 17,32 Fig.5 No.7 ) | |
2 | 09160-18031 .gasket (18.5x28x2.6) (~model:07 ) | .gasket (18.5x28x2.6) (~model:07 ) | |
3 | 09248-18010 .plug (~model:07 ) | .plug (~model:07 ) | |
4 | 51115-90J00 Union, Water Ret ( ) | Union, Water Ret ( ) | |
5 | 51211-90J21 Gasket, Eng Hold ( ) | Gasket, Eng Hold ( ) | |
6 | 09116-08119 Bolt (8x70) ( ) | Bolt (8x70) ( ) | |
7 | 09116-08128 Bolt, 8x40 (<-09116-08098 ) | Bolt, 8x40 (<-09116-08098 ) | |
8 | 09206-08001 Pin ( ) | Pin ( ) | |
9 | 09280-26006 O Ring (d:3.1, Id:26.4) ( ) | O Ring (d:3.1, Id:26.4) ( ) | |
10 | 09282-24003 Oil Seal ( ) | Oil Seal ( ) | |
11 | 09283-32044 Seal, Oil ( ) | Seal, Oil ( ) | |
12 | 01550-06257 ..bolt ( ) | ..bolt ( ) | |
13 | 29117-93J10 Bolt (<-09117-08038 ) | Bolt (<-09117-08038 ) | |
14 | 09160-08059 .spacer, Remocon Cable Holder ( ) | .spacer, Remocon Cable Holder ( ) | |
15 | 04211-11129 .pin ( ) | .pin ( ) | |
16 | 09262-17019 Bearing, Clutch Shaft ( ) | Bearing, Clutch Shaft ( ) | |
17 | 09289-18001 Seal, Clutch Shaft ( ) | Seal, Clutch Shaft ( ) | |
18 | 09248-12005 Plug ( ) | Plug ( ) | |
19 | 51122-90J00 Cover, Mount Cas ( ) | Cover, Mount Cas ( ) | |
20 | 51123-90J01 Gasket, Mount Ca ( ) | Gasket, Mount Ca ( ) | |
21 | 01550-0825A Bolt ( ) | Bolt ( ) | |
22 | 54123-90J00 Plate, Upper Mou ( ) | Plate, Upper Mou ( ) | |
23-1 | 54112-90J20 Bolt, Upper Moun ( ) | Bolt, Upper Moun ( ) | |
23-2 | 54112-90J21 Bolt, Upper Moun (model:08~09 ) | Bolt, Upper Moun (model:08~09 ) | |
24 | 54130-90J40 Mount Comp, Uppe ( ) | Mount Comp, Uppe ( ) | |
25 | 09159-12014 Nut ( ) | Nut ( ) | |
26 | 54114-90J01 Washer, Lwr Mt B ( ) | Washer, Lwr Mt B ( ) | |
27 | 54125-90J10 Mount, Upper Thr ( ) | Mount, Upper Thr ( ) | |
28 | 54148-90J10-0EP Cover, Upper Mou ( ) | Cover, Upper Mou ( ) | |
29 | 09116-10139 Bolt, Drive Shaf ( ) | Bolt, Drive Shaf ( ) | |
31 | 09160-12110 Washer (12.5x22x3) ( ) | Washer (12.5x22x3) ( ) | |
32 | 08331-41359 08331-41358 ( ) | 08331-41358 ( ) |
