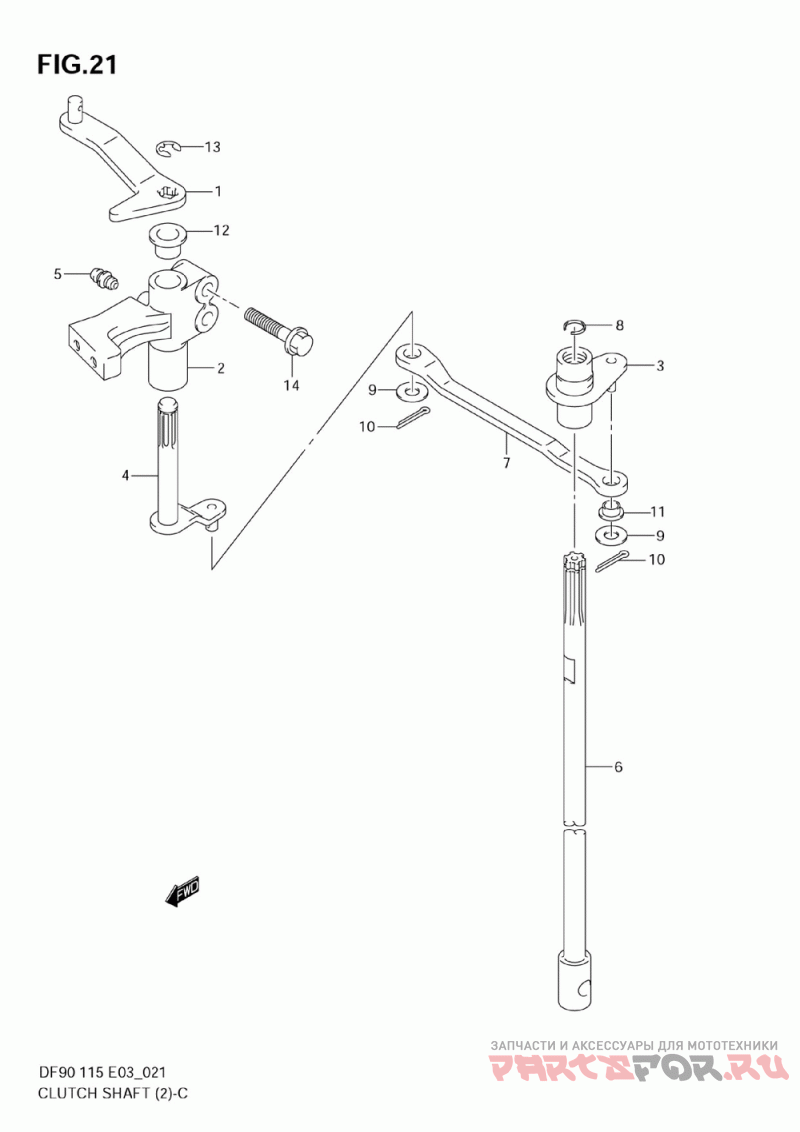

Ch shaft (df90t:372297~,df115t:373696~)
Suzuki Marine DF100/DF115
| # | oem код | название | цена |
|---|---|---|---|
1 | 21110-90J02 Деталь Lever, Clutch ( ) | Деталь Lever, Clutch ( ) | |
2 | 21151-90J01 Деталь Holder, Clutch L ( ) | Деталь Holder, Clutch L ( ) | |
3 | 21210-90J10 Деталь Shaft Comp, Clut ( ) | Деталь Shaft Comp, Clut ( ) | |
4 | 21230-90J00 Деталь Arm, Clutch Shaf ( ) | Деталь Arm, Clutch Shaf ( ) | |
5 | 22511-99011 Деталь Nipple, Grease ( ) | Деталь Nipple, Grease ( ) | |
6-1 | 23111-90J02 Деталь Rod, Clutch (l) ( ) | Деталь Rod, Clutch (l) ( ) | |
6-2 | 23111-90J12 Деталь Rod, Clutch (x) ( ) | Деталь Rod, Clutch (x) ( ) | |
7 | 23115-90J10 Деталь Link, Clutch Lev ( ) | Деталь Link, Clutch Lev ( ) | |
8 | 23117-90J00 Деталь Ring, Clutch Rod ( ) | Деталь Ring, Clutch Rod ( ) | |
9 | 09160-06094 Деталь Washer (6.5x15x1.5) ( ) | Деталь Washer (6.5x15x1.5) ( ) | |
10 | 09204-01006 Деталь Pin ( ) | Деталь Pin ( ) | |
11 | 09306-06004 Деталь Bush, Clutch Lever Link ( ) | Деталь Bush, Clutch Lever Link ( ) | |
12 | 09306-10001 Деталь Bush ( ) | Деталь Bush ( ) | |
13 | 09383-08004 Деталь E Ring ( ) | Деталь E Ring ( ) | |
14 | 01550-06307 Деталь Bolt ( Df115t:681518~, Df115z, Df100t ) | Деталь Bolt ( Df115t:681518~, Df115z, Df100t ) |
