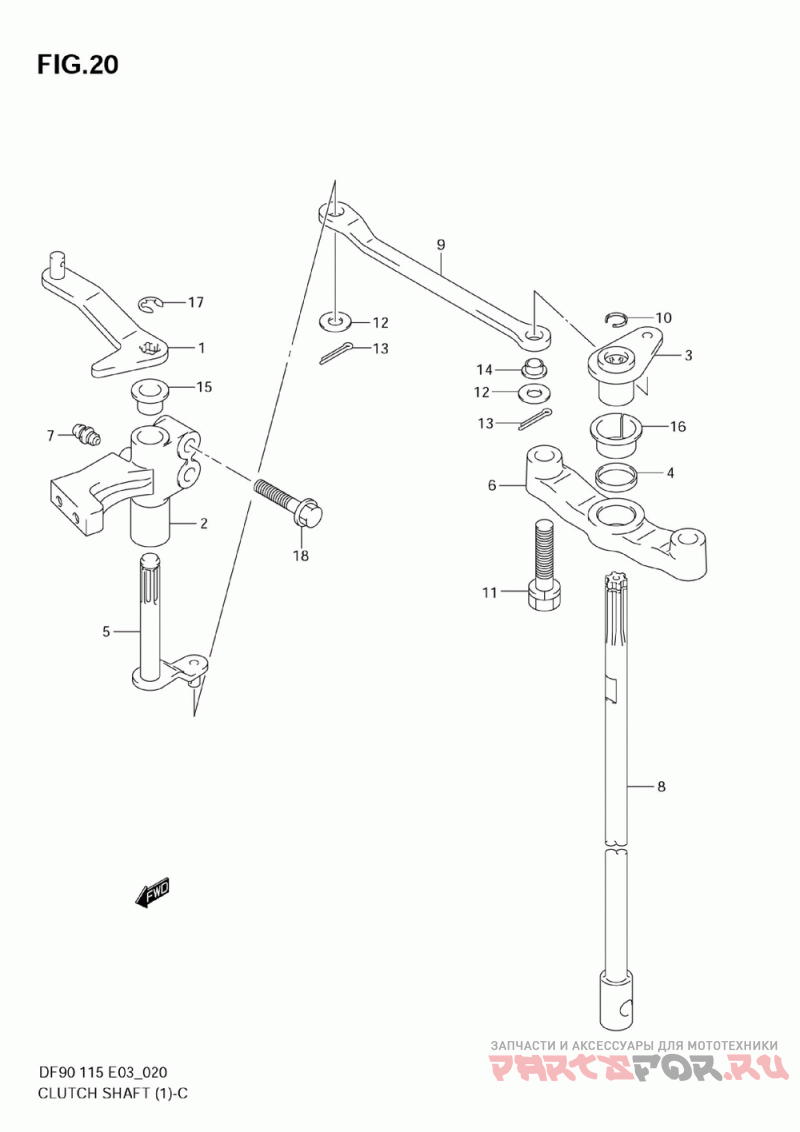

Вал сцепления
Suzuki Marine DF100/DF115
| # | oem код | название | цена |
|---|---|---|---|
1-1 | 21110-90J01 Lever, Clutch (->21110-90j02 Used W/21151-90j01 ) | Lever, Clutch (->21110-90j02 Used W/21151-90j01 ) | |
1-2 | 21110-90J02 Lever, Clutch (df90:251530~ Df115:252817~ ) | Lever, Clutch (df90:251530~ Df115:252817~ ) | |
2-1 | 21151-90J00 Holder, Clutch L (->21151-90j01 Used W/21110-90j02 ) | Holder, Clutch L (->21151-90j01 Used W/21110-90j02 ) | |
2-2 | 21151-90J01 Holder, Clutch L (df90:251530~ Df115:252817~ ) | Holder, Clutch L (df90:251530~ Df115:252817~ ) | |
3 | 21210-90J01 Shaft, Clutch ( ) | Shaft, Clutch ( ) | |
4 | 21221-90J00 Bush, Clutch Sha ( ) | Bush, Clutch Sha ( ) | |
5 | 21230-90J00 Arm, Clutch Shaf ( ) | Arm, Clutch Shaf ( ) | |
6 | 21311-90J00 Holder, Clutch S ( ) | Holder, Clutch S ( ) | |
7 | 22511-99011 Nipple, Grease ( ) | Nipple, Grease ( ) | |
8-1 | 23111-90J02 Rod, Clutch (l) ( ) | Rod, Clutch (l) ( ) | |
8-2 | 23111-90J12 Rod, Clutch (x) ( ) | Rod, Clutch (x) ( ) | |
9 | 23115-90J00 Link, Clutch Lev ( ) | Link, Clutch Lev ( ) | |
10 | 23117-90J00 Ring, Clutch Rod ( ) | Ring, Clutch Rod ( ) | |
11 | 09117-08071 .bolt (8x35) ( ) | .bolt (8x35) ( ) | |
12 | 09160-06094 Washer (6.5x15x1.5) ( ) | Washer (6.5x15x1.5) ( ) | |
13 | 09204-01006 Pin ( ) | Pin ( ) | |
14 | 09306-06004 Bush, Clutch Lever Link ( ) | Bush, Clutch Lever Link ( ) | |
15 | 09306-10001 Bush ( ) | Bush ( ) | |
16 | 09306-16004 Bush, Clutch Shaft ( ) | Bush, Clutch Shaft ( ) | |
17 | 09383-08004 E Ring ( ) | E Ring ( ) | |
18 | 01550-06307 Bolt ( Df115t:681518~, Df115z, Df100t ) | Bolt ( Df115t:681518~, Df115z, Df100t ) |
