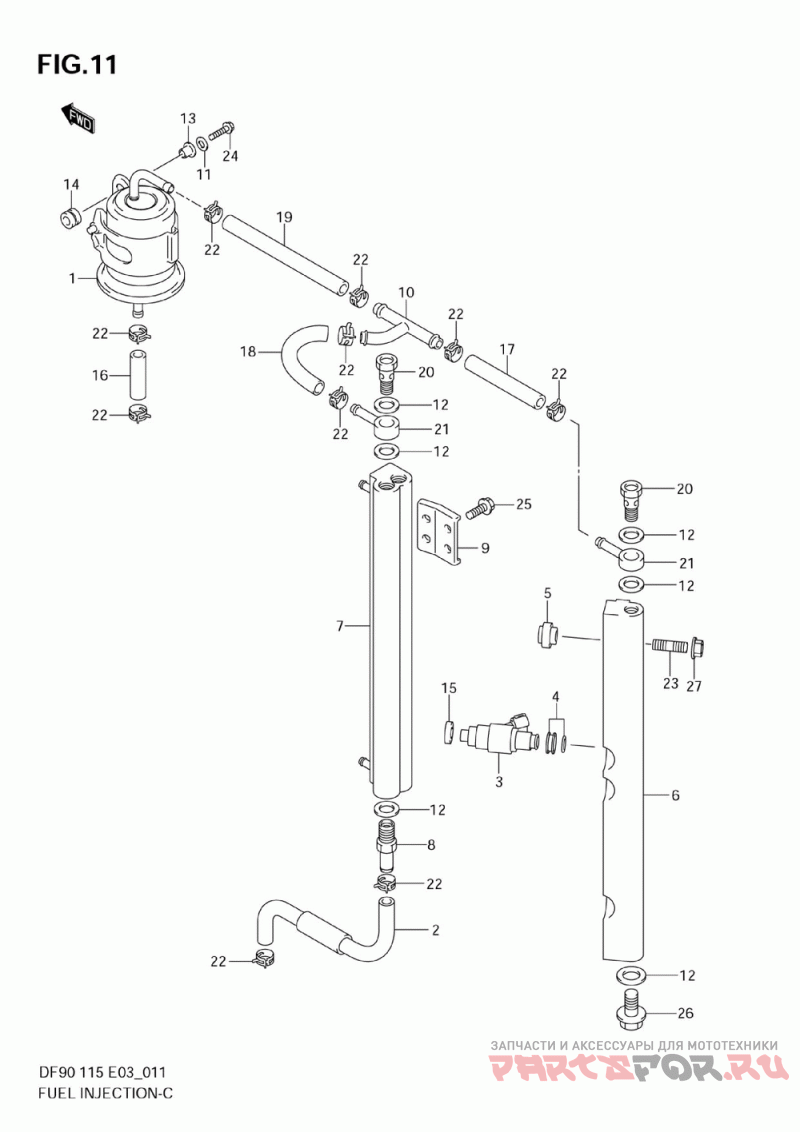

Топливный инжектор
Suzuki Marine DF100/DF115
| # | oem код | название | цена |
|---|---|---|---|
1 | 15440-90J00 Filter, Fuel ( ) | Filter, Fuel ( ) | |
2 | 15680-90J00 Hose Assy, Fuel ( ) | Hose Assy, Fuel ( ) | |
3 | 15710-65D00 Injector Assy, F ( ) | Injector Assy, F ( ) | |
4 | 15716-65DT0 Grommet Set, Fue ( ) | Grommet Set, Fue ( ) | |
5 | 15735-58B00 Insulator, Deliv ( ) | Insulator, Deliv ( ) | |
6 | 15751-90J03 Pipe, Delivery ( ) | Pipe, Delivery ( ) | |
7 | 15770-90J02 Cooler Comp, Fue ( ) | Cooler Comp, Fue ( ) | |
8 | 15773-90J00 Union, Fuel Hose ( ) | Union, Fuel Hose ( ) | |
9 | 15775-90J00 Bracket, Fuel Co ( ) | Bracket, Fuel Co ( ) | |
10 | 15830-99E00 Union, 3 Way ( ) | Union, 3 Way ( ) | |
11 | 09160-06084 Washer (6.5x18x1.6) (~model:05 ) | Washer (6.5x18x1.6) (~model:05 ) | |
12 | 09168-12013 Gasket ( ) | Gasket ( ) | |
13 | 09169-06062 Washer ( ) | Washer ( ) | |
14 | 09320-08501 Cushion ( ) | Cushion ( ) | |
15 | 09320-08062 Cushion ( ) | Cushion ( ) | |
16 | 09356-75137-600 Hose (separator To Filter) (l:600->50 ) | Hose (separator To Filter) (l:600->50 ) | |
20 | 09360-12008 Union ( ) | Union ( ) | |
21 | 09363-08004 Union, Fuel Filt ( ) | Union, Fuel Filt ( ) | |
22 | 09401-11425 Clip ( ) | Clip ( ) | |
23 | 01421-08357 Bolt, Stud ( ) | Bolt, Stud ( ) | |
24-1 | 01500-06257 Bolt ( ) | Bolt ( ) | |
24-2 | 09116-06202 Bolt (w/washer) (model:06~09 ) | Bolt (w/washer) (model:06~09 ) | |
25 | 01550-06167 .bolt, Remocon Cable Holder ( ) | .bolt, Remocon Cable Holder ( ) | |
26 | 01550-12167 Bolt ( ) | Bolt ( ) | |
27 | 08316-10087 ..nut ( Df115z, Df100t ) | ..nut ( Df115z, Df100t ) |
