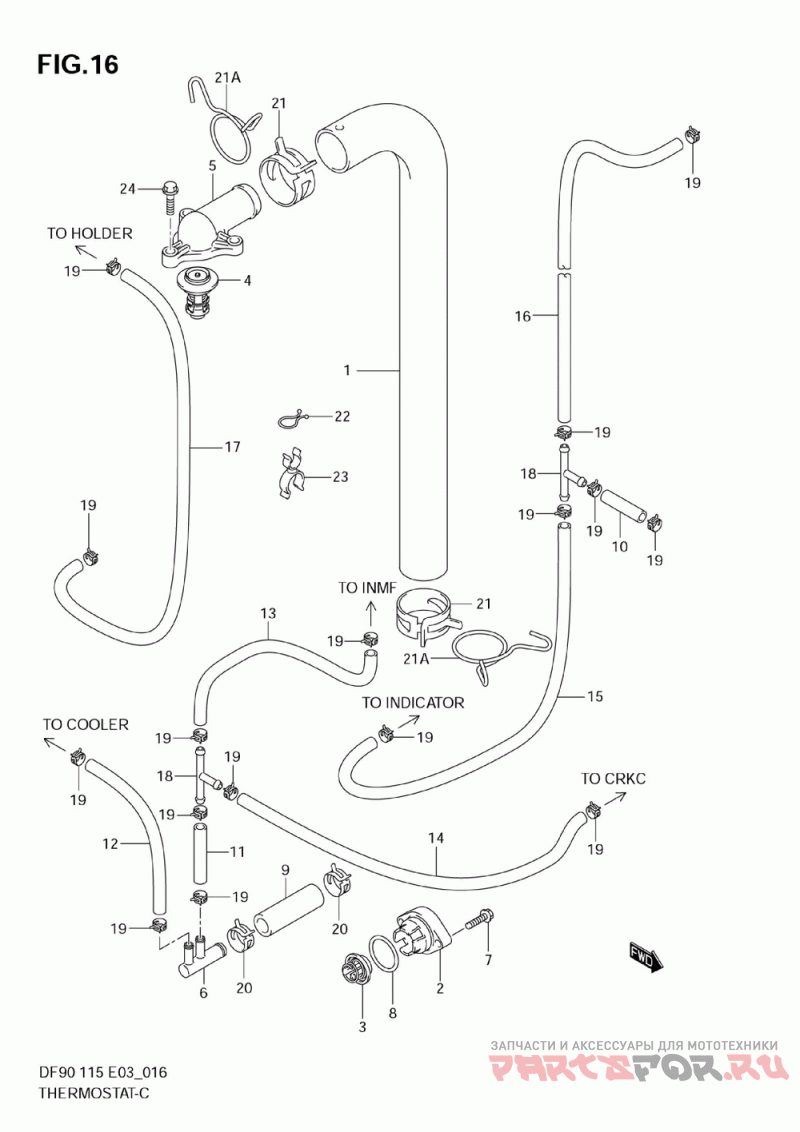

Термостат
Suzuki Marine DF100/DF115
| # | oem код | название | цена |
|---|---|---|---|
1 | 11196-90J00 Hose, Water Retu ( ) | Hose, Water Retu ( ) | |
2 | 17611-90J00-0EP Cover, Wtr Press ( ) | Cover, Wtr Press ( ) | |
3 | 17660-90J00 Valve Comp, Wate ( ) | Valve Comp, Wate ( ) | |
4-1 | 17670-90J00 Thermostat, Wate ( ) | Thermostat, Wate ( ) | |
4-2 | 17670-90J10 Thermostat (opt ) | Thermostat (opt ) | |
5 | 17681-90J01 Cover, Thermosta ( ) | Cover, Thermosta ( ) | |
6 | 17711-90J00 3way, Water Hose ( ) | 3way, Water Hose ( ) | |
7 | 09116-06121 .bolt (6x25) ( ) | .bolt (6x25) ( ) | |
8 | 09280-26006 O Ring (d:3.1, Id:26.4) ( ) | O Ring (d:3.1, Id:26.4) ( ) | |
9 | 09352-11153-600 Hose (holder To 3 Way) (l:600->50 ) | Hose (holder To 3 Way) (l:600->50 ) | |
10 | 09352-50903-600 .hose (l:600->70 Df100 ) | .hose (l:600->70 Df100 ) | |
17 | 09352-50903-00B Hose, Water (cooler To Holder (l:2000->690 ) | Hose, Water (cooler To Holder (l:2000->690 ) | |
18 | 09367-06002 3 Way, Water Hose ( ) | 3 Way, Water Hose ( ) | |
19 | 09401-08413 Clip ( ) | Clip ( ) | |
20 | 17838-90J00 Clip ( ) | Clip ( ) | |
21A | 09401-31201 Clip (model:03, 04 ) | Clip (model:03, 04 ) | |
22 | 09408-00024 Clip ( ) | Clip ( ) | |
23-1 | 09408-00056 Clip ( ) | Clip ( ) | |
23-2 | 09408-00069 Clip (model:03~09 ) | Clip (model:03~09 ) | |
24 | 01550-06257 ..bolt ( ) | ..bolt ( ) |
