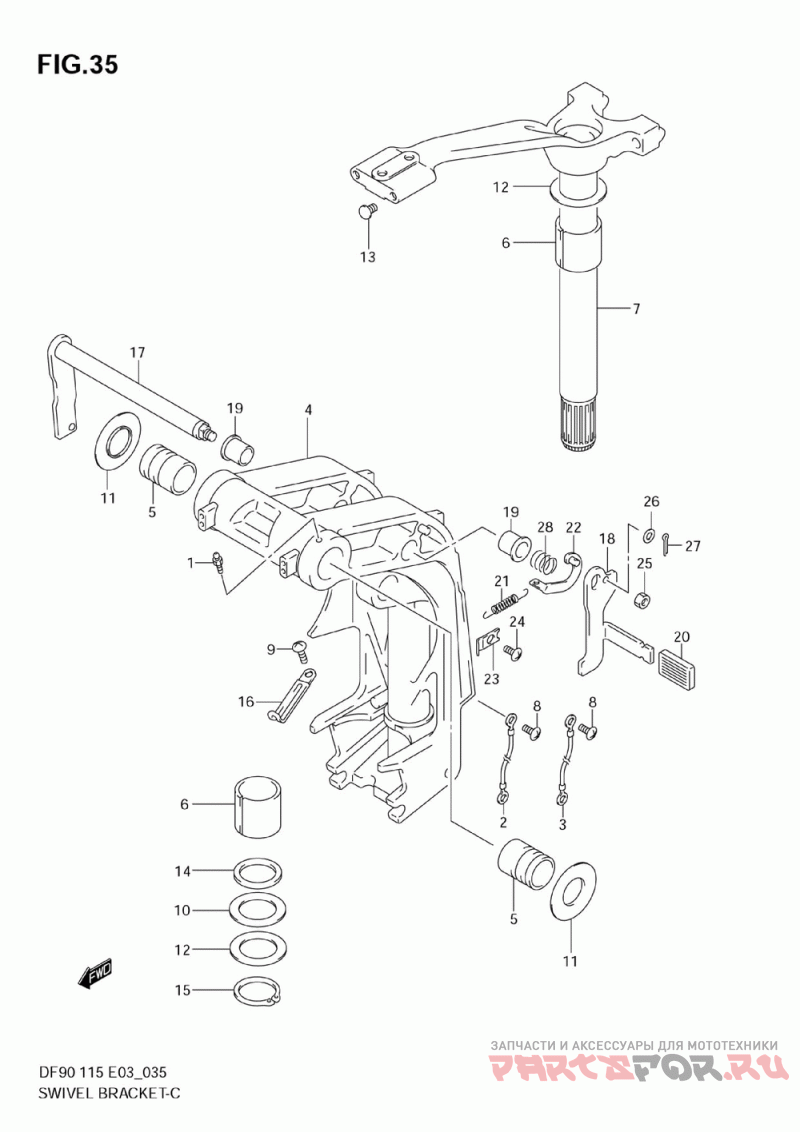

Поворотный кронштейн
Suzuki Marine DF100/DF115
| # | oem код | название | цена |
|---|---|---|---|
1-1 | 22511-99011 Nipple, Grease (type:x Df100 ) | Nipple, Grease (type:x Df100 ) | |
2 | 36894-95201 Lead, Clamp To S ( ) | Lead, Clamp To S ( ) | |
3 | 36894-87D00 Lead, Clamp To S ( ) | Lead, Clamp To S ( ) | |
4-1 | 43111-99E31-0EP Bracket, Swivel( (type:l ) | Bracket, Swivel( (type:l ) | |
4-2 | 43111-99E40-0EP Bracket, Swivel (type:l Model:04~06 ) | Bracket, Swivel (type:l Model:04~06 ) | |
4-3 | 43111-90J20-0EP Bracket, Swivel( (type:l Used W/22511-99010 ) | Bracket, Swivel( (type:l Used W/22511-99010 ) | |
4-4 | 43111-90J21-0EP Bracket, Swivel( (type:l Df100 ) | Bracket, Swivel( (type:l Df100 ) | |
4-5 | 43111-90J10-0EP Bracket, Swivel (type:x ) | Bracket, Swivel (type:x ) | |
4-7 | 43111-90J30-0EP Bracket, Swivel (type:x Df100 ) | Bracket, Swivel (type:x Df100 ) | |
5-1 | 43211-87D00 Bush, Clamp Shaf ( ) | Bush, Clamp Shaf ( ) | |
5-2 | 43211-93J00 Bushing, Swivel (df90:680686~ Df100 ) | Bushing, Swivel (df90:680686~ Df100 ) | |
6 | 43711-97E00 Bush, Steering ( ) | Bush, Steering ( ) | |
7-1 | 43750-90J00-0EP Bracket, Steerin (type:l ) | Bracket, Steerin (type:l ) | |
7-2 | 43750-90J22-0EP Bracket, Steeri (type:l Df100 ) | Bracket, Steeri (type:l Df100 ) | |
7-3 | 43750-90J11-0EP Bracket, Steerin (type:x ) | Bracket, Steerin (type:x ) | |
7-4 | 43750-90J32-0EP Bracket, Steerin (type:x Df100 ) | Bracket, Steerin (type:x Df100 ) | |
8 | 29125-93J10 Screw (<-09125-05050 ) | Screw (<-09125-05050 ) | |
9 | 09125-06063 Screw (6x10) ( ) | Screw (6x10) ( ) | |
10 | 09160-39001 Washer (39.5x64x1.0) ( ) | Washer (39.5x64x1.0) ( ) | |
11 | 09169-28003 Washer ( ) | Washer ( ) | |
12 | 09181-39001 Shim ( ) | Shim ( ) | |
13 | 09250-10001 Plug ( ) | Plug ( ) | |
14 | 09282-39001 Oil Seal 39x51x ( ) | Oil Seal 39x51x ( ) | |
15 | 09380-38003 Circlip ( ) | Circlip ( ) | |
16 | 29404-93J10 Clamp (<-09404-06432 ) | Clamp (<-09404-06432 ) | |
17 | 41220-95E13 Lever Comp, Tilt ( ) | Lever Comp, Tilt ( ) | |
18 | 41221-95E40 Lever, Tilt Lock ( ) | Lever, Tilt Lock ( ) | |
19 | 41224-95E01 Bush, Tilt Stop ( ) | Bush, Tilt Stop ( ) | |
20 | 41225-94400 Rubber Lock Arm ( ) | Rubber Lock Arm ( ) | |
21 | 41228-90J00 Spring, Tilt Loc ( ) | Spring, Tilt Loc ( ) | |
22 | 41230-95E00 Link, Tilt Lock ( ) | Link, Tilt Lock ( ) | |
23 | 41233-95E10 Bracket, Tilt Lo ( ) | Bracket, Tilt Lo ( ) | |
25 | 09140-10032 Nut ( ) | Nut ( ) | |
26 | 09160-06082 .washer, Clutch Lever ( ) | .washer, Clutch Lever ( ) | |
27 | 09204-01006 Pin ( ) | Pin ( ) | |
28 | 09440-19028 Spring ( ) | Spring ( ) |
