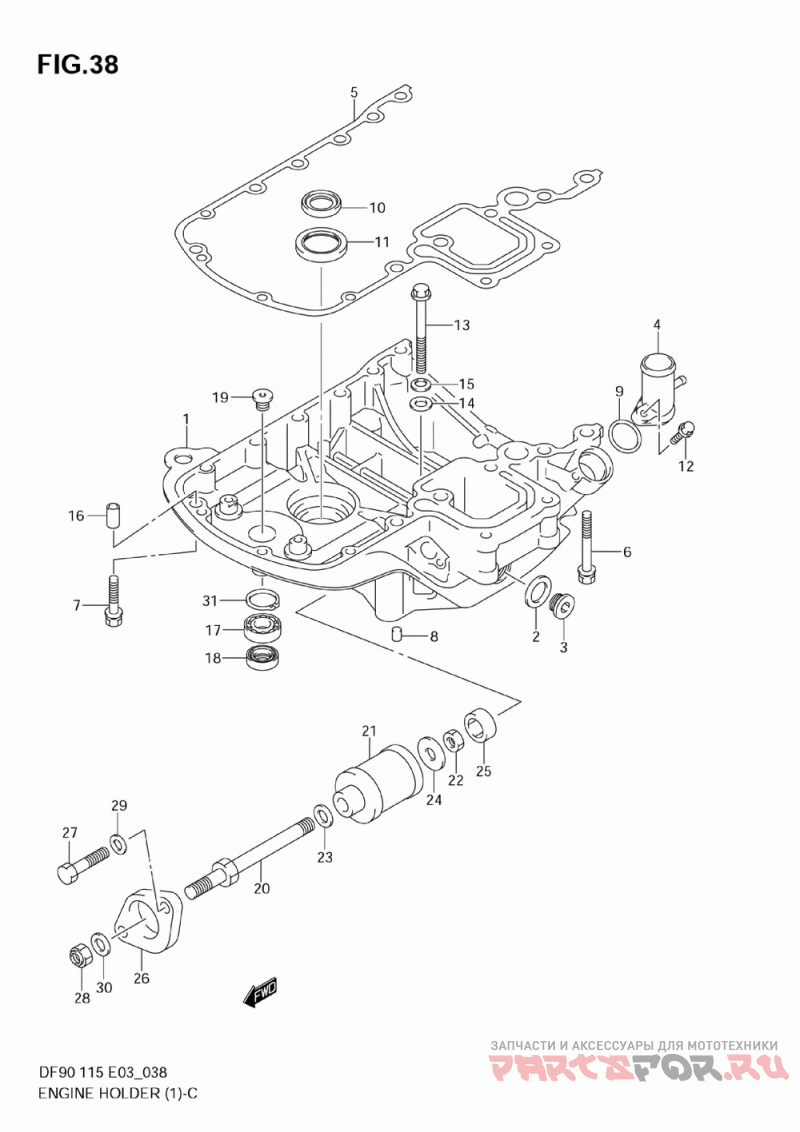

Основание двигателя
Suzuki Marine DF100/DF115
| # | oem код | название | цена |
|---|---|---|---|
1-1 | 51110-90832-0EP Holder & Cl Sft (inc.no.2,3,10,11, (51110-90820-0ep) ) | Holder & Cl Sft (inc.no.2,3,10,11, (51110-90820-0ep) ) | |
1-2 | 51110-90822-0EP Holder Set, Engi (df90:372297~ Fig.5 No.7 ) | Holder Set, Engi (df90:372297~ Fig.5 No.7 ) | |
2 | 09160-18031 .gasket (18.5x28x2.6) ( ) | .gasket (18.5x28x2.6) ( ) | |
3-1 | 09248-18006 .plug ( ) | .plug ( ) | |
3-2 | 09248-18010 .plug (df90:511126~ Df115:512041~ ) | .plug (df90:511126~ Df115:512041~ ) | |
4 | 51115-90J00 Union, Water Ret ( ) | Union, Water Ret ( ) | |
5 | 51211-90J10 Gasket, Engine H ( ) | Gasket, Engine H ( ) | |
6 | 09116-08119 Bolt (8x70) ( ) | Bolt (8x70) ( ) | |
7 | 09116-08128 Bolt, 8x40 (<-09116-08098 ) | Bolt, 8x40 (<-09116-08098 ) | |
8 | 09206-08001 Pin ( ) | Pin ( ) | |
9 | 09280-26006 O Ring (d:3.1, Id:26.4) ( ) | O Ring (d:3.1, Id:26.4) ( ) | |
10 | 09282-24003 Oil Seal ( ) | Oil Seal ( ) | |
11 | 09283-32044 Seal, Oil ( ) | Seal, Oil ( ) | |
12 | 01550-06257 ..bolt ( ) | ..bolt ( ) | |
13-1 | 01550-08857 Bolt ( ) | Bolt ( ) | |
13-2 | 01550-0890B Bolt (df90:251396~ Df115t:681518~, Df115z, Df100t ) | Bolt (df90:251396~ Df115t:681518~, Df115z, Df100t ) | |
14 | 09160-08039 Washer (df90:251396~ Df115:252549~ ) | Washer (df90:251396~ Df115:252549~ ) | |
15 | 09164-08020 Washer, Wave (df90:251396~ Df115:252549~ ) | Washer, Wave (df90:251396~ Df115:252549~ ) | |
16 | 04211-11129 .pin ( ) | .pin ( ) | |
17 | 09262-17019 Bearing, Clutch Shaft (df90:372297~ Df115:373696~ ) | Bearing, Clutch Shaft (df90:372297~ Df115:373696~ ) | |
18 | 09289-18001 Seal, Clutch Shaft (df90:372297~ Df115:373696~ ) | Seal, Clutch Shaft (df90:372297~ Df115:373696~ ) | |
19 | 09248-12005 Plug (df90:372297~ Df115:373696~ ) | Plug (df90:372297~ Df115:373696~ ) | |
20-1 | 54112-90J01 (->54100-90803 ) | (->54100-90803 ) | |
20-2 | 54112-90J10 Bolt, Upper Moun (df90:251596~ <-54112-90j02 ) | Bolt, Upper Moun (df90:251596~ <-54112-90j02 ) | |
21-1 | 54100-90803 Mount Set, Upper (df90:~251395 Df115:~252548 ) | Mount Set, Upper (df90:~251395 Df115:~252548 ) | |
21-2 | 54100-90810 Mount Set, Upper (df90:251396~ Df115:252549~ ) | Mount Set, Upper (df90:251396~ Df115:252549~ ) | |
21-3 | 54130-90J31 Mount, Upper (model:03~06 ) | Mount, Upper (model:03~06 ) | |
22 | 09140-12029 Nut ( ) | Nut ( ) | |
23 | 54113-90J00 Washer (12.5x24x2.5) (<-09160-12099 ) | Washer (12.5x24x2.5) (<-09160-12099 ) | |
24-1 | 09160-12097 Washer (12x32x3.0) ( ) | Washer (12x32x3.0) ( ) | |
24-2 | 09160-12110 Washer (12.5x22x3) (model:03~06 <-09160-12101 ) | Washer (12.5x22x3) (model:03~06 <-09160-12101 ) | |
25 | 54125-90J00 Mount, Upper Thr ( ) | Mount, Upper Thr ( ) | |
26 | 54148-90J01-0EP Cover, Upper Mou ( ) | Cover, Upper Mou ( ) | |
27-1 | 09100-10157 Bolt ( ) | Bolt ( ) | |
27-2 | 09116-10139 Bolt, Drive Shaf (model:06 ) | Bolt, Drive Shaf (model:06 ) | |
28 | 09159-12014 Nut ( ) | Nut ( ) | |
29 | 09160-10082 Washer (model:01~05 ) | Washer (model:01~05 ) | |
30 | 09164-13007 Washer (12.5x22x2.5) ( ) | Washer (12.5x22x2.5) ( ) | |
31 | 08331-41359 08331-41358 (df90:510374~ Df115:510603~ ) | 08331-41358 (df90:510374~ Df115:510603~ ) | |
26 | 54148-90J10-0EP Cover, Upper Mou ( ) | Cover, Upper Mou ( ) |
