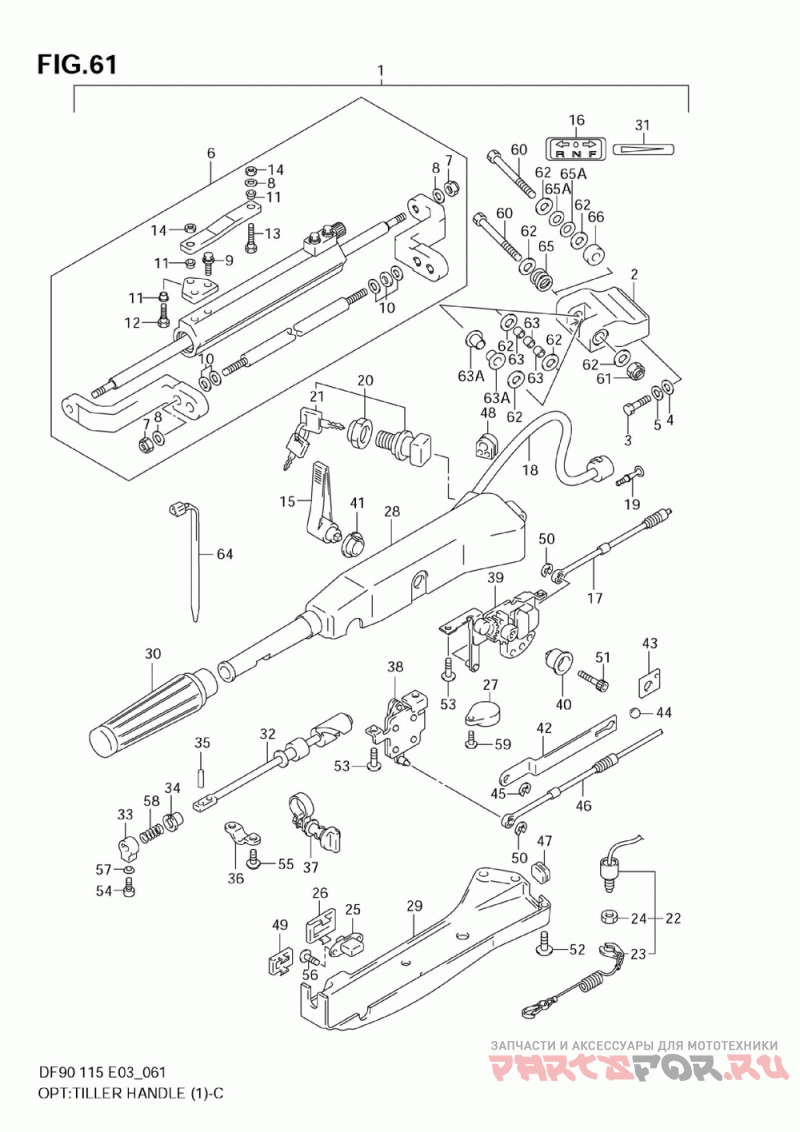

Опции - рукоятка румпеля (для моделей 2001-2003 года)
Suzuki Marine DF100/DF115
| # | oem код | название | цена |
|---|---|---|---|
1 | 63002-90J05-0EP Tiller Assy Df9 (->63002-90j02-0ep ) | Tiller Assy Df9 (->63002-90j02-0ep ) | |
2-2 | 43761-90J02-0EP Bracket, Tiller (model:03 (black) ) | Bracket, Tiller (model:03 (black) ) | |
3 | 43769-90J00 Bolt ( ) | Bolt ( ) | |
4 | 09160-12066 .washer (12.5x22x2.5) ( ) | .washer (12.5x22x2.5) ( ) | |
5 | 09162-12005 .washer, Lock ( ) | .washer, Lock ( ) | |
6 | 43770-90J00 Damper Assy, Ste ( ) | Damper Assy, Ste ( ) | |
7 | 43778-90J00 Nut, Rod ( ) | Nut, Rod ( ) | |
8 | 43779-90J00 Washer, Rod ( ) | Washer, Rod ( ) | |
9 | 67725-90J00 Bolt, Drag Link ( ) | Bolt, Drag Link ( ) | |
10 | 43781-90J00 Spacer & Washer ( ) | Spacer & Washer ( ) | |
11 | 67734-90J00 Bush, Drag Link ( ) | Bush, Drag Link ( ) | |
12 | 67725-90J10 Bolt, Drag Link ( ) | Bolt, Drag Link ( ) | |
13 | 67725-90J20 Bolt, Drag Link ( ) | Bolt, Drag Link ( ) | |
14 | 67726-90J00 Nut, Drag Link ( ) | Nut, Drag Link ( ) | |
15 | 21111-87J10-0EP Lever, Shift(bla ( ) | Lever, Shift(bla ( ) | |
16 | 21131-96010 Mark, Clutch Shi ( ) | Mark, Clutch Shi ( ) | |
17 | 23230-90J00 Cable, Shift ( ) | Cable, Shift ( ) | |
18 | 36620-90J00 Wire Assy, Handl ( ) | Wire Assy, Handl ( ) | |
19 | 36615-96300 Terminal ( ) | Terminal ( ) | |
20 | 37110-87J20 Switch Assy, Ign (->37110-87j20 ) | Switch Assy, Ign (->37110-87j20 ) | |
21-1 | 37141-92E00 Key (11) ( ) | Key (11) ( ) | |
21-2 | 37141-92E10 Key (12) ( ) | Key (12) ( ) | |
21-3 | 37141-92E20 Key (13) ( ) | Key (13) ( ) | |
21-4 | 37141-92E30 Key (14) ( ) | Key (14) ( ) | |
21-5 | 37141-92E40 Key (15) ( ) | Key (15) ( ) | |
21-6 | 37141-92E50 Key (16) ( ) | Key (16) ( ) | |
21-7 | 37141-92E60 Key (17) ( ) | Key (17) ( ) | |
21-8 | 37141-92E70 Key (18) ( ) | Key (18) ( ) | |
21-9 | 37141-92E80 Key (19) ( ) | Key (19) ( ) | |
21-10 | 37141-92E90 Key (20) ( Refer To Fig.62(j-5) For Model:04~09 ) | Key (20) ( Refer To Fig.62(j-5) For Model:04~09 ) | |
22 | 37820-87J01 Switch Assy, Eme ( ) | Switch Assy, Eme ( ) | |
23 | 37823-92E01 Plate Assy, Emer ( ) | Plate Assy, Emer ( ) | |
24 | 37826-92E00 Nut ( ) | Nut ( ) | |
25 | 37860-94610 Switch, Trim ( ) | Switch, Trim ( ) | |
26 | 37869-95590 Cap, Trim Sw ( ) | Cap, Trim Sw ( ) | |
27 | 38500-92X50 Buzzer Set, Warn ( ) | Buzzer Set, Warn ( ) | |
28 | 63111-87J10-0EP Housing, Tiller ( ) | Housing, Tiller ( ) | |
29 | 63121-87J02 Cover, Under ( ) | Cover, Under ( ) | |
30 | 63210-93E30 Grip Comp, Handl ( ) | Grip Comp, Handl ( ) | |
31 | 63215-93110 Mark, Handle Gri ( ) | Mark, Handle Gri ( ) | |
32 | 63221-87J00 Rod, Handle ( ) | Rod, Handle ( ) | |
33 | 63223-92D00 Stopper, Handle ( ) | Stopper, Handle ( ) | |
34 | 63225-93200 Bush ( ) | Bush ( ) | |
35 | 63227-93200 Handle Rod Pin ( ) | Handle Rod Pin ( ) | |
36 | 63235-87J00 Plate, Handle ( ) | Plate, Handle ( ) | |
37 | 63240-87J00 Adjuster, Handle ( ) | Adjuster, Handle ( ) | |
38 | 63250-87J01 Arm Assy, Thrott ( ) | Arm Assy, Thrott ( ) | |
39 | 63260-87J02 Gear Assy, Shift ( ) | Gear Assy, Shift ( ) | |
40 | 63261-87J00 Spacer, Clutch L ( ) | Spacer, Clutch L ( ) | |
41 | 63262-87J00 Bush, Clutch Lev ( ) | Bush, Clutch Lev ( ) | |
42 | 63271-87J00 Plate, Lock ( ) | Plate, Lock ( ) | |
43 | 63272-87J00 Plate, Ball Guid ( ) | Plate, Ball Guid ( ) | |
44 | 63273-87J00 Ball ( ) | Ball ( ) | |
45 | 63274-87J00 E Ring ( ) | E Ring ( ) | |
46 | 63610-90J00 Cable, Throttle ( ) | Cable, Throttle ( ) | |
47 | 63625-99E00 Frommet, Throt ( ) | Frommet, Throt ( ) | |
48 | 63626-99E01 Grommet, Wire Ha ( ) | Grommet, Wire Ha ( ) | |
49 | 67263-99E00 Cover, Trim Sw ( ) | Cover, Trim Sw ( ) | |
50 | 67292-87J00 E-ring ( ) | E-ring ( ) | |
51 | 09106-08099 .bolt (8x50) ( ) | .bolt (8x50) ( ) | |
52 | 09125-05047 .screw (5x14) ( ) | .screw (5x14) ( ) | |
53 | 09125-06069 .bolt (6x12) ( ) | .bolt (6x12) ( ) | |
54 | 09126-06015 .screw, Handle Grip (6x23) ( ) | .screw, Handle Grip (6x23) ( ) | |
55 | 09136-05008 .screw (5x12) ( ) | .screw (5x12) ( ) | |
56 | 09139-02003 .screw (2x6) ( ) | .screw (2x6) ( ) | |
57 | 09163-06001 .washer, Handle Grip Screw ( ) | .washer, Handle Grip Screw ( ) | |
58 | 09440-12027 Spring, Handle L ( ) | Spring, Handle L ( ) | |
59 | 02142-05207 .screw ( ) | .screw ( ) | |
60 | 09100-10264 Bolt ( ) | Bolt ( ) | |
61 | 09159-10050 Nut ( ) | Nut ( ) | |
62-1 | 09160-10097 .washer (10.5x22x2.5) (for 63002-90j00-0ep ) | .washer (10.5x22x2.5) (for 63002-90j00-0ep ) | |
62-2 | 09160-10114 .washer (10.5x22x1.5) (for 63002-90j01-0ep ) | .washer (10.5x22x1.5) (for 63002-90j01-0ep ) | |
63 | 09306-10009 Bush Handle (for 63002-90j00-0ep ) | Bush Handle (for 63002-90j00-0ep ) | |
63A | 09306-10020 .bush (for 63002-90j01-0ep ) | .bush (for 63002-90j01-0ep ) | |
64 | 09407-14403 .clamp, Battery Cable ( ) | .clamp, Battery Cable ( ) | |
65 | 09440-22008 Spring (for 63002-90j00-0ep ) | Spring (for 63002-90j00-0ep ) | |
65A | 09164-10013 .washer, Wave (for 63002-90j01-0ep ) | .washer, Wave (for 63002-90j01-0ep ) | |
66 | 43768-90J01 Spacer, Tiller H (for 63002-90j01-0ep ) | Spacer, Tiller H (for 63002-90j01-0ep ) |
