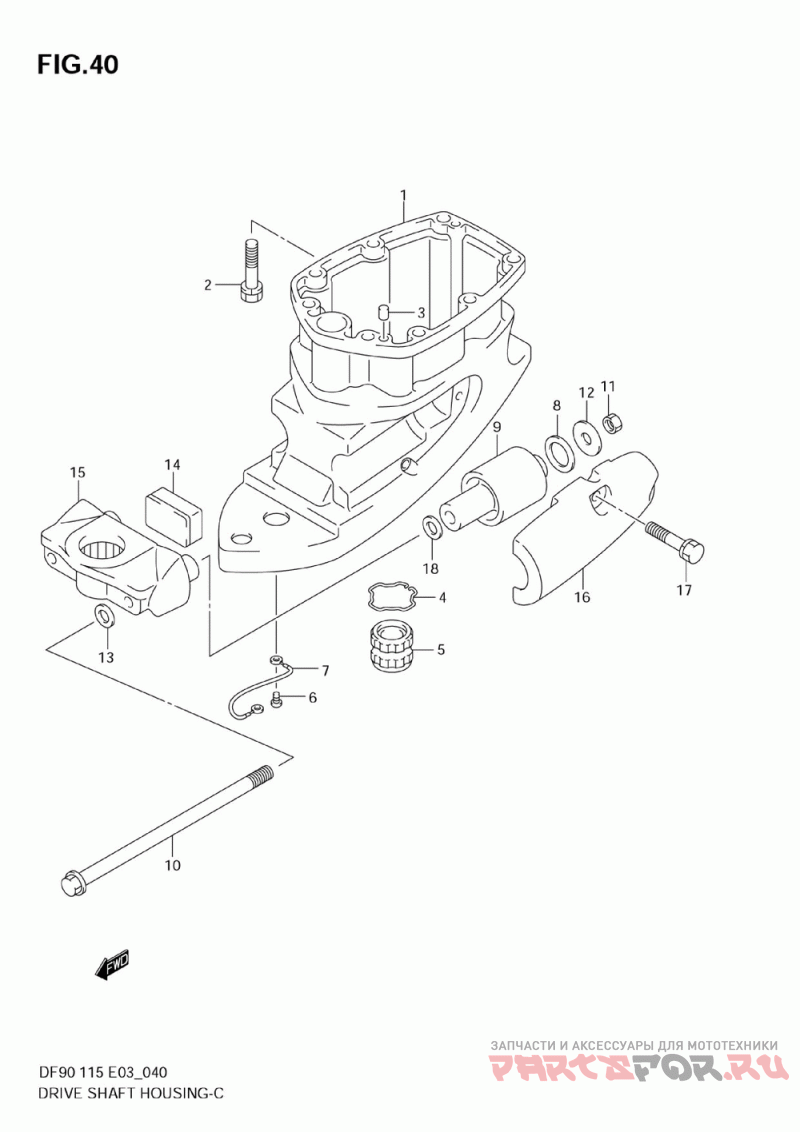

Корпус ведущего вала (нога)
Suzuki Marine DF100/DF115
| # | oem код | название | цена |
|---|---|---|---|
1-1 | 52111-90J02-0EP Деталь Housing, Drive S (type:l ) | Деталь Housing, Drive S (type:l ) | |
1-2 | 52111-90J12-0EP Деталь Housing, Drive S (type:x ) | Деталь Housing, Drive S (type:x ) | |
2-1 | 09117-10058 Деталь Bolt (10x45) ( ) | Деталь Bolt (10x45) ( ) | |
3 | 09202-08006 Деталь Pin ( ) | Деталь Pin ( ) | |
4 | 09387-45001 Деталь Set Ring (sus) (type:x ) | Деталь Set Ring (sus) (type:x ) | |
5 | 57130-94501 Деталь Bush, Drive Shaf (type:x ) | Деталь Bush, Drive Shaf (type:x ) | |
6 | 09125-06063 Деталь Screw (6x10) ( ) | Деталь Screw (6x10) ( ) | |
7-1 | 36895-87D01 Деталь Lead, Swivel To ( ) | Деталь Lead, Swivel To ( ) | |
7-2 | 36895-87D10 Деталь Lead Swivel (df90:680686~ Df100 ) | Деталь Lead Swivel (df90:680686~ Df100 ) | |
8 | 54121-87D00 Деталь Stopper, Upper T ( ) | Деталь Stopper, Upper T ( ) | |
9 | 54160-90J00 Деталь Mount, Lower ( ) | Деталь Mount, Lower ( ) | |
10-1 | 54166-90J10 Деталь Bolt, Lower Moun (<-09100-12079 ) | Деталь Bolt, Lower Moun (<-09100-12079 ) | |
10-2 | 54166-90J11 Деталь Bolt, Lower Moun (model:08~09 ) | Деталь Bolt, Lower Moun (model:08~09 ) | |
11 | 09159-12014 Деталь Nut ( ) | Деталь Nut ( ) | |
12 | 09160-12112 Деталь Washer (12x40x3.0) (<-09160-12065 ) | Деталь Washer (12x40x3.0) (<-09160-12065 ) | |
13 | 54114-90J01 Деталь Washer, Lwr Mt B (<-09160-12066 ) | Деталь Washer, Lwr Mt B (<-09160-12066 ) | |
14 | 54151-90J00 Деталь Mount, Lower Thr ( ) | Деталь Mount, Lower Thr ( ) | |
15 | 54211-90J01-0EP Деталь Bracket, Lower M ( ) | Деталь Bracket, Lower M ( ) | |
16 | 54221-90J02-0EP Деталь Cover, Lower Mou ( ) | Деталь Cover, Lower Mou ( ) | |
18 | 09160-12113 Деталь Washer (12.5x30x2.5) (<-09160-12098 ) | Деталь Washer (12.5x30x2.5) (<-09160-12098 ) |
