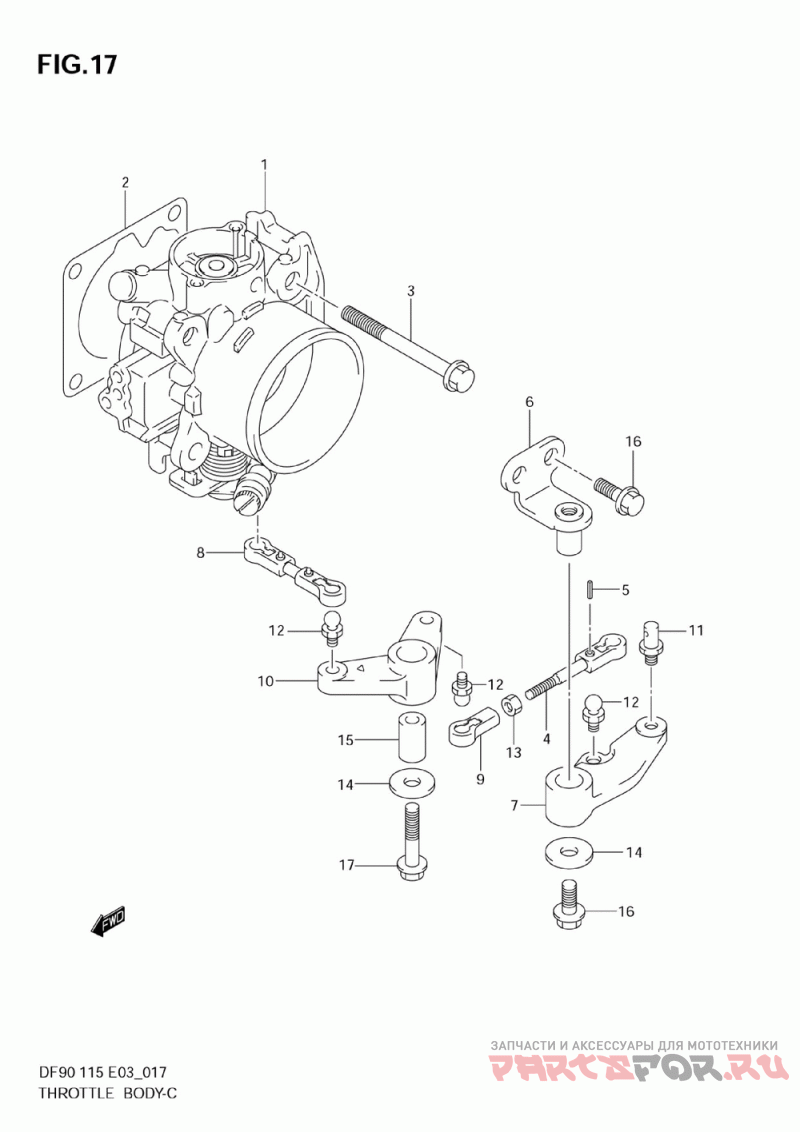

Корпус Дросселя
Suzuki Marine DF100/DF115
| # | oem код | название | цена |
|---|---|---|---|
1 | 13300-90J00 Деталь Body Assy, Throt ( ) | Деталь Body Assy, Throt ( ) | |
2 | 13421-90J00 Деталь Gasket, Throttle ( ) | Деталь Gasket, Throttle ( ) | |
3-1 | 01550-08607 Деталь Bolt, Throttle Body ( ) | Деталь Bolt, Throttle Body ( ) | |
3-2 | 01550-08557 Деталь Bolt (df90:251957~ Df100 ) | Деталь Bolt (df90:251957~ Df100 ) | |
4 | 13510-90J00 Деталь Rod, Throttle ( ) | Деталь Rod, Throttle ( ) | |
5 | 09205-02006 Деталь Pin ( ) | Деталь Pin ( ) | |
6 | 19115-90J00 Деталь Holder, Throttle ( ) | Деталь Holder, Throttle ( ) | |
7 | 19121-90J00 Деталь Lever, Throttle ( ) | Деталь Lever, Throttle ( ) | |
8-1 | 19130-90J10 Деталь Rod, Throttle N0 ( ) | Деталь Rod, Throttle N0 ( ) | |
9 | 19131-95502 Деталь Connector ( ) | Деталь Connector ( ) | |
10 | 19148-90J00 Деталь Lever, Throttle ( ) | Деталь Lever, Throttle ( ) | |
11 | 67473-89J00 Деталь Pin, Connector ( ) | Деталь Pin, Connector ( ) | |
12 | 09119-05010 Деталь Pivot, Throttle Lever ( ) | Деталь Pivot, Throttle Lever ( ) | |
13 | 09140-05005 Деталь .nut ( ) | Деталь .nut ( ) | |
14 | 09160-06046 Деталь Washer (6.5x20x1.5) ( ) | Деталь Washer (6.5x20x1.5) ( ) | |
15 | 09180-06186 Деталь Spacer, Throttle Lever No.2 ( ) | Деталь Spacer, Throttle Lever No.2 ( ) | |
16 | 01550-06167 Деталь .bolt, Remocon Cable Holder ( ) | Деталь .bolt, Remocon Cable Holder ( ) | |
17 | 01550-06357 Деталь Bolt ( ) | Деталь Bolt ( ) |
