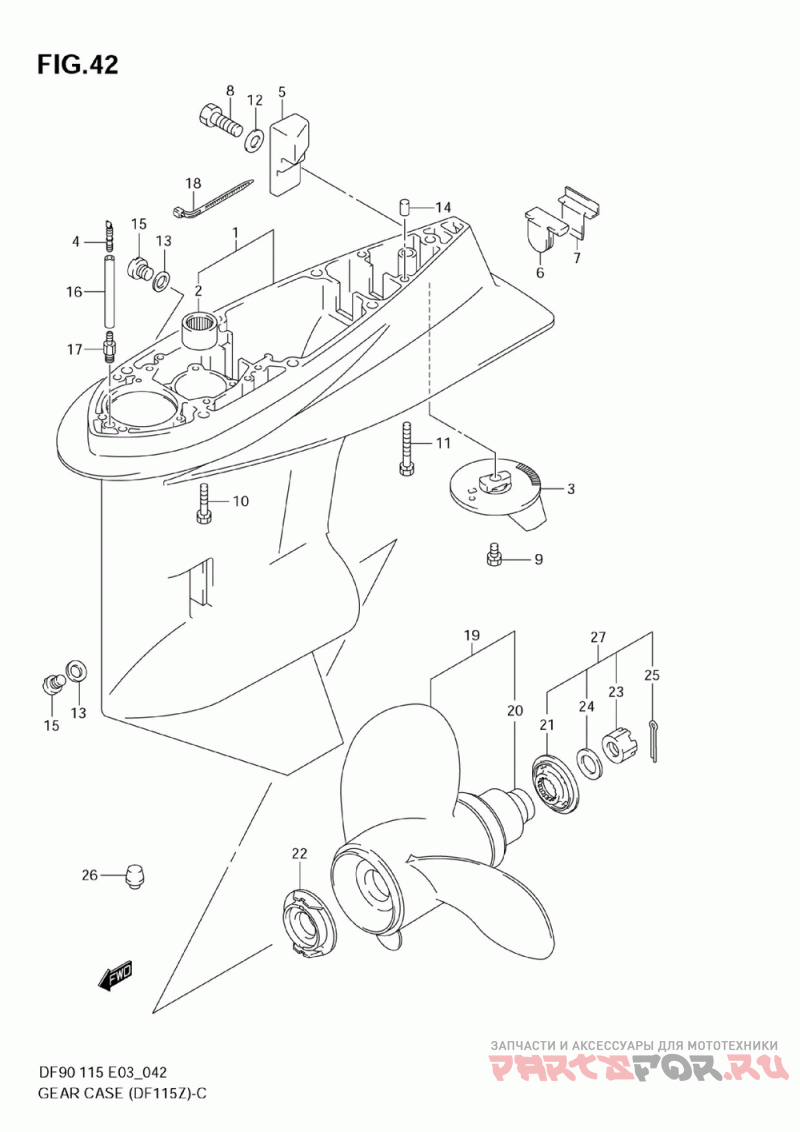

Картер (DF115Z)
Suzuki Marine DF100/DF115
| # | oem код | название | цена |
|---|---|---|---|
1 | 55110-92J00-0EP Case Assy, Gear ( ) | Case Assy, Gear ( ) | |
2 | 09263-28016 .bearing, Pinion ( ) | .bearing, Pinion ( ) | |
3 | 55125-92J00 Tab, Trim ( ) | Tab, Trim ( ) | |
4 | 55127-87D00 Union, Speedomet ( ) | Union, Speedomet ( ) | |
5 | 55321-90J01 Anode, Gear Case ( ) | Anode, Gear Case ( ) | |
6 | 55332-87D11 Rubber, Exhaust ( ) | Rubber, Exhaust ( ) | |
7 | 55333-87D10 Plate, Exhaust S ( ) | Plate, Exhaust S ( ) | |
8 | 09100-06131 .bolt (6x12) ( ) | .bolt (6x12) ( ) | |
9 | 09116-08137 Bolt, 8x22 ( ) | Bolt, 8x22 ( ) | |
10 | 09116-10150 Bolt, 10x55 ( ) | Bolt, 10x55 ( ) | |
11 | 09117-10039 Bolt (10x80) ( ) | Bolt (10x80) ( ) | |
12 | 09160-06085 Washer ( ) | Washer ( ) | |
13 | 09168-10022 Gasket (10x17x1.5) ( ) | Gasket (10x17x1.5) ( ) | |
14 | 09202-08006 Pin ( ) | Pin ( ) | |
15 | 09248-10008 Plug (10x7.5) ( ) | Plug (10x7.5) ( ) | |
16 | 09355-40805-00B Hose (l:2000->1100 ) | Hose (l:2000->1100 ) | |
17 | 09362-09008 Nipple ( ) | Nipple ( ) | |
18 | 09407-14407 .clamp, Harness (l:140) ( ) | .clamp, Harness (l:140) ( ) | |
19-1 | 99105-00700-18P Ss Prop Df 90-1 (not For Us Market ) | Ss Prop Df 90-1 (not For Us Market ) | |
19-5 | 99105-00800-17P Ssprop Dfv63x16 (not For Us Market Counter Rotation ) | Ssprop Dfv63x16 (not For Us Market Counter Rotation ) | |
20 | 58120-90J00 Bushing, Propel ( ) | Bushing, Propel ( ) | |
21 | 57633-90J02 Spacer, Propelle ( ) | Spacer, Propelle ( ) | |
22 | 57635-92J01 Stopper, Propell ( ) | Stopper, Propell ( ) | |
23 | 09141-18005 Nut ( ) | Nut ( ) | |
24 | 09160-18028 Washer (18.5x31x1.0) ( ) | Washer (18.5x31x1.0) ( ) | |
25 | 09204-03003 Cotter Pin (l:25) ( ) | Cotter Pin (l:25) ( ) | |
26 | 55116-87E00 Plug, Gear Case (opt ) | Plug, Gear Case (opt ) | |
27 | 57630-90J00 Prop Hdwr Df 90 (opt ) | Prop Hdwr Df 90 (opt ) | |
28 | 25700-90J01 Lu Seal Kit Df9 (opt Not Shown ) | Lu Seal Kit Df9 (opt Not Shown ) |
