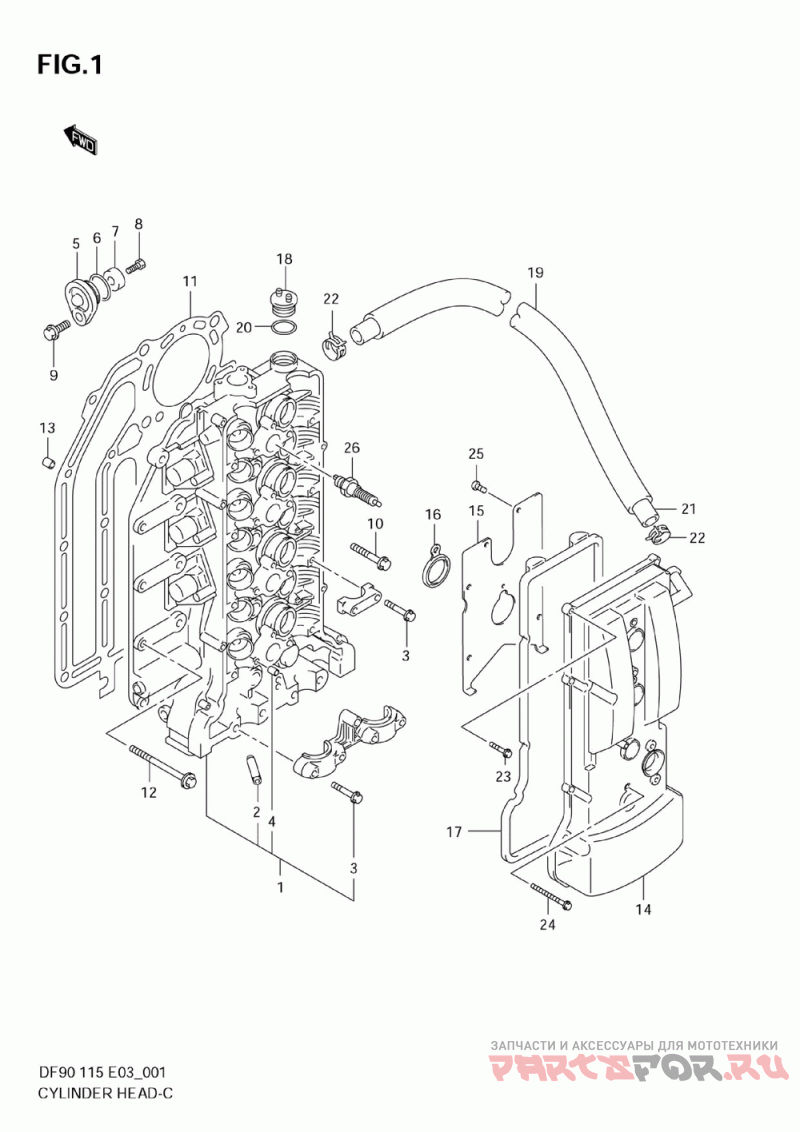

Головка цилиндра
Suzuki Marine DF100/DF115
| # | oem код | название | цена |
|---|---|---|---|
1-1 | 11100-90J00-019 (->11000-90800-019 (df115) ) | (->11000-90800-019 (df115) ) | |
1-2 | 11100-90J04 Head Assy, Cylin (df90:251001~ Df115:153864~ ) | Head Assy, Cylin (df90:251001~ Df115:153864~ ) | |
2 | 11115-85FA1-001 Guide, Valve ( ) | Guide, Valve ( ) | |
3 | 11128-90J00 Bolt, Camshaft H ( ) | Bolt, Camshaft H ( ) | |
4 | 09206-08001 Pin ( ) | Pin ( ) | |
5 | 11261-93J00 Cover, Protction (df90:421060~ Df100 ) | Cover, Protction (df90:421060~ Df100 ) | |
6 | 09280-22019 O Ring (df90:421060~ Df100 ) | O Ring (df90:421060~ Df100 ) | |
7 | 55321-87J00 Anode, Protectio (df90:421060~ Df100 ) | Anode, Protectio (df90:421060~ Df100 ) | |
8-1 | 09128-06021 Bolt (6x14) (df90:421060~ Df115:421141~ ) | Bolt (6x14) (df90:421060~ Df115:421141~ ) | |
8-2 | 09103-06281 Bolt (6x14) (model:06~09 ) | Bolt (6x14) (model:06~09 ) | |
9 | 01550-08207 ..bolt, Lower (df90:421060~ Df100 ) | ..bolt, Lower (df90:421060~ Df100 ) | |
10 | 11117-89J00 Bolt, Crankcase ( ) | Bolt, Crankcase ( ) | |
11 | 11141-90J01 Gasket, Cylinder ( ) | Gasket, Cylinder ( ) | |
12-1 | 01550-08507 Bolt ( ) | Bolt ( ) | |
12-2 | 09116-08125 Bolt, 8x50 (df90:371039~ Df100 ) | Bolt, 8x50 (df90:371039~ Df100 ) | |
13 | 04211-13189 Pin ( ) | Pin ( ) | |
14-1 | 11170-90J00 Cover, Cylinder ( ) | Cover, Cylinder ( ) | |
15 | 11173-90J00 Plate, Breather ( ) | Plate, Breather ( ) | |
16 | 11179-90J00 Gasket, Spark Pl ( ) | Gasket, Spark Pl ( ) | |
17 | 11189-90J00 Gasket, Cylinder ( ) | Gasket, Cylinder ( ) | |
18 | 11382-99E00 Cap, Oil Filler ( ) | Cap, Oil Filler ( ) | |
19 | 18498-90J20 Protector, Breat (l:590 ) | Protector, Breat (l:590 ) | |
20 | 09280-26006 O Ring (d:3.1, Id:26.4) ( ) | O Ring (d:3.1, Id:26.4) ( ) | |
21 | 09355-13207-00B Hose, Breather (l:2000->660 ) | Hose, Breather (l:2000->660 ) | |
22 | 17829-90J00 Clip, Breather H ( ) | Clip, Breather H ( ) | |
23 | 01547-06257 Bolt ( ) | Bolt ( ) | |
24 | 01547-06557 Bolt ( ) | Bolt ( ) | |
25 | 02112-0612A Screw ( ) | Screw ( ) | |
26 | 09482-00427 Spark Plug Bkr6 ( ) | Spark Plug Bkr6 ( ) | |
1-3 | 11100-90J05 Head Assy, Cylin (inc.no.5~9 Df115:421141~ ) | Head Assy, Cylin (inc.no.5~9 Df115:421141~ ) |
