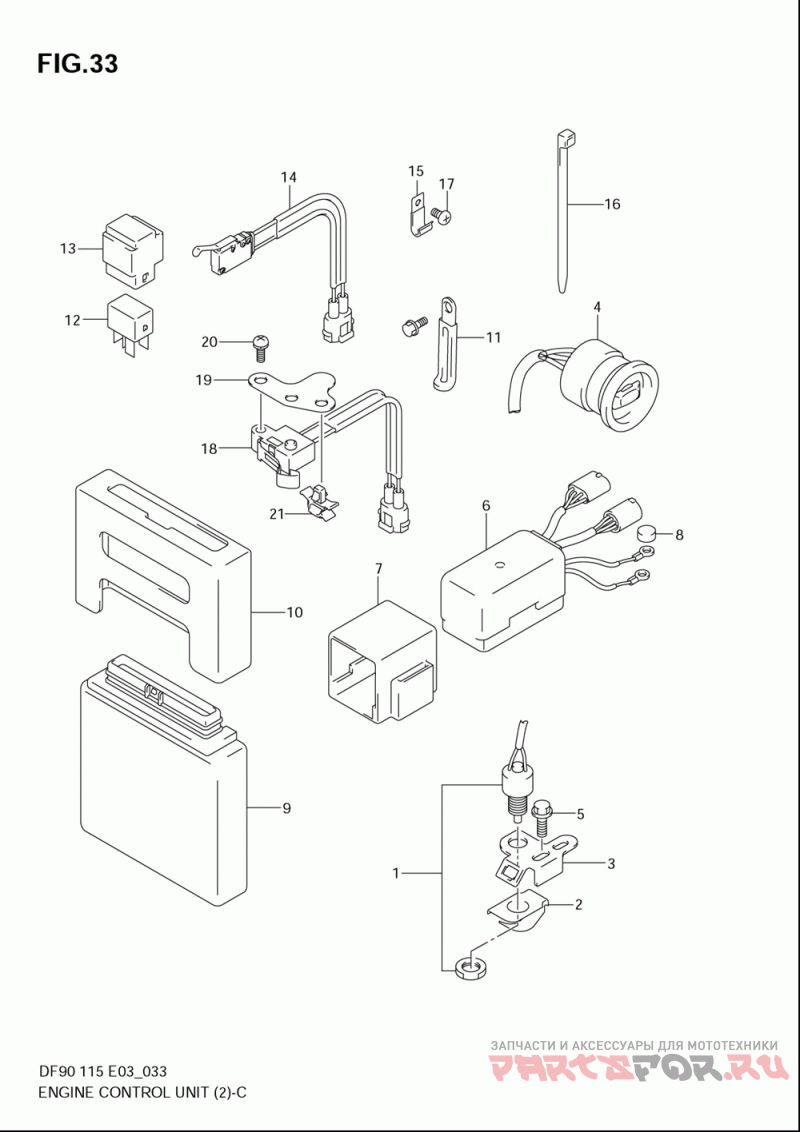

Ptt switch/engine control unit (model:04~08)

Suzuki Marine DF90/DF115

Suzuki Marine
#oem кодцена
1
37721-99E11
Switch Assy, Neu (df90:~680685df115:~681517)
2
37725-95600
Actuator, Neutra (df90:~680685df115:~681517)
3
37726-90J00
Bracket, Neutral (df90:~680685df115:~681517)
4
37850-99E03
Switch Assy, Ptt ()
5
01550-06167
.bolt, Remocon Cable Holder (df90:~680685df115:~681517)
6
38410-93J10
Relay Assy, Ptt ()
7
38415-93J00
Holder, Ptt Rela ()
8
09251-09002
.cap ()
9-1
33920-90J94
Unit, Engine Con (df90)
9-2
33920-90JB4
Unit, Engine Con (df115)
10
33925-87J00
Cushion, Engine ()
11
29404-93J10
Clamp (<-09404-06432)
12
38860-76F01
Relay Assy ()
13
38915-90J00
Holder, Relay ()
14-1
37722-93J11
Switch Assy, Til ()
15
09403-09316
Clamp (df90:~680685df115:~681517)
16-1
09407-14407
.clamp, Harness (l:140) (df90:680686~df115:681518~)
17
01550-06127
Bolt (df90:~680685df115:~681517)
18
37721-93J00
Switch Assy, Neu (df90:680686~df115:681518~)
19
37726-90J10
Bracket, Neutral (df90:680686~df115:681518~)
20
09137-04004
Screw, 4x16 (df90:680686~df115:681518~)
