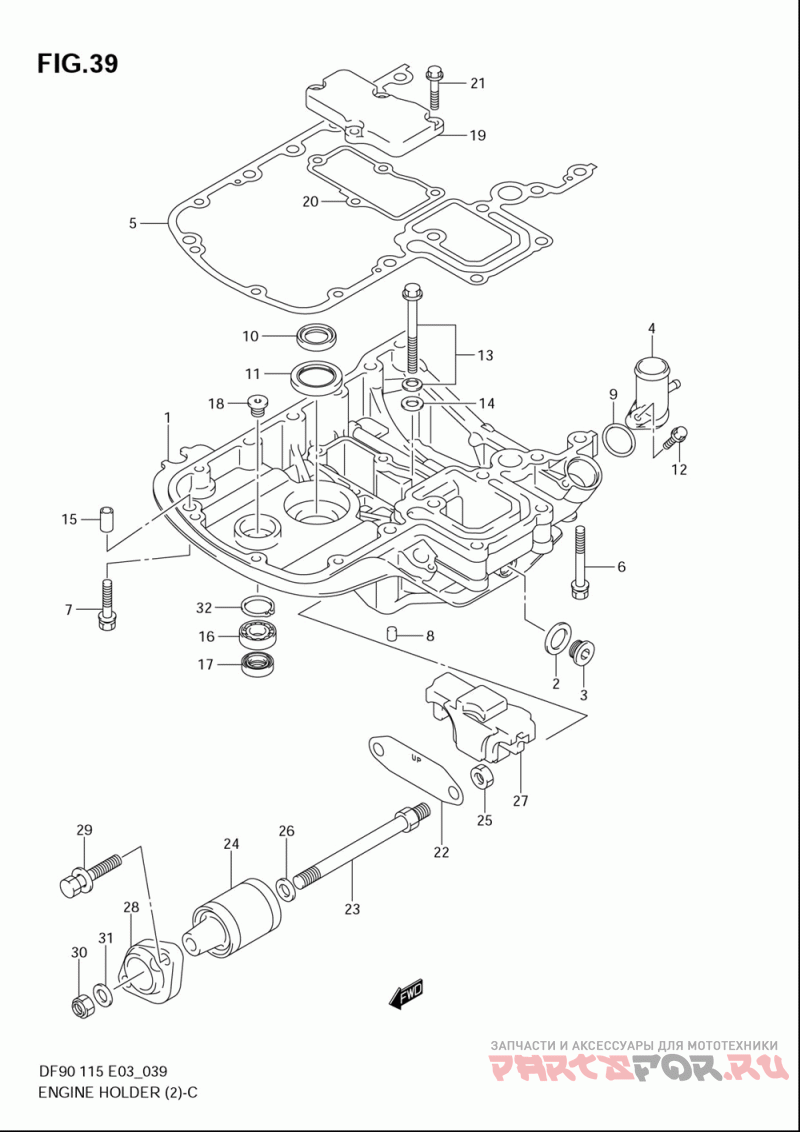

Engine holder (df90t:680686~ для лодочных моторов Suzuki Marine DF90/DF115 (2008)

Engine holder (df90t:680686~

Suzuki Marine DF90/DF115

oem код

название

цена

1-1

51110-90842-0EP

Holder Set, Engi (inc.no.2, 3, 10, 11, 16, 17, 32fig.5 No.7)

09160-18031

.gasket (18.5x28x2.6) (~model:07)

.plug (~model:07)

Union, Water Ret ()

Gasket, Eng Hold ()

Bolt (8x70) ()

Bolt, 8x40 (<-09116-08098)

09206-08001

Pin ()

09280-26006

O Ring (d:3.1, Id:26.4) ()

Oil Seal ()

Seal, Oil ()

..bolt ()

Bolt (<-09117-08038)

.spacer, Remocon Cable Holder ()

04211-11129

.pin ()

09262-17019

Bearing, Clutch Shaft ()

09289-18001

Seal, Clutch Shaft ()

Plug ()

Cover, Mount Cas ()

Gasket, Mount Ca ()

Болт

Plate, Upper Mou ()

23-1

54112-90J20

Bolt, Upper Moun ()

23-2

54112-90J21

Bolt, Upper Moun (model:08)

Mount Comp, Uppe ()

Гайка

Washer, Lwr Mt B ()

Mount, Upper Thr ()

Cover, Upper Mou ()

Bolt, Drive Shaf ()

Washer (12.5x22x3) ()

08331-41359

08331-41358 ()
