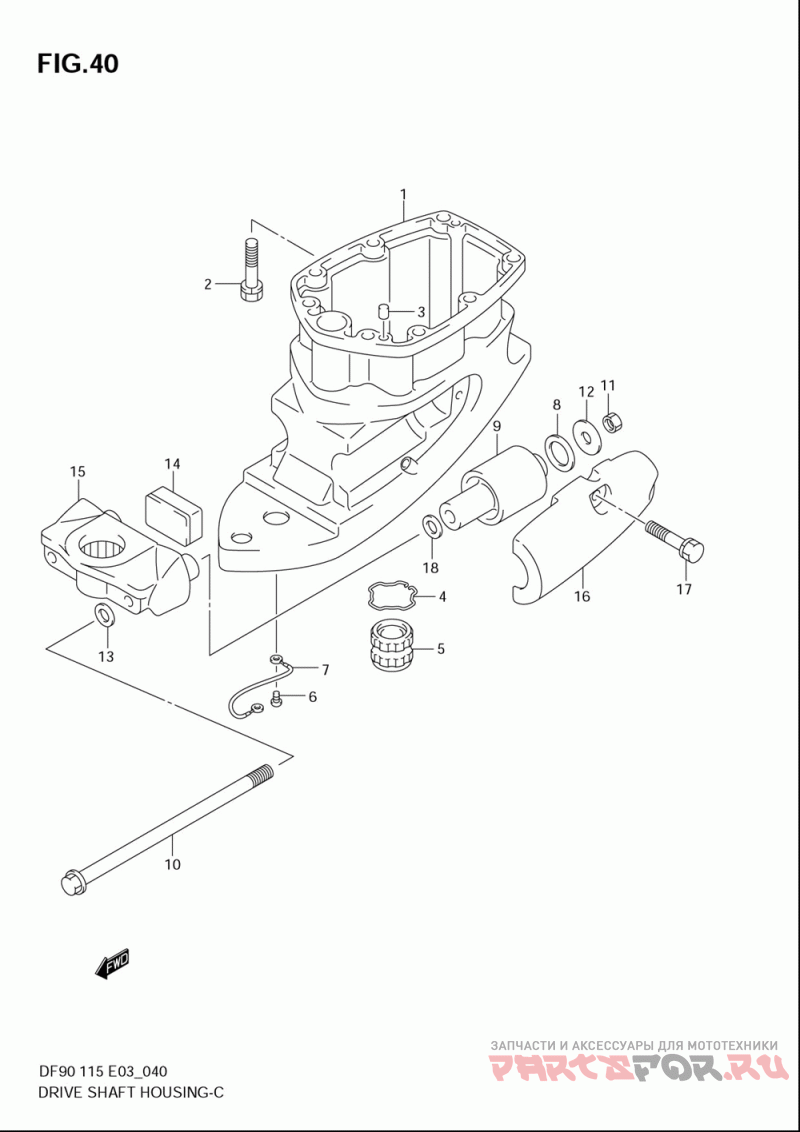

Корпус ведущего вала (нога) для лодочных моторов Suzuki Marine DF90/DF115 (2008)

Корпус ведущего вала (нога)

Suzuki Marine DF90/DF115

oem код

название

цена

1-1

52111-90J02-0EP

Housing, Drive S (type:l)

1-3

52111-90J12-0EP

Housing, Drive S (type:x)

2-1

09117-10058

Bolt (10x45) ()

09202-08006

Pin ()

09387-45001

Set Ring (sus) (type:x)

57130-94501

Bush, Drive Shaf (type:x)

09125-06063

Screw (6x10) ()

7-1

36895-87D01

Lead, Swivel To ()

7-2

36895-87D10

Lead Swivel (df90:680686~df115:681518~)

54121-87D00

Stopper, Upper T ()

54160-90J00

Mount, Lower ()

10-1

54166-90J10

Bolt, Lower Moun (<-09100-12079)

10-2

54166-90J11

Bolt, Lower Moun (model:08)

09159-12014

Гайка

09160-12112

Washer (12x40x3.0) (<-09160-12065)

54114-90J01

Washer, Lwr Mt B (<-09160-12066)

Mount, Lower Thr ()

Bracket, Lower M ()

Cover, Lower Mou ()

Washer (12.5x30x2.5) (<-09160-12098)
