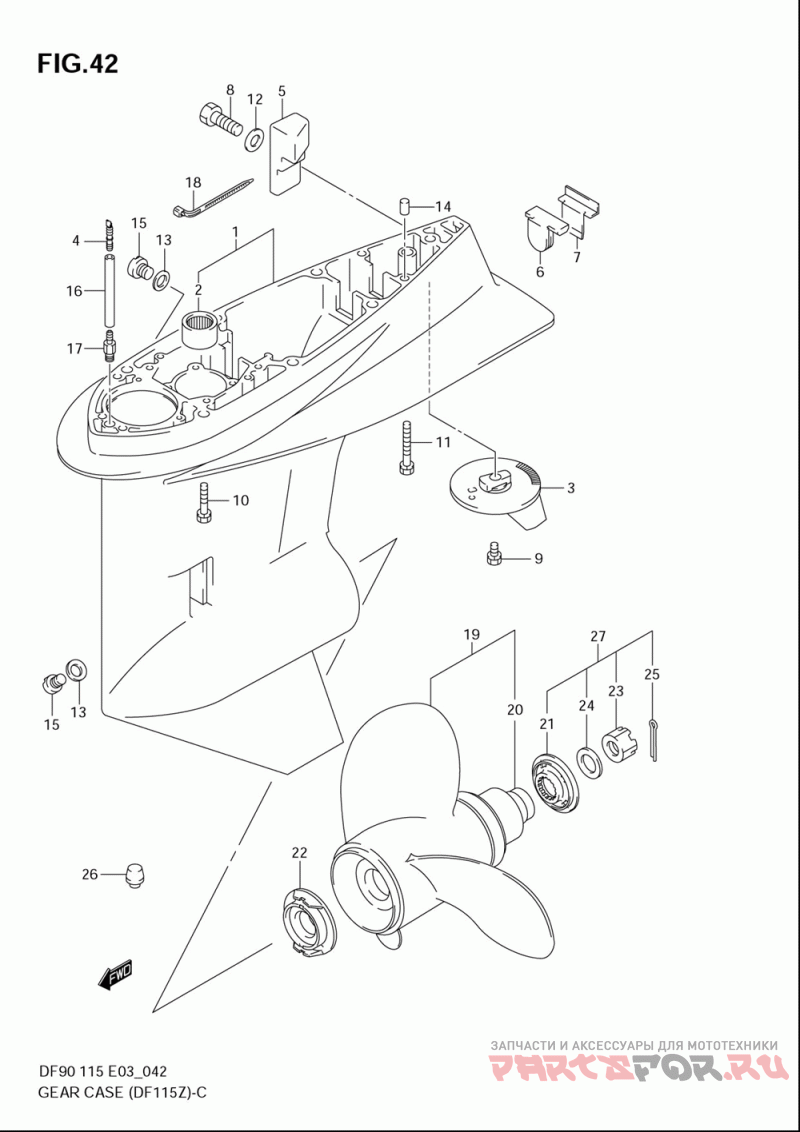

Картер (DF115Z) для лодочных моторов Suzuki Marine DF90/DF115 (2008)

Картер (DF115Z)

Suzuki Marine DF90/DF115

oem код

название

цена

Case Assy, Gear ()

.bearing, Pinion ()

Tab, Trim ()

Union, Speedomet ()

Anode, Gear Case ()

Rubber, Exhaust ()

Plate, Exhaust S ()

.bolt (6x12) ()

Bolt, 8x22 ()

Bolt, 10x55 ()

Bolt (10x80) ()

Шайба

Gasket (10x17x1.5) ()

Pin ()

Plug (10x7.5) ()

Hose (l:2000->1100)

Nipple ()

.clamp, Harness (l:140) ()

19-1

99105-00700-18P

Ss Prop Df 90-1 (not For Us Market)

19-5

99105-00800-17P

Ssprop Dfv63x16 (not For Us Marketcounter Rotation)

Bushing, Propel ()

Spacer, Propelle ()

Stopper, Propell ()

Гайка

Washer (18.5x31x1.0) ()

09204-03003

Cotter Pin (l:25) ()

55116-87E00

Plug, Gear Case (opt)

57630-90J00

Prop Hdwr Df 90 (opt)

25700-90J01

Lu Seal Kit Df9 (opt Not Shown)
