Transmission (see note) для лодочных моторов Suzuki Marine DF40/DF50 (2008)

Москва и регионы России

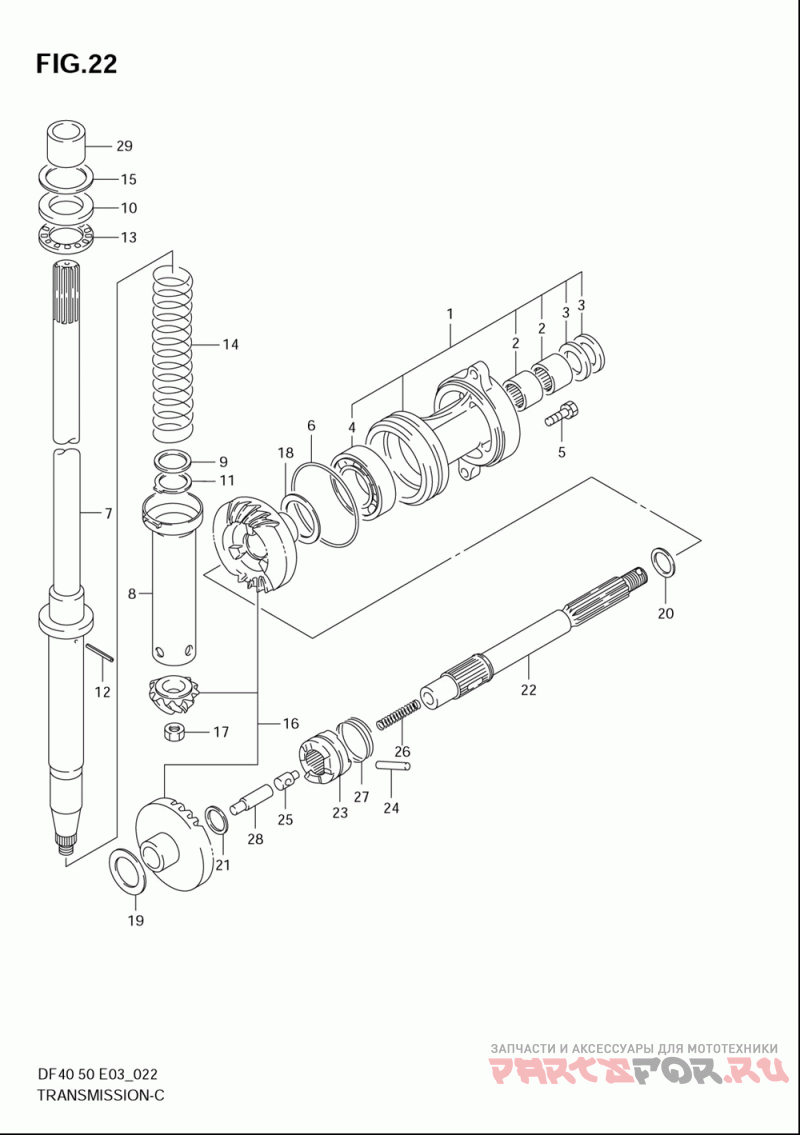

Transmission (see note)

Suzuki Marine DF40/DF50

Transmission (see note)

#

oem код

название

цена

1

56120-94321-0EP

Housing, Propell ()

Housing, Propell ()

2-1

.bearing (df40:422328~df50:423475~)

.bearing (df40:422328~df50:423475~)

3

Oil Seal, Prop S ()

Oil Seal, Prop S ()

4

.bearing ()

.bearing ()

5

Bolt (8x30) ()

Bolt (8x30) ()

6

O Ring (d:3.8, Id:75) ()

O Ring (d:3.8, Id:75) ()

7-1

Shaft Assy, Driv (type:s)

Shaft Assy, Driv (type:s)

7-2

Shaft Assy, Driv (type:l)

Shaft Assy, Driv (type:l)

8

Housing Spring ()

Housing Spring ()

9

Washer (24x33x2.5) ()

Washer (24x33x2.5) ()

10

Washer (26.2x42x4.0) ()

Washer (26.2x42x4.0) ()

11

Washer ()

Washer ()

12

Pin ()

Pin ()

13

Bearing ()

Bearing ()

14

Spring ()

Spring ()

15-1

Shim (t:0.5) (drive Shaft Adjust)

Shim (t:0.5) (drive Shaft Adjust)

15-2

Shim (t:0.6) (drive Shaft Adjust)

Shim (t:0.6) (drive Shaft Adjust)

15-3

Shim (t:0.7) (drive Shaft Adjust)

Shim (t:0.7) (drive Shaft Adjust)

15-4

Shim (t:0.8) (drive Shaft Adjust)

Shim (t:0.8) (drive Shaft Adjust)

15-5

Shim (t:0.9) (drive Shaft Adjust)

Shim (t:0.9) (drive Shaft Adjust)

16

Pinion / Gear S ()

Pinion / Gear S ()

17

Гайка

Гайка

18-1

Shim (t:0.5) (reverse Backup)

Shim (t:0.5) (reverse Backup)

18-2

Shim (t:0.6) (reverse Backup)

Shim (t:0.6) (reverse Backup)

18-3

Shim (t:0.7) (reverse Backup)

Shim (t:0.7) (reverse Backup)

18-4

Shim (t:0.8) (reverse Backup)

Shim (t:0.8) (reverse Backup)

18-5

Shim(0.9) (reverse Backup)

Shim(0.9) (reverse Backup)

18-6

Shim (t:1.0) (reverse Backup)

Shim (t:1.0) (reverse Backup)

20-1

Washer (t:1.8) (prop Sft Thrust)

Washer (t:1.8) (prop Sft Thrust)

20-2

Washer (t:1.9) (prop Sft Thrust)

Washer (t:1.9) (prop Sft Thrust)

20-3

Washer (t:2.0) (prop Sft Thrust)

Washer (t:2.0) (prop Sft Thrust)

20-4

Washer (t:2.1) (prop Sft Thrust)

Washer (t:2.1) (prop Sft Thrust)

20-5

Washer (t:2.2) (prop Sft Thrust)

Washer (t:2.2) (prop Sft Thrust)

20-6

Washer (t:2.3) (prop Sft Thrust)

Washer (t:2.3) (prop Sft Thrust)

21

Washer (t:2.0) ()

Washer (t:2.0) ()

22

Shaft Assy, Prop ()

Shaft Assy, Prop ()

23

Shifter, Clutch ()

Shifter, Clutch ()

24

Pin, Cl Dog Shif ()

Pin, Cl Dog Shif ()

25

Pin, Cl Dog Shif ()

Pin, Cl Dog Shif ()

26-1

Spring ()

Spring ()

26-2

Spring (df40:780223~df50:780555~)

Spring (df40:780223~df50:780555~)

27

Spring, Dog ()

Spring, Dog ()

28

Rod, Push ()

Rod, Push ()

29

Bush, Drive Sha (type:ldf40:~422327df50:~423474)

Bush, Drive Sha (type:ldf40:~422327df50:~423474)

7-1

Shaft Comp, Driv (type:s)

Shaft Comp, Driv (type:s)

7-2

Shaft, Drive (l) (type:l)

Shaft, Drive (l) (type:l)

8

Collar, Drive Sh ()

Collar, Drive Sh ()

9

Bearing Assy ()

Bearing Assy ()

10-1

Shim, 35x42x0.5 (drive Shaft Adjust)

Shim, 35x42x0.5 (drive Shaft Adjust)

10-2

Shim, 33.5x41.8x (drive Shaft Adjust)

Shim, 33.5x41.8x (drive Shaft Adjust)

10-3

Shim, 33.5x41.8x (drive Shaft Adjust)

Shim, 33.5x41.8x (drive Shaft Adjust)

10-4

(drive Shaft Adjust)

(drive Shaft Adjust)

10-5

(drive Shaft Adjust)

(drive Shaft Adjust)

10-6

Shim, 35x42x1 (drive Shaft Adjust)

Shim, 35x42x1 (drive Shaft Adjust)
