Fuel vapor separator (model:00~08) для лодочных моторов Suzuki Marine DF40/DF50 (2008)

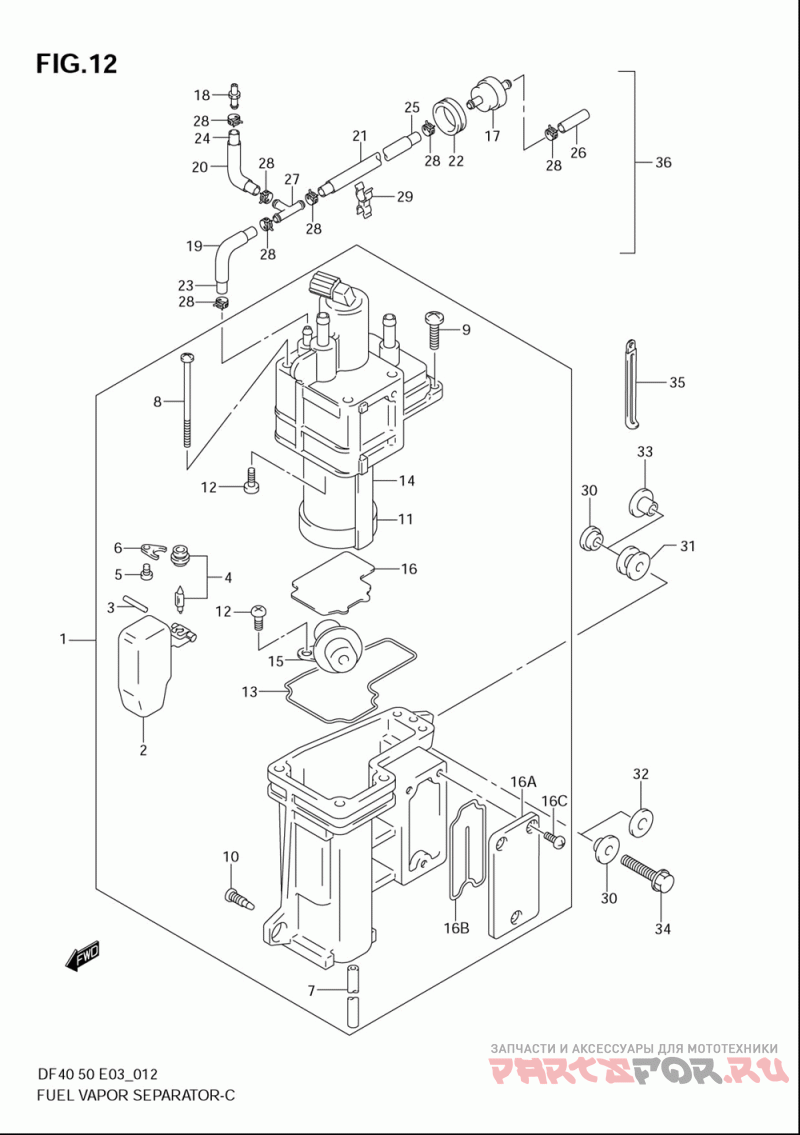

Fuel vapor separator (model:00~08)

Suzuki Marine DF40/DF50

oem код

название

цена

1-1

15600-87J11

Separator Assy, (model:00)

15650-99E00

Float ()

15654-99E00

Pin ()

13370-99E00

Valve, Needle (with Valve Seat)

Винт

.plate ()

Hose ()

Screw(l:70) ()

Screw(l:15) ()

Screw, Drain ()

Filter, Fuel Pum ()

Винт

O-ring ()

Pump Assy, Fuel ()

Regulator ()

Plate ()

16A

15612-99E00

Cover, Vapor Sep ()

16B

15613-99E00

O Ring, Vapor Se ()

16C

Screw, Vapor Sep ()

Filter, Fuel ()

Jet, Evaporizatn ()

Protector(l:450 (l:450->110l:450->200)

09320-20008

Cushion ()

09352-50823-600

Hose (l:600->160l:600->250l:600->510)

Hose (l:600->120)

3 Way, Water Hose ()

Clip (<-09401-08409)

Clamp ()

Washer (df40:~422684df50:~424593)

09320-09039

Cushion ()

09160-06084

Washer (6.5x18x1.6) (df40:422685~model:05df50:424594~model:05)

09169-06075

Washer (df40:422685~df50:424594~)

34-1

01550-06257

..bolt ()

34-2

09116-06202

Bolt (w/washer) (model:06~08)

09404-06435

Clamp (l:135) ()

15660-87J00

Hose Set, Evapor (opt Ref.no.17~29)
