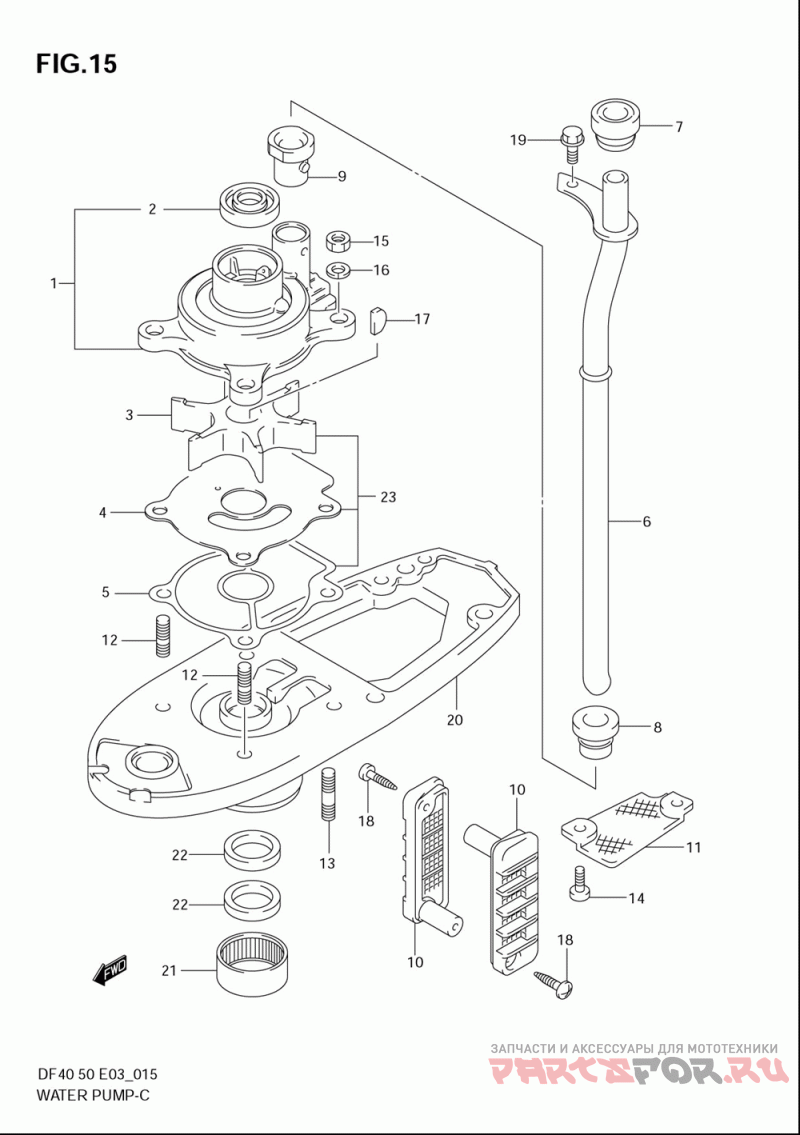

Водяной насос

Suzuki Marine DF40/DF50

Suzuki Marine
#oem кодцена
1-1
17410-95D11
Case, Water Pump ()
1-2
17411-94421
Case, Water Pump (df40:422328~df50:423475~)
2
09282-17007
Seal (df40:~422327df50:~423474)
3
17461-96312
Impeller, Water ()
4
17471-94401
Panel, Pump Case ()
5-1
17472-96302
Gasket, Pump Cas ()
6-1
17560-87J11
Tube, Water (s) ()
6-2
17560-87J01
Tube, Water (l) ()
7
17563-94400
Grommet Water T ()
8
17565-94400
Grommet Water T (type:l)
9
17566-94400
Grommet Water T ()
10
17631-96320
Filter, Water ()
11-1
17635-87E00
Filter, Water Su ()
11-2
17635-87E10
Plate, Gear Case (opt)
12
09108-06060
Bolt Stud ()
13
09108-06061
Bolt Stud ()
14
09125-05046
Screw (5x12) ()
15
29141-93J00
Nut (<-09140-06020)
16
29162-93J00
Washer (<-09162-06006)
17
09420-04006
Key, Impeller ()
18
03142-04309
03142-04303 ()
19
09116-06094
Bolt, 6x15 ()
20-1
56130-94430-0EP
Housing Comp, Dr (model:99~04)
20-2
56130-87J00-0EP
Housing, Drive (df40:510001~510209df50:510001~510465)
21-1
09263-25025
.bearing (model:99~04df40:510210~df50:510466~)
22
09282-17005
Oil Seal ()
23
17400-96352
Kit, Water Pump (optref.no, 3, 4, 5, 17)
