Опции - рукоятка румпеля для лодочных моторов Suzuki Marine DF40/DF50 (2008)

Москва и регионы России

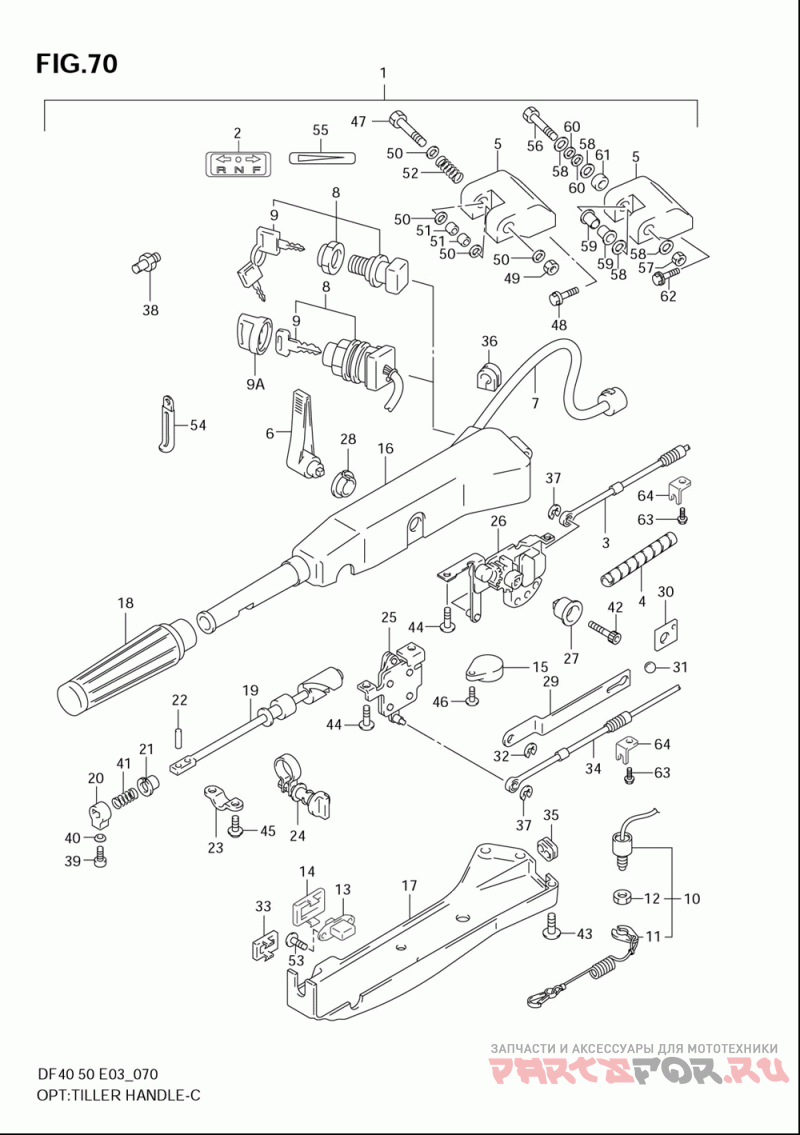

Опции - рукоятка румпеля

Suzuki Marine DF40/DF50

Опции - рукоятка румпеля

#

oem код

название

цена

1-1

63002-87J06-0EP

Df 40 Tiller Ki ()

Df 40 Tiller Ki ()

1-2

63002-87J24-0EP

Kit, Tiller Hand (model:05~)

Kit, Tiller Hand (model:05~)

2-1

Mark, Clutch Shi ()

Mark, Clutch Shi ()

3

Cable, Clutch ()

Cable, Clutch ()

4

Tube, Sw Lead (l:250->100<-33833-95510)

Tube, Sw Lead (l:250->100<-33833-95510)

5-1

43761-87J01-0EP

Bracket, Tiller ()

Bracket, Tiller ()

5-2

43761-87J11-0EP

Bracket, Tiller (for 63002-99j23-0ep)

Bracket, Tiller (for 63002-99j23-0ep)

6

21111-87J10-0EP

Lever, Shift(bla ()

Lever, Shift(bla ()

7-1

Wire, Handle ()

Wire, Handle ()

7-2

Wire Assy, Handl (model:05~08)

Wire Assy, Handl (model:05~08)

8-1

Switch Assy, Ign ()

Switch Assy, Ign ()

9-1

Key (11) ()

Key (11) ()

9-2

Key (12) ()

Key (12) ()

9-3

Key (13) ()

Key (13) ()

9-4

Key (14) ()

Key (14) ()

9-5

Key (15) ()

Key (15) ()

9-6

Key (16) ()

Key (16) ()

9-7

Key (17) ()

Key (17) ()

9-8

Key (18) ()

Key (18) ()

9-9

Key (19) ()

Key (19) ()

9-10

Key (20) ()

Key (20) ()

9-11

Key (931) (model:04~08)

Key (931) (model:04~08)

9-12

Key (932) (model:04~08)

Key (932) (model:04~08)

9-13

Key (933) (model:04~08)

Key (933) (model:04~08)

9-14

Key (934) (model:04~08)

Key (934) (model:04~08)

9-15

Key (935) (model:04~08)

Key (935) (model:04~08)

9-16

Key (936) (model:04~08)

Key (936) (model:04~08)

9-17

Key (937) (model:04~08)

Key (937) (model:04~08)

9-18

Key (938) (model:04~08)

Key (938) (model:04~08)

9-19

Key (939) (model:04~08)

Key (939) (model:04~08)

9-20

Key (940) (model:04~08)

Key (940) (model:04~08)

9-21

Key (941) (model:04~08)

Key (941) (model:04~08)

9-22

Key (942) (model:04~08)

Key (942) (model:04~08)

9A

Cap, Key (model:04~08)

Cap, Key (model:04~08)

10

Switch Assy, Eme ()

Switch Assy, Eme ()

11

Plate Assy, Emer ()

Plate Assy, Emer ()

12

Гайка

Гайка

13

Switch, Trim ()

Switch, Trim ()

14

Cap, Trim Sw ()

Cap, Trim Sw ()

15

Buzzer Set, Warn ()

Buzzer Set, Warn ()

16-1

63111-87J10-0EP

Housing, Tiller (->63111-87j10-0epused With 63611-87j00 X263612-87j00 X2)

Housing, Tiller (->63111-87j10-0epused With 63611-87j00 X263612-87j00 X2)

17

Cover, Under ()

Cover, Under ()

18

Grip Comp, Handl ()

Grip Comp, Handl ()

19

Rod, Handle ()

Rod, Handle ()

20

Stopper, Handle ()

Stopper, Handle ()

21

Bush ()

Bush ()

22

Handle Rod Pin ()

Handle Rod Pin ()

23

Plate, Handle ()

Plate, Handle ()

24

Adjuster, Handle ()

Adjuster, Handle ()

25

Arm Assy, Thrott ()

Arm Assy, Thrott ()

26

Gear Assy, Shift ()

Gear Assy, Shift ()

27

Spacer, Clutch L ()

Spacer, Clutch L ()

28

Bush, Clutch Lev ()

Bush, Clutch Lev ()

29

Plate, Lock ()

Plate, Lock ()

30

Plate, Ball Guid ()

Plate, Ball Guid ()

31

Ball ()

Ball ()

32

E Ring ()

E Ring ()

33

Cover, Trim Sw ()

Cover, Trim Sw ()

34

Cable, Throttle ()

Cable, Throttle ()

35

Grommet, Throt C ()

Grommet, Throt C ()

36

Grommet, Wire Ha ()

Grommet, Wire Ha ()

37

E-ring ()

E-ring ()

38

Pin, Connector ()

Pin, Connector ()

39

.screw, Handle Grip (6x23) ()

.screw, Handle Grip (6x23) ()

40

.washer, Handle Grip Screw ()

.washer, Handle Grip Screw ()

41

Spring, Handle L ()

Spring, Handle L ()

42

.bolt (8x50) ()

.bolt (8x50) ()

43

.screw (5x14) ()

.screw (5x14) ()

44

.bolt (6x12) ()

.bolt (6x12) ()

45

.screw (5x12) ()

.screw (5x12) ()

46

Винт

Винт

47

Bolt (for 63002-99j06-0ep63002-99j21-0ep)

Bolt (for 63002-99j06-0ep63002-99j21-0ep)

48-1

Bolt (10x45) ()

Bolt (10x45) ()

49

Nut (for 63002-99j06-0ep63002-99j21-0ep)

Nut (for 63002-99j06-0ep63002-99j21-0ep)

50

.washer (10.5x22x2.5) (for 63002-99j06-0ep63002-99j21-0ep)

.washer (10.5x22x2.5) (for 63002-99j06-0ep63002-99j21-0ep)

51

Bush Handle (for 63002-99j06-0ep63002-99j21-0ep)

Bush Handle (for 63002-99j06-0ep63002-99j21-0ep)

52

Spring (for 63002-99j06-0ep63002-99j21-0ep)

Spring (for 63002-99j06-0ep63002-99j21-0ep)

53

.screw (2x6) ()

.screw (2x6) ()

54

Clamp (<-09404-10205)

Clamp (<-09404-10205)

55

Mark, Handle Gri ()

Mark, Handle Gri ()

58

.washer (10.5x22x1.5) (for 63002-99j23-0ep)

.washer (10.5x22x1.5) (for 63002-99j23-0ep)

59

.bush (for 63002-99j23-0ep)

.bush (for 63002-99j23-0ep)

60

Washer (for 63002-99j23-0ep)

Washer (for 63002-99j23-0ep)

61

Spacer, Tiller H (for 63002-99j23-0ep)

Spacer, Tiller H (for 63002-99j23-0ep)

63

Bolt, Clamp Brac (for 63002-99j23-0ep)

Bolt, Clamp Brac (for 63002-99j23-0ep)

64

Bracket, Clamp (for 63002-99j23-0ep)

Bracket, Clamp (for 63002-99j23-0ep)
