Масляный насос для лодочных моторов Suzuki Marine DF40/DF50 (2008)

Москва и регионы России

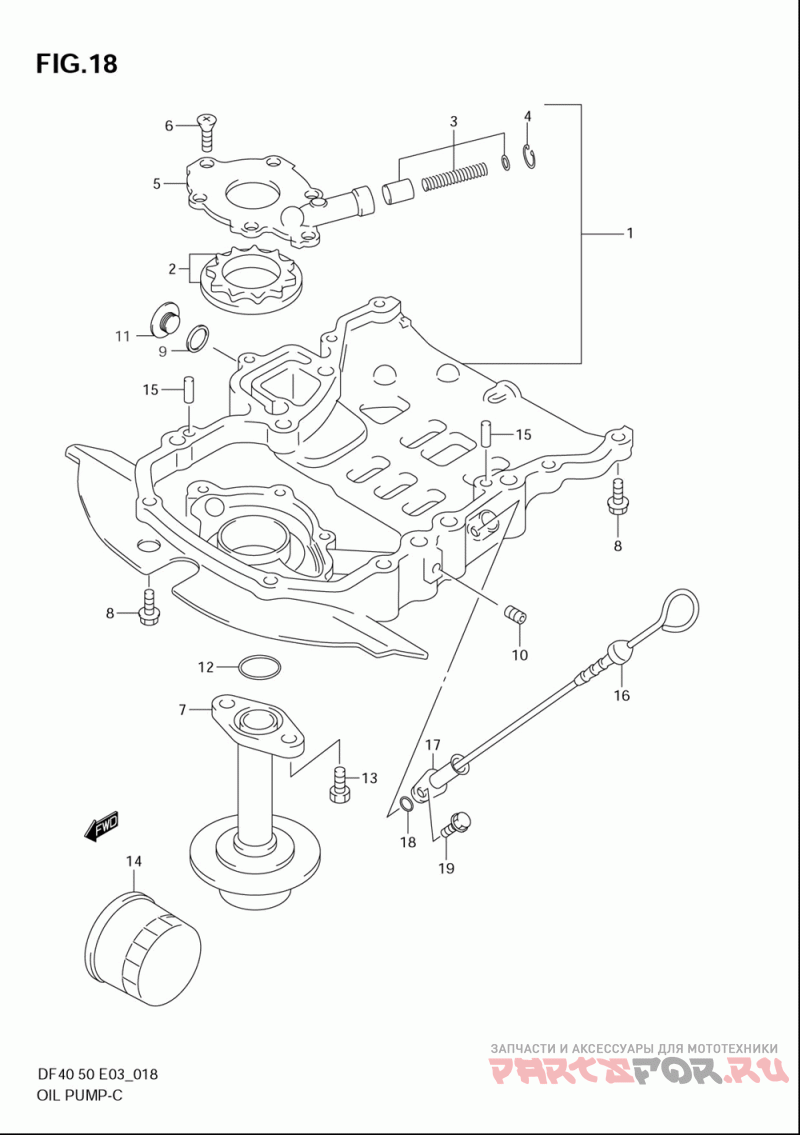

Масляный насос

Suzuki Marine DF40/DF50

Масляный насос

#

oem код

название

цена

1-1

16100-87J01-019

Case Assy, Oil P ()

Case Assy, Oil P ()

1-2

Case Assy, Oil P (model:04~08)

Case Assy, Oil P (model:04~08)

2

Rotor Set, Oil P ()

Rotor Set, Oil P ()

3

Valve Set, Oil ()

Valve Set, Oil ()

5

Plate, Oil Pump ()

Plate, Oil Pump ()

6

Винт

Винт

7

Strainer, Oil ()

Strainer, Oil ()

8

Bolt (<-09116-08114)

Bolt (<-09116-08114)

9

.gasket (18.5x28x2.6) ()

.gasket (18.5x28x2.6) ()

10

Plug ()

Plug ()

11-1

.plug ()

.plug ()

11-2

.plug (df40:510326~df50:510757~)

.plug (df40:510326~df50:510757~)

12

O Ring (d:2.4, Id:15.8) ()

O Ring (d:2.4, Id:15.8) ()

13

Болт

Болт

14

Filter, Oil Df25 ()

Filter, Oil Df25 ()

15

Pin ()

Pin ()

16

Gauge, Oil Level ()

Gauge, Oil Level ()

17

Guide, Oil Level ()

Guide, Oil Level ()

18

O Ring (id:8.8, Dd:2.1) ()

O Ring (id:8.8, Dd:2.1) ()

19

Болт

Болт
