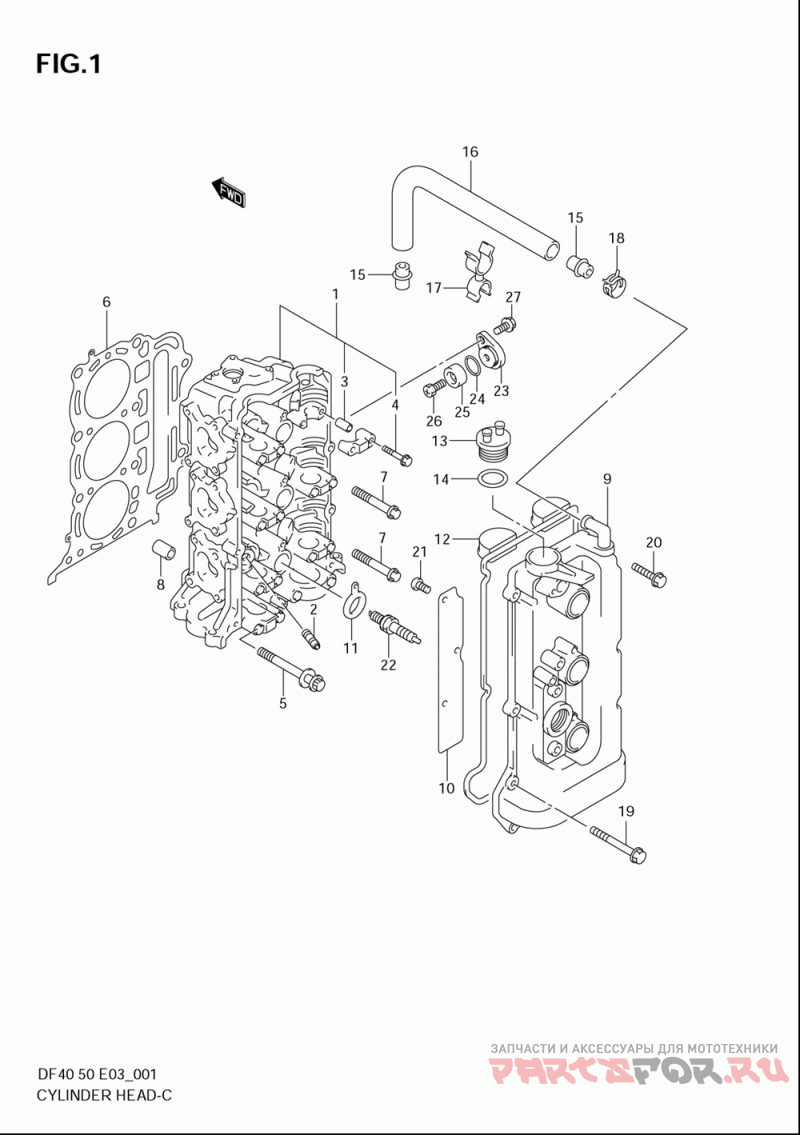

Головка цилиндра для лодочных моторов Suzuki Marine DF40/DF50 (2008)

Москва и регионы России

Головка цилиндра

Suzuki Marine DF40/DF50

Головка цилиндра

#

oem код

название

цена

1-1

11100-87J22-019

Head Assy, Cylin ()

Head Assy, Cylin ()

1-2

Head Assy, Cylin (model:04)

Head Assy, Cylin (model:04)

1-3

Head Assy, Cylin (model:05~08)

Head Assy, Cylin (model:05~08)

2

11115-73G01-001

Guide, Valve ()

Guide, Valve ()

3

Pin ()

Pin ()

4

Bolt, Camshaft H ()

Bolt, Camshaft H ()

5

Bolt, Cylinder H ()

Bolt, Cylinder H ()

6

Gasket, Cylinder ()

Gasket, Cylinder ()

7-1

Bolt, Cyl Head ()

Bolt, Cyl Head ()

7-2

Bolt, Cylinder H (model:04~08)

Bolt, Cylinder H (model:04~08)

8

Pin ()

Pin ()

9-1

11170-87J00-019

Cover, Cylinder ()

Cover, Cylinder ()

9-2

Cover, Cylinder (model:04~08)

Cover, Cylinder (model:04~08)

10

Plate, Breather ()

Plate, Breather ()

11

Gasket, Spark Pl ()

Gasket, Spark Pl ()

12

Gasket, Cylinder ()

Gasket, Cylinder ()

13

Cap, Oil Filler ()

Cap, Oil Filler ()

14

O Ring (d:3.1, Id:26.4) ()

O Ring (d:3.1, Id:26.4) ()

15

Jet, Breather Ho ()

Jet, Breather Ho ()

16

Hose Set, Breath ()

Hose Set, Breath ()

17

Clamp ()

Clamp ()

18

Clip, Breather H (<-09401-20406)

Clip, Breather H (<-09401-20406)

19

Болт

Болт

20

Болт

Болт

21

Винт

Винт

22

Spark Plug Dcpr ()

Spark Plug Dcpr ()

23

Cover, Protction (model:05~08)

Cover, Protction (model:05~08)

24

O Ring (model:05~08)

O Ring (model:05~08)

25

Anode, Protectio (model:05~08)

Anode, Protectio (model:05~08)

26-1

Bolt (6x14) (model:05)

Bolt (6x14) (model:05)

26-2

Bolt (6x14) (model:06~08)

Bolt (6x14) (model:06~08)

27

..bolt, Lower (model:05~08)

..bolt, Lower (model:05~08)
