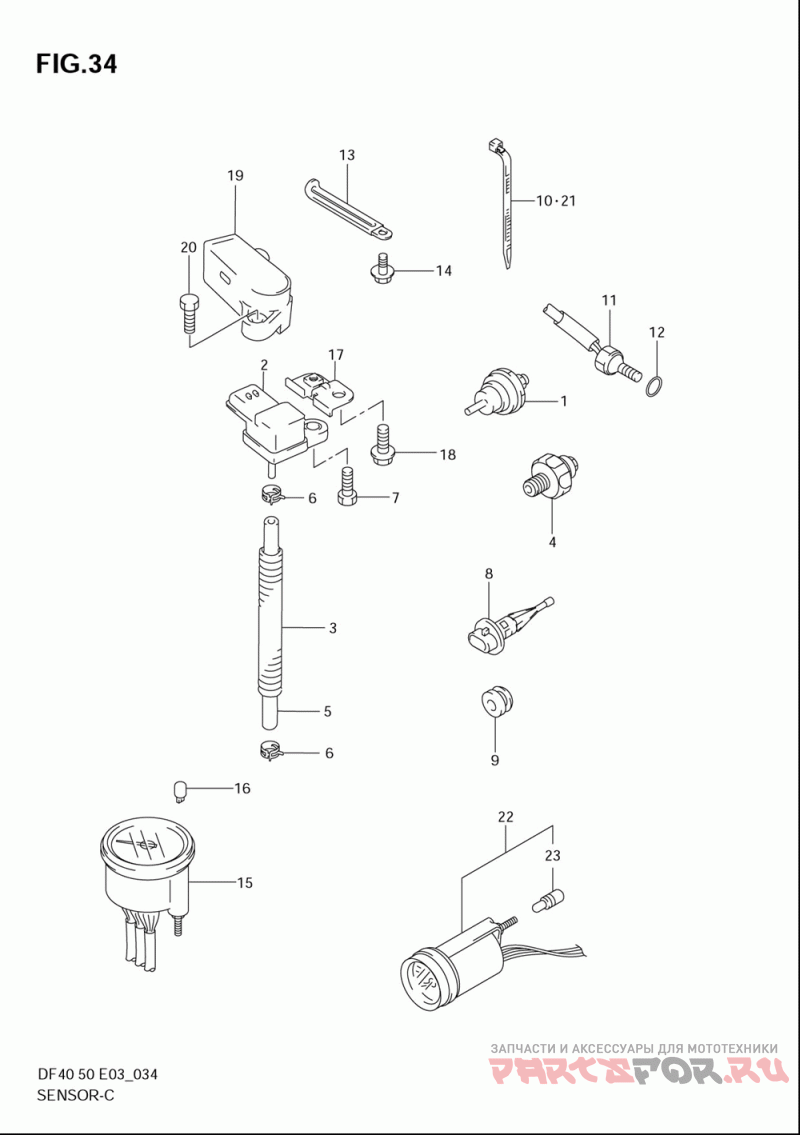

Датчик для лодочных моторов Suzuki Marine DF40/DF50 (2008)

Москва и регионы России

Датчик

Suzuki Marine DF40/DF50

Датчик

#

oem код

название

цена

1

Filter, Gas ()

Filter, Gas ()

2

Sensor, Map ()

Sensor, Map ()

3

Protector, Press (p Sensorl:90->50)

Protector, Press (p Sensorl:90->50)

4

Switch Assy, Oil ()

Switch Assy, Oil ()

5-1

09355-35754-601

Hose (l:601->110l:601->90model:01~08)

Hose (l:601->110l:601->90model:01~08)

6

Clip, Pressure S (<-09401-06405)

Clip, Pressure S (<-09401-06405)

7

Болт

Болт

8

Sensor, Inlet Air Temp ()

Sensor, Inlet Air Temp ()

9

Gromme, Air Temp ()

Gromme, Air Temp ()

10

.clamp, Harness (l:140) (~model:01)

.clamp, Harness (l:140) (~model:01)

11-1

Sensor Assy, Tem (model:99~02)

Sensor Assy, Tem (model:99~02)

11-2

Sensor, Exhaust (model:03~08)

Sensor, Exhaust (model:03~08)

12

O Ring (model:99~02)

O Ring (model:99~02)

13

Clamp (<-09404-06432)

Clamp (<-09404-06432)

14-1

Болт

Болт

14-2

Bolt (model:04~08)

Bolt (model:04~08)

15-1

(w/monitor)

(w/monitor)

15-2

Black Tach W/mo (blackdf40:421217~df50:421637~)

Black Tach W/mo (blackdf40:421217~df50:421637~)

15-3

White Tach W/mo (whitedf40:421217~df50:421637~)

White Tach W/mo (whitedf40:421217~df50:421637~)

16-1

.bulb ()

.bulb ()

16-2

.bulb (for 34200-93j0034200-93j10)

.bulb (for 34200-93j0034200-93j10)

17

Bracket, Pressur (model:01~08)

Bracket, Pressur (model:01~08)

19

Sender Assy, Tri (model:03~08)

Sender Assy, Tri (model:03~08)

20

.bolt, Remocon Cable Holder ()

.bolt, Remocon Cable Holder ()

21-1

.clamp, Battery Cable ()

.clamp, Battery Cable ()

22

Trim Gauge Df's (opt Model:03, 04)

Trim Gauge Df's (opt Model:03, 04)

23

.bulb ()

.bulb ()
