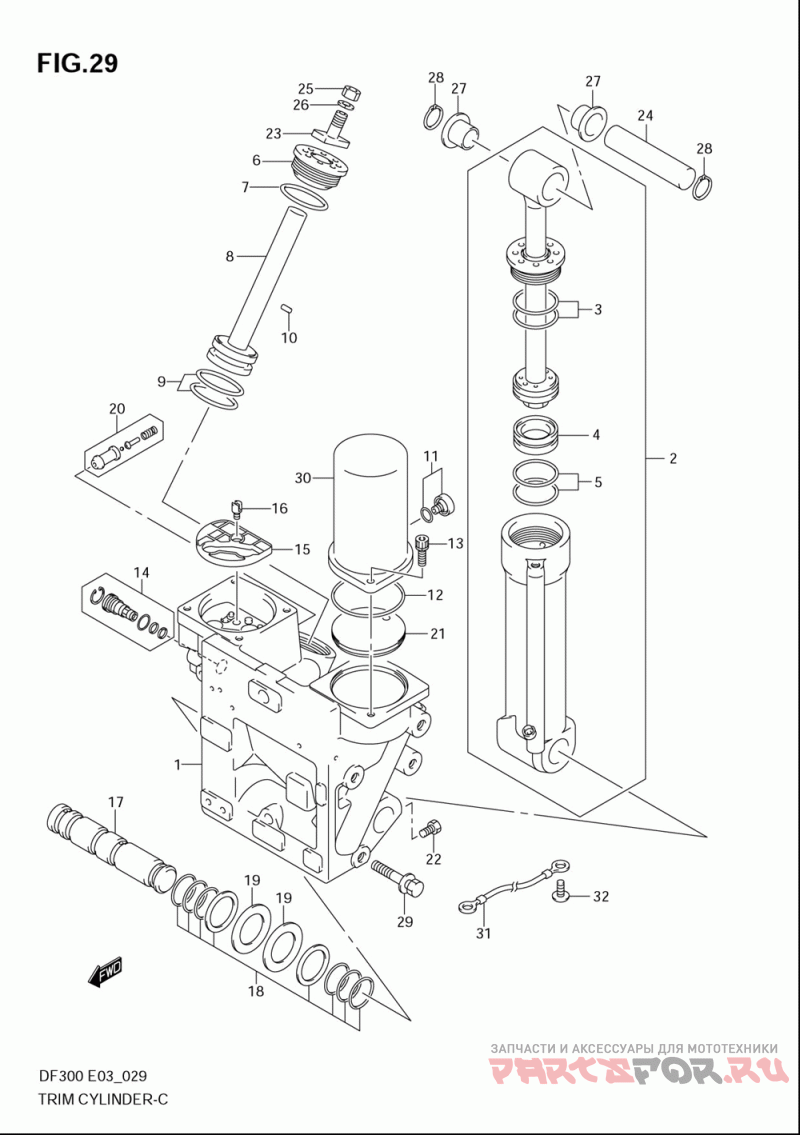

Цилиндр Подъема для лодочных моторов Suzuki Marine DF300 (2008)

Москва и регионы России

Цилиндр Подъема

Suzuki Marine DF300

Цилиндр Подъема

#

oem код

название

цена

1

Manifold Assy (inc.no.6~10, 15<-48641-93j00)

Manifold Assy (inc.no.6~10, 15<-48641-93j00)

2

Cylinder Assy ()

Cylinder Assy ()

3

O Ring Set ()

O Ring Set ()

4

Piston, Free ()

Piston, Free ()

5

O Ring Set ()

O Ring Set ()

6

Guide, Rod ()

Guide, Rod ()

7

O Ring ()

O Ring ()

8

Piston / Ram ()

Piston / Ram ()

9

O Ring Set ()

O Ring Set ()

10

Check Valve ()

Check Valve ()

11

Plug ()

Plug ()

12

Oring, Ptt ()

Oring, Ptt ()

13

Bolt, Tank ()

Bolt, Tank ()

14

Valve, Manual ()

Valve, Manual ()

15

Filter ()

Filter ()

16

Joint, Drive ()

Joint, Drive ()

17

Shaft ()

Shaft ()

18

O Ring Set ()

O Ring Set ()

19

Washer, Nylon ()

Washer, Nylon ()

20

Valve Set, Up Bl ()

Valve Set, Up Bl ()

21

Cover Comp ()

Cover Comp ()

22

Болт

Болт

23

Pad, Trim Cylind ()

Pad, Trim Cylind ()

24

Shaft, Tilt Cyl ()

Shaft, Tilt Cyl ()

25

Гайка

Гайка

26

Шайба

Шайба

27

Bush, Tilt Cyl U ()

Bush, Tilt Cyl U ()

28

Circlip, Tilt Cy ()

Circlip, Tilt Cy ()

29

Bolt, Oil Pan No ()

Bolt, Oil Pan No ()

30

Reservoir Tank ()

Reservoir Tank ()

31

Lead, Swivel To ()

Lead, Swivel To ()

32

Screw ()

Screw ()
