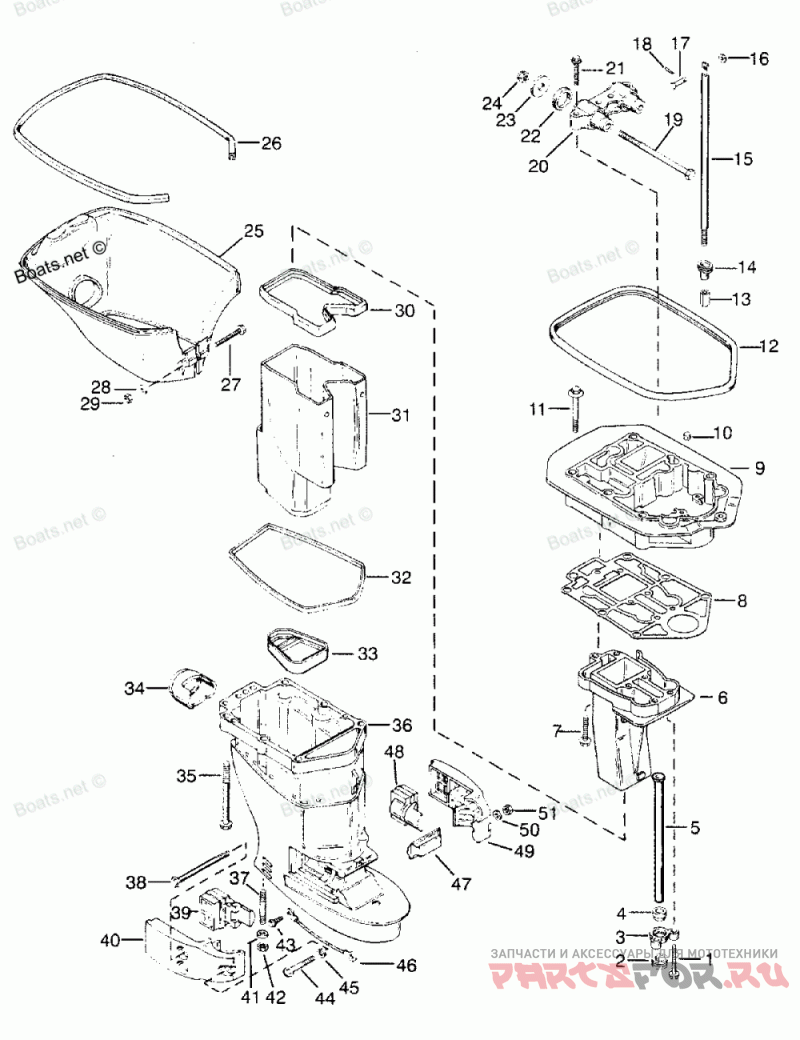

Корпус вертикального вала

Force H050312RR

Force
#oem кодцена
1
40011155
SCREW (M8 X 1.25 X 55)
2
93221
GROMMET, WATER TUBE
3
99019
CLAMP, WATER TUBE
4
42941
SEAL, WATER TUBE
5
430143
Шланг, вода
6
8200691
TUBE, EXHAUST
7
40011153
SCREW (M8 X 1.25 X 45)
8
826739
GASKET, EXHAUST TUBE/ADAPTER PLATE
9
820268A1
PLATE ASSEMBLY, ADAPTER
10
23784
Штифт
11
4010875
SCREW (M10 X .75)
12
821510
SEAL, BOTTOM COWL
13
822419
Муфта сцепления
14
822408
GROMMET, SHIFT SHAFT
15
822418
SHAFT, SHIFT UPPER
16
89302
Шайба
17
822417
PIN, SHIFT LINK
18
269531
Шплинт
19
822396
SCREW (M12 X 1.75 X 162)
20
812893
MOUNT
21
40011153
SCREW (M8 X 1.25 X 45)
22
93416
Шайба
23
28421
Шайба
24
90099
NUT (M12 X 1.75)
25
821512A3
TRIM COVER ASSEMBLY (PAINTED)
26
822421
BUMPER, TRIM COVER
27
826173
SCREW (M5 X .8 X 60)
28
73288
Шайба
29
400263
NUT (M5 X .8)
30
8249422
SEAL, EXHAUST BUCKET
31
824795
BUCKET, EXHAUST
32
822394
BUMPER, TRIM COVER
33
822395
SEAL, EXHAUST TUBE
34
822422
SEAL, IDLE RELIEF
35
817430110
SCREW (M10 X 110)
36
821447A3
DRIVESHAFT HOUSING ASSEMBLY (PAINTED)
37
823984
STUD (M10 X 1.5 X 50)
38
824459120
SCREW (M8 X 1.25 X 120)
39
8217812
MOUNT (LOWER)
40
821780F3
COVER, MOUNT (PAINTED)
41
45175
Шайба
42
13914
NUT (M10)
43
817626
SCREW (10-16 X .38")
44
82445965
SCREW (M8 X 1.25 X 65)
45
72521
LOCKWASHER (5/16" INTERNAL)
46
88238A11
CABLE ASSEMBLY
47
8217821
BUMPER (FRONT)
48
8217812
MOUNT (LOWER)
49
821780F3
COVER, MOUNT (PAINTED)
50
36001
Шайба
51
401198
NUT (M8 X 1.25)
-
820751A1
COMPONENTS OF POWERHED GASKET SET
