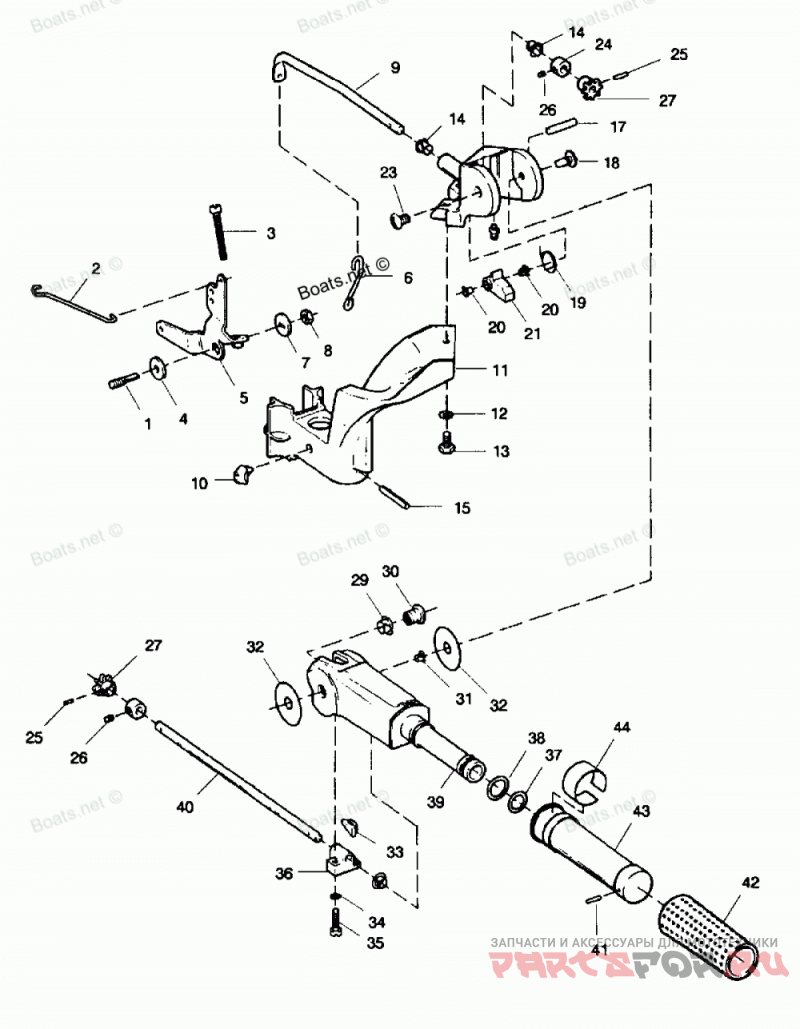

Tiller Handle And Throttle Linkage

Force H0152S89A

Tiller Handle And Throttle Linkage

#

oem код

название

цена

1

STUD, MAGNETO CONTROL LEVER

STUD, MAGNETO CONTROL LEVER

2

LINK, THROTTLE CAM

LINK, THROTTLE CAM

3

SLOTTED FILL. HEAD SCREW, 1/4 - 28 X 2

SLOTTED FILL. HEAD SCREW, 1/4 - 28 X 2

4

BEARING, MAGNETO CONTROL LEVER

BEARING, MAGNETO CONTROL LEVER

5

LEVER, MAGNETO CONTROL

LEVER, MAGNETO CONTROL

6

LINK, MAGNETO SHAFT

LINK, MAGNETO SHAFT

7

Шайба

Шайба

8

STOP NUT, 5/16 -24

STOP NUT, 5/16 -24

9

SHAFT, MAGNETO CONTROL

SHAFT, MAGNETO CONTROL

10

Амортизатор ударов

Амортизатор ударов

11

ARM, STEERING W/BUMPER AND SPRING PIN

ARM, STEERING W/BUMPER AND SPRING PIN

12

EXTERNAL TOOTH LOCKWASHER

EXTERNAL TOOTH LOCKWASHER

13

HEX CAP SCREW, 1/4 - 20

HEX CAP SCREW, 1/4 - 20

14

Подшипник

Подшипник

15

Пружинный Штифт

Пружинный Штифт

16

FITTING, GREASE

FITTING, GREASE

17

GROOVE PIN

GROOVE PIN

18

SCREW, STEERING HANDLE PIVOT

SCREW, STEERING HANDLE PIVOT

19

SPRING, STEERING HANDLE STOP

SPRING, STEERING HANDLE STOP

20

BEARING, STEERING HANDLE STOP

BEARING, STEERING HANDLE STOP

21

STOP, STEERING HANDLE

STOP, STEERING HANDLE

22

BRACKET, STEERING HANDLE W/GREASE FITTING

BRACKET, STEERING HANDLE W/GREASE FITTING

23

TRUSS HEAD SCREW, 5/16 - 18 X 5/8

TRUSS HEAD SCREW, 5/16 - 18 X 5/8

24

RETAINER W/SET SCREW

RETAINER W/SET SCREW

25

Пружинный Штифт

Пружинный Штифт

26

HEX HEADLESS SOCKET SET SCREW

HEX HEADLESS SOCKET SET SCREW

27

GEAR, MAGNETO CONTROL SHAFT

GEAR, MAGNETO CONTROL SHAFT

28

Подшипник

Подшипник

29

Подшипник

Подшипник

30

INSERT, STEERING HANDLE PIVOT

INSERT, STEERING HANDLE PIVOT

31

Подшипник

Подшипник

32

WASHER, STEERING HANDLE

WASHER, STEERING HANDLE

33

WEDGE, STEERING HANDLE

WEDGE, STEERING HANDLE

34

INTERNAL TOOTH LOCKWASHER

INTERNAL TOOTH LOCKWASHER

35

HEAD SCREW, 10 - 24 X 7/8

HEAD SCREW, 10 - 24 X 7/8

36

BEARING, STEERING HANDLE

BEARING, STEERING HANDLE

37

SEAL (SMALL)

SEAL (SMALL)

38

SEAL (LARGE)

SEAL (LARGE)

39

Румпель корпус

Румпель корпус

40

SHAFT, STEERING HANDLE

SHAFT, STEERING HANDLE

41

Пружинный Штифт

Пружинный Штифт

42

Гильца

Гильца

43

GRIP, STEERING HANDLE W/SLEEVE

GRIP, STEERING HANDLE W/SLEEVE

44

INDICATOR, STEERING HANDLE

INDICATOR, STEERING HANDLE
