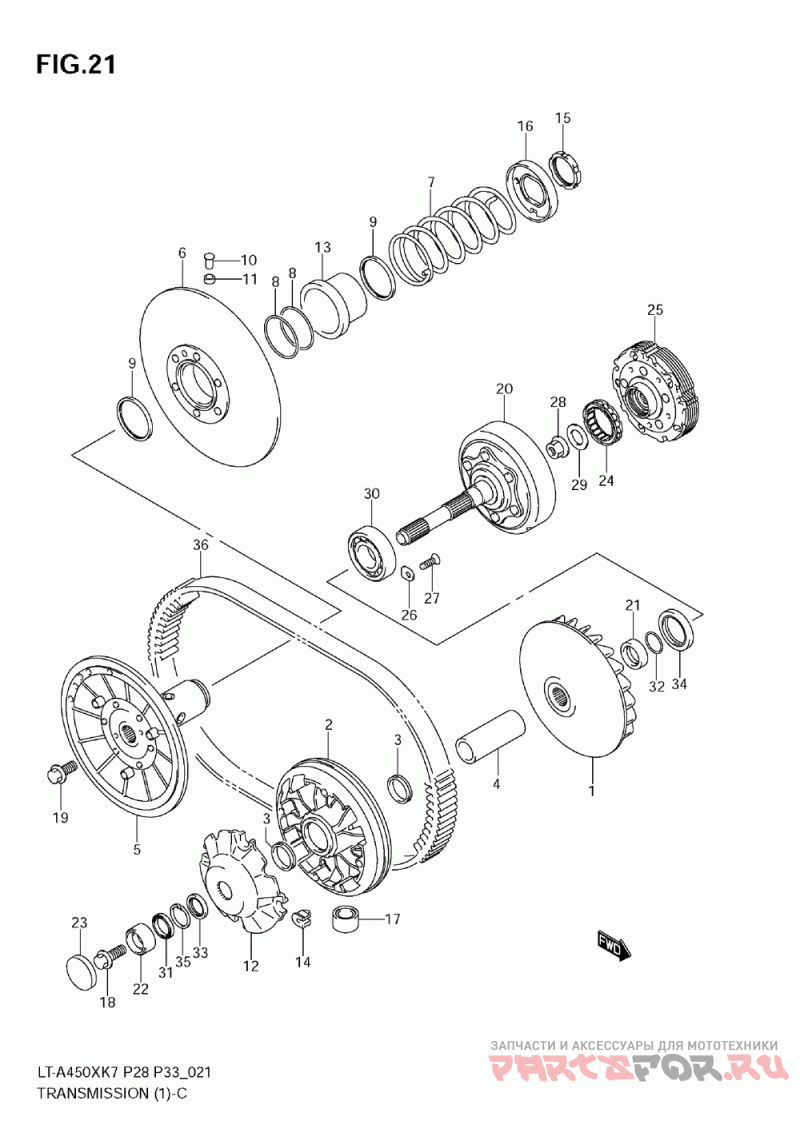

Трансмиссия 1 для квадроциклов Suzuki LT-A450X,Z 450AXi (2009)

Москва и регионы России

Трансмиссия 1

Suzuki LT-A450X,Z 450AXi

Трансмиссия 1

#

oem код

название

цена

1

Face, Fixed Driv

Face, Fixed Driv

2

Face, Movable Dr

Face, Movable Dr

3

Seal, Movable Drive

Seal, Movable Drive

4

Проставка

Проставка

5

Face, Fixed Driv

Face, Fixed Driv

6

Face, Movable Dr

Face, Movable Dr

7

Spring, Movable Driven

Spring, Movable Driven

8

O-ring, Movable Driven

O-ring, Movable Driven

9

Seal, Movable Driven

Seal, Movable Driven

10

Pin, Movable Driven

Pin, Movable Driven

11

Spacer, Movable Driven Pin

Spacer, Movable Driven Pin

12

Plate, Movable D

Plate, Movable D

13

Sheet, Movable Driven

Sheet, Movable Driven

14

Damper, Movable Drive Plate

Damper, Movable Drive Plate

15

Nut, Driven Pulley Spring

Nut, Driven Pulley Spring

16

Holder, Movable Driven

Holder, Movable Driven

17

Roller, Movable Driven

Roller, Movable Driven

18

Bolt, Magneto Rotor

Bolt, Magneto Rotor

19

Bolt (12x25)

Bolt (12x25)

20

Housing, Clutch

Housing, Clutch

21

Spacer, Drive Shaft

Spacer, Drive Shaft

22

Spacer, Clutch H

Spacer, Clutch H

23

Cap, V-belt Bearing

Cap, V-belt Bearing

24

Clutch, Pri Drive One Way

Clutch, Pri Drive One Way

25

Вариатор в сборе

Вариатор в сборе

26

Обойма подшипника

Обойма подшипника

27

Screw, Drive Shaft (6x12)

Screw, Drive Shaft (6x12)

28

Гайка

Гайка

29

Шайба

Шайба

30

Bearing (25x62x17) (28x62x17)

Bearing (25x62x17) (28x62x17)

31

Bearing, Clutch Housing, R (30x47x7)

Bearing, Clutch Housing, R (30x47x7)

32

Кольцо (d:2.4, Id:24.7)

Кольцо (d:2.4, Id:24.7)

33

Сальник (35x47x5)

Сальник (35x47x5)

34

Сальник (38x56x7)

Сальник (38x56x7)

35

Circlip, Clutch Housing

Circlip, Clutch Housing

36

V-belt, Drive

V-belt, Drive
