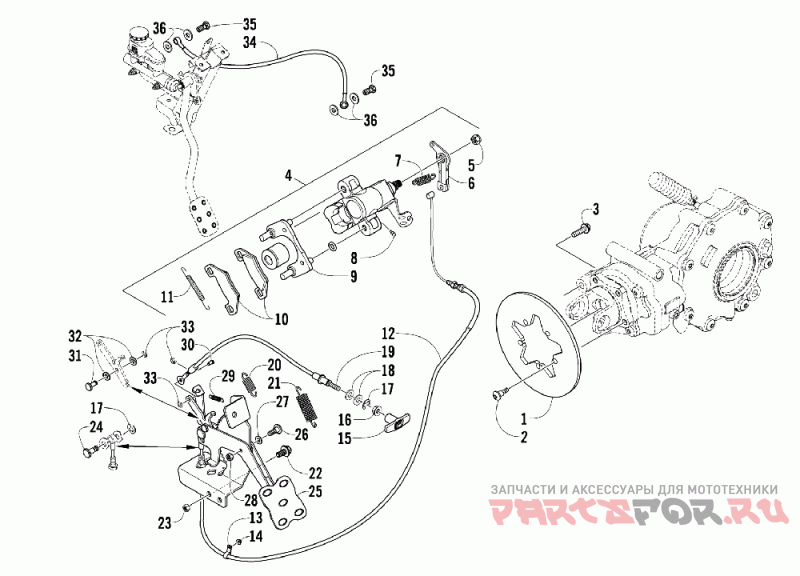

Rear and parking brake assembly

Arctic Cat Prowler XTX

Arctic Cat
#oem кодцена
1
1402-711
Rotor-mach (gray Iron)
2
0423-557
Винт
3
8408-836
Винт M8x1.25x35 Cl8.8 W/2353
4
1502-460
Kit, 1" Mechanical/hyd Caliper-full Assy (inc. 5-11)
5
0502-988
Nut, Parking Brake Actuator
6
1502-160
Kit-actuation Lever W/spring Hole
7
0502-985
Spring, Parking Brake
8
0502-609
Bleeder, Caliper (fc)
9
0502-605
Bracket, Assembly
10
1436-165
Kit-pad, Brake-set (type 97)
11
1502-161
Kit, Pad Springs-anti/rattle
12
0487-036
Cable, Parking Brake (inc. 13)
14
0423-540
Гайка м6
15
1502-024
Руль
16
8424-605
Nut, Hex-flg M6x1.0 Cl8 Blk Rie
17
0423-668
E-clip, 7.0 Mm
18
0423-913
Washer, 9.5mm X 22.2mm X 1.5 Thk Blk Rie
19
0487-064
Cable, Brake Release
20
1502-360
Spring, C
21
1502-026
Spring, A
22
8408-816
Screw, Cap-hfh M8x1.25x16 Cl8.8 Z&y
23
8424-802
Гайка
24
1502-361
Pin, B
25
1502-476
Parking Brake Assembly W/o Cable (inc. 26-32 And Two No. 33)
26
0423-356
Винт
27
0423-087
Шайба
28
0624-250
Гайка M6
29
1502-027
Spring, B
30
1502-030
Pin, C
31
1502-028
Pin, A
32
8050-212
Шайба
33
0423-667
E-clip, 4.0 Mm
34
1402-388
Hose, Brake-rear
35
0423-413
Болт 20mm
36
0423-178
Шайба
