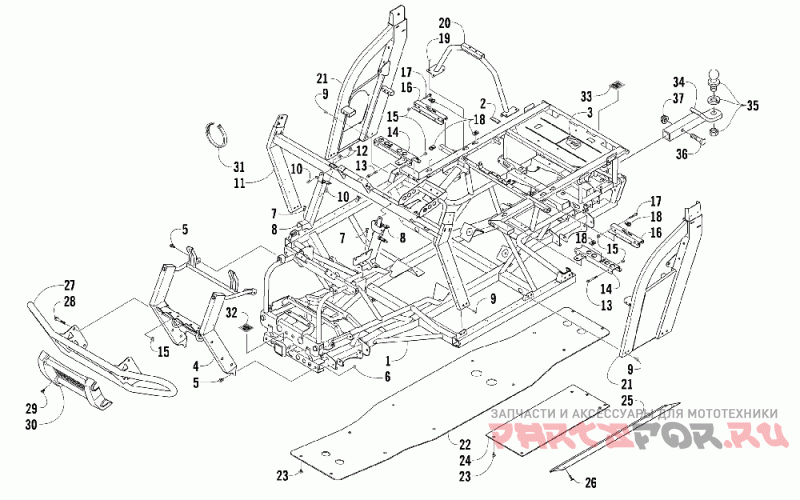

Frame and related parts (le)

Arctic Cat Prowler XTX

Arctic Cat
#oem кодцена
1
2516-497
Frame-fab (prowler St/mt) (inc. 2-3)
2
0406-879
Бампер
3
0412-461
Shield, Heat-chassis
4
2506-714
Bumper-painted Black
5
8409-020
Винт M10x1.25x20
6
8427-002
Гайка M10x1.25
7
8476-820
Винт M8x1.25x20
8
1506-797
Bracket, Steering Support-painted
0502-853
Bracket, Steering Support-painted
9
0423-817
Screw, Mach-tstrh M8x1.25x20 Cl8.8 W/lock
10
8408-820
Винт M8x1.25x20
11
2506-436
Steering Support-black
12
8424-802
Гайка
13
8408-870
Винт M8x1.25x70
14
1506-844
Bracket, Seat-support-front-rh-ptd Blk
1506-845
Bracket, Seat-support-front-lh-ptd Blk
15
8427-802
Гайка M8x1.25
16
1506-842
Bracket, Seat-support-rear-painted Blk
17
8408-850
Винт M8x1.25x50
18
0423-577
Клипса
19
8476-616
Винт M6x1.0x16
20
2506-638
Canopy Support-black
21
2506-634
Support, Overhead-rh-black
2506-635
Support, Overhead-lh-black
22
1406-720
Panel, Belly
23
0423-545
Винт
24
1406-721
Panel, Belly-side
25
2506-612
Plate, Skid-side-black
26
0423-849
Screw, Selftap-thft Sts12-24 X 3/4 Ab Z&b
27
2506-779
Bumper, Push-painted
28
8408-860
Винт M8x1.25x60
29
8477-616
Screw, Mach-tstrh M6x1.0x16 Z&blk
30
2516-338
Fascia, Bumper-routed
32
1411-122
Decal, Warning-towing Fr
33
1411-123
Decal, Warning-towing Rr
34
0541-714
Mount, Hitch Ball
35
0436-715
Kit, Hitch-ball-2"
36
0423-693
Screw, Cap-hh 1/2-13 X 3.25 Gr5 Z&c
37
0423-690
Nut, Hex-flg Side Lock Grf 1/2-13 Z&c
4
2516-558
Bumper, Xt/x-ptd Black
31
0123-788
Хомут пластиковый
