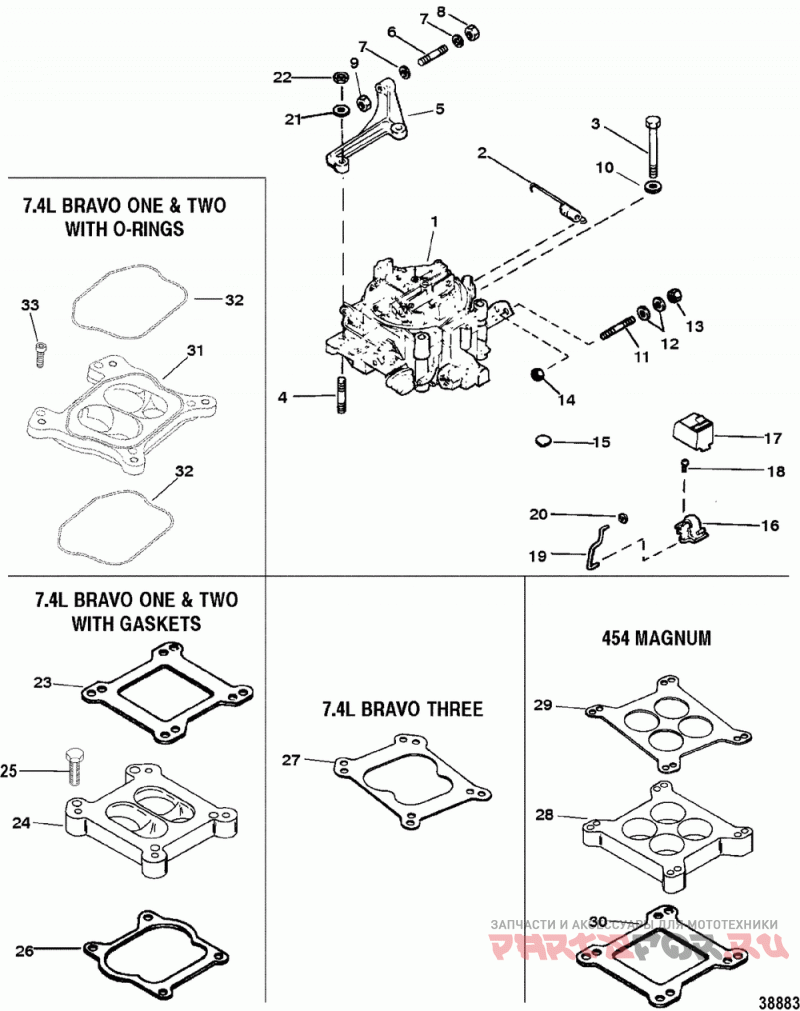

Carburetor and linkage

Mercruiser 7.4L BRAVO (GEN. V) GM 454 V-8 1992-1996 0D603118 THRU 0F800699

Mercruiser
#oem кодцена
1
806969A2
Carburetor Kit (7.4l Bravo I & Ii) Sn# 0d603118 Thru 0f351999
1
806969A1
Ord3310-8m0047212 (7.4l Bravo I & Ii) Sn# 0f352000 & Up
1
806755A2
Carburetor (7.4l Bravo Iii) Sn# 0d838819 & Up
1
806755A1
Carburetor (454 Magnum) Sn# 0d808069 Thru 0f304999
2
897454
Пружина
3
35385
Винт
3
35386
Screw @5 (5 Per Pack)
4
70237
Шпилька
4
70236
Шпилька
5
817685T
Ord 805359t
5
805359T
Bracket-throttle
6
818192
Шпилька
7
24664
Washer @5 (5 Per Pack)
8
826709109
Nut @5 (5 Per Pack)
9
8267089
Nut @5 (5 Per Pack)
10
39107
Lockwasher @5 (5 Per Pack)
11
96112
Шпилька
12
29245
Washer (10 Per Pack)
13
8267089
Nut @5 (5 Per Pack)
14
826709109
Nut @5 (5 Per Pack)
15
12524
Заглушка
16
71464A01
Thermostat-choke Automatic Choke
17
63922
Cover-choke Automatic Choke
18
69235
Screw @2 Automatic Choke (2 Per Pack)
19
806937
Rod-choke (7.4l Bravo I & Ii) Automatic Choke
19
806940
Rod-choke (454 Magnum & 7.4l Bravo Iii) Automatic Choke
20
89668
Clip Automatic Choke
21
20084
Washer @5 (5 Per Pack)
22
29250
Nut @5 (5 Per Pack)
23
41610
Gasket 7.4l Bravo I & Ii With Gaskets
24
806177A3
Adaptor Assy-carb 7.4l Bravo I & Ii With Gaskets
25
54523
Screw @5 7.4l Bravo I & Ii With Gaskets (5 Per Pack)
26
524572
Gasket 7.4l Bravo I & Ii With Gaskets
27
814210
Gasket (7.4l Bravo Iii & 454 Magnum With #9773 Carburetor)
28
889338A1
Kit-spacer Plate (not Used With #9773 Carburetor) 454 Magnum
29
41609
Gasket 454 Magnum
30
41610
Gasket 454 Magnum
31
806177A3
Adaptor Assy-carb 7.4l Bravo I & Ii With O-rings
32
806237
Ring-quad @2 7.4l Bravo I & Ii With O-rings (2 Per Pack)
33
54523
Screw @5 7.4l Bravo I & Ii With O-rings (5 Per Pack)
-
811547A92
Gasket Set (7.4l Bravo)
-
811572A92
Gasket Set (454 Magnum)
