Боковые крышки

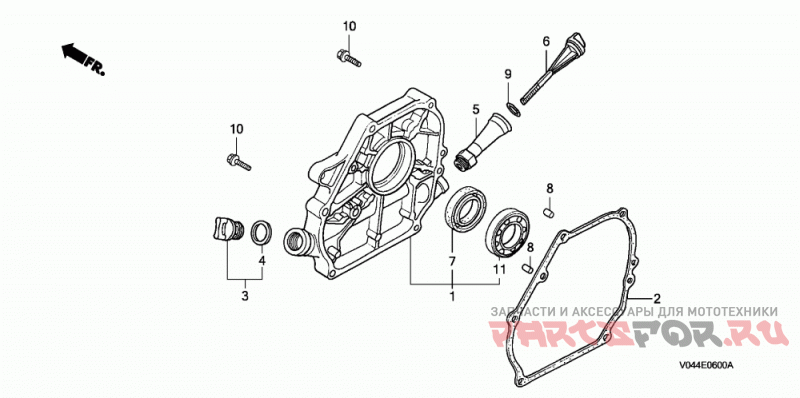

Honda HS724 TA SNOW BLOWER, JPN, VIN# SZBE-1000001 TO SZBE-1029999
| # | oem код | название | цена |
|---|---|---|---|
1 | 11300-ZE1-020 SEE PART DETAILS - PRI; COVER ASSY., CRANKCASE | SEE PART DETAILS - PRI; COVER ASSY., CRANKCASE | |
1 | 11300-ZE1-010 SEE PART DETAILS - SUP; COVER ASSY., CRANKCASE | SEE PART DETAILS - SUP; COVER ASSY., CRANKCASE | |
2 | 11381-ZL0-000 GASKET, CASE COVER | GASKET, CASE COVER | |
3 | 15600-ZG4-003 SEE PART DETAILS - PRI; CAP ASSY., OIL FILLER | SEE PART DETAILS - PRI; CAP ASSY., OIL FILLER | |
4 | 15625-ZE1-003 SEE PART DETAILS - PRI; GASKET, OIL FILLER CAP | SEE PART DETAILS - PRI; GASKET, OIL FILLER CAP | |
5 | 15640-730-010 SEE PART DETAILS - PRI; PIPE, OIL FILLER | SEE PART DETAILS - PRI; PIPE, OIL FILLER | |
6 | 15650-730-000 Указатель уровня масла | Указатель уровня масла | |
7 | 91202-883-005 SEE PART DETAILS - SUP; OIL SEAL (25X41X6) | SEE PART DETAILS - SUP; OIL SEAL (25X41X6) | |
7 | 91201-Z0T-801 SEE PART DETAILS - PRI; OIL SEAL (25X41X6) | SEE PART DETAILS - PRI; OIL SEAL (25X41X6) | |
8 | 94301-08140 PIN A, DOWEL (8X14) | PIN A, DOWEL (8X14) | |
9 | 94608-50000 O-RING (23X2.8) | O-RING (23X2.8) | |
10 | 95701-08032-00 SEE PART DETAILS - PRI; BOLT, FLANGE (8X32) | SEE PART DETAILS - PRI; BOLT, FLANGE (8X32) | |
11 | 96100-62050-00 SEE PART DETAILS - PRI; BEARING, RADIAL BALL (6205) | SEE PART DETAILS - PRI; BEARING, RADIAL BALL (6205) |
