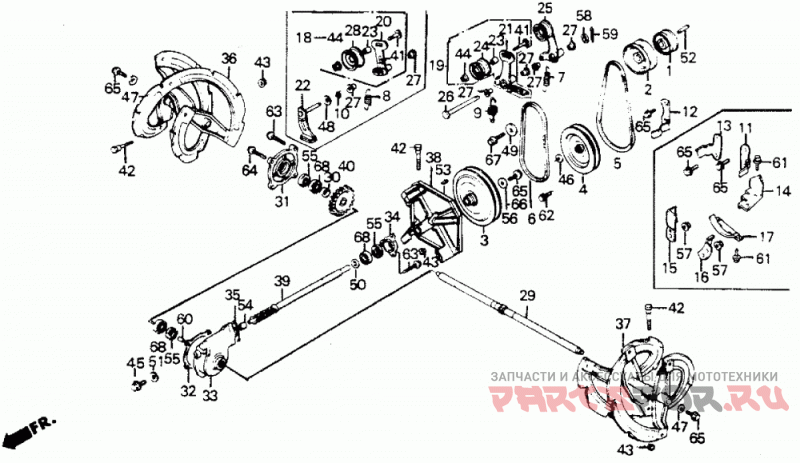

Drive Pulley

Honda HS55K1 TA SNOW BLOWER, JPN, VIN# HS55K1-1100001

Honda
#oem кодцена
1
22411-736-000
PULLEY, WHEEL DRIVEN
2
22412-736-000
PULLEY, AUGER DRIVE
3
22415-736-010
PULLEY, AUGER DRIVEN
3
22415-736-000
PULLEY, AUGER DRIVEN
5
22431-736-A01
V-BELT (SA-30)
6
22432-736-A01
SEE PART DETAILS - PRI; V-BELT (LB-33)
10
22439-736-A00
SPRING, BRAKE ARM
11
22441-736-A00
STOPPER, R. BELT
13
22442-736-A00
STOPPER, L. BELT
14
22443-736-A00
GUIDE, BELT
15
22444-736-A00
STOPPER, L. BELT
16
22445-736-A00
STOPPER, R. BELT
17
22451-736-A00
STOPPER, BELT (WHEEL)
23
22514-736-000
COLLAR, ROLLER
27
22524-730-000
BUSH, TENSIONER ARM
28
22530-736-A00
Ролик
30
23375-732-000
Втулка
32
71212-732-306
GASKET, AUGER TRANSMISSION
34
71222-732-000
CAP, AUGER CASE (NOT AVAILABLE)
35
71223-732-306
GASKET, AUGER CASE
41
90101-736-000
BOLT, ROLLER
42
90102-732-010
SEE PART DETAILS - PRI; BOLT, LOCK
43
90114-SA0-000
Гайка (6MM)
44
90115-659-003
NUT, SELF-LOCK (8MM)
45
90131-ZE1-000
Сливная пробка
46
90417-115-000
WASHER, CAMSHAFT SIDE
47
90430-657-000
Шайба (8mm)
48
90501-736-A00
Шайба
49
90534-706-010
WASHER, LOCK (8MM)
50
90554-728-940
WASHER, THRUST (27X20X1.0)
51
90601-ZE1-000
WASHER, DRAIN PLUG (10.2MM)
52
90741-883-621
KEY (5MM)
53
90753-732-000
KEY, SPECIAL WOODRUFF (16X12)
54
91002-732-000
BEARING, NEEDLE (15MM)
55
91201-732-003
OIL SEAL (20X32X7)
56
90435-611-000
WASHER, SPECIAL (28X8.5X4.0)
57
94050-06000
Гайка (6mm)
58
94102-12800
Шайба (12mm)
59
94201-30180
PIN, COTTER (3.0X18)
60
94301-08140
PIN A, DOWEL (8X14)
61
95701-06012-00
SEE PART DETAILS - PRI; BOLT, FLANGE (6X12)
62
95701-06016-08
Болт (6x16)
63
95701-06020-00
Болт (6X20)
64
95700-06028-00
Болт (6x28)
64
95701-06028-00
Болт (6x28)
65
95700-08016-00
Болт (8x16)
65
95701-08016-00
Болт (8x16)
66
95701-08022-00
Болт (8x22)
67
95701-08035-00
Болт (8x35)
68
96100-60040-00
BEARING, RADIAL BALL (6004)
