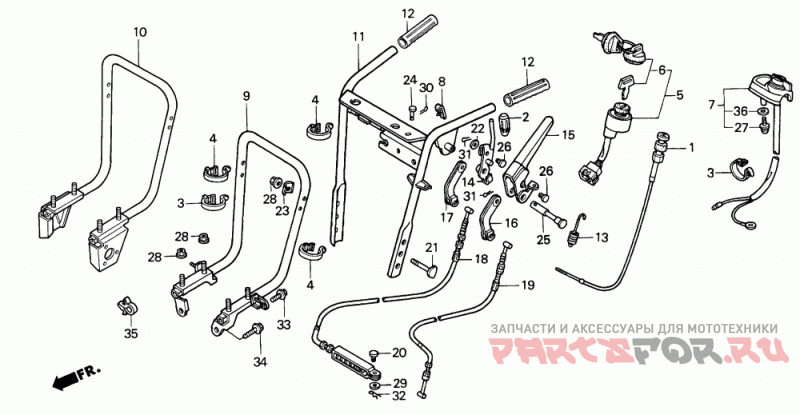

  5. HS522 TA SNOW BLOWER, JPN, VIN# SAA-1000001

Руль

Honda HS522 TA SNOW BLOWER, JPN, VIN# SAA-1000001

Honda
#oem кодцена
1
17950-743-710
Трос , дросельной заслонки
2
24411-736-000
GRIP, CHANGE LEVER
3
32161-404-610
BAND B1, CABLE
4
32161-438-000
BAND, CABLE
6
35110-743-701
KEY ASSY., COMBINATION SWITCH
8
50319-743-000
STOPPER, CLUTCH LEVER
9
53110-743-610
HANDLE (LOWER)
11
53150-743-610
HANDLE (UPPER)
12
53321-708-000
GRIP, HANDLE
13
54229-743-010
SEE PART DETAILS - SUP; SPRING, AUGER CLUTCH LEVER
14
54410-743-010
LEVER, MAIN CLUTCH
15
54416-743-700
LEVER, L. CLUTCH
16
54421-743-000
ARM, CLUTCH
17
54424-743-000
ARM, AUGER CLUTCH
18
54510-743-611
CABLE, MAIN CLUTCH
19
54520-743-611
CABLE, AUGER CLUTCH
20
77203-425-000
PIN, SEAT HINGE
21
90109-VA4-000
BOLT, HANDLE HOLDER
23
90501-898-000
WASHER, FRAME JOINT
24
90703-743-000
PIN (4X14)
25
90751-743-010
PIN, CLUTCH LEVER
26
90755-722-000
PIN (8X14)
28
94050-08000
SEE PART DETAILS - PRI; NUT, FLANGE (8MM)
29
94101-06800
SEE PART DETAILS - PRI; WASHER, PLAIN (6MM)
30
94201-16100
PIN, COTTER (1.6X10)
31
94201-16250
PIN, COTTER (1.6X25)
32
94251-06000
PIN, LOCK (6MM)
33
95701-08016-00
Болт (8x16)
34
95701-08020-00
Болт (8х20)
