  5. HS50 TA SNOW BLOWER, JPN, VIN# HS50-1000534

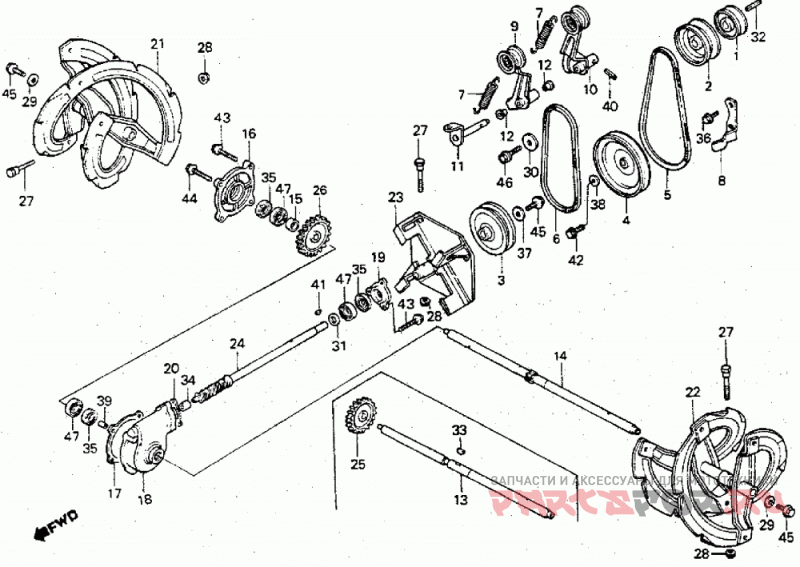

Auger + Drive Pulley

Honda HS50 TA SNOW BLOWER, JPN, VIN# HS50-1000534

Honda
#oem кодцена
0
90753-732-000
KEY, SPECIAL WOODRUFF (16X12)
0
94401-16120
KEY, WOODRUFF (16X12)
5
22431-732-671
V-BELT (31.7)
6
22432-732-013
V-BELT (SB-27)
9
22510-732-670
ARM, AUGER TENSIONER
10
22520-732-670
ARM, TENSIONER
12
22524-730-000
BUSH, TENSIONER ARM
13
23371-732-901
SHAFT, AUGER
15
23375-732-000
Втулка
17
71212-732-306
GASKET, AUGER TRANSMISSION
19
71222-732-000
CAP, AUGER CASE
20
71223-732-306
GASKET, AUGER CASE
27
90102-732-010
SEE PART DETAILS - PRI; BOLT, LOCK
27
90102-732-000
SEE PART DETAILS - SUP; BOLT, LOCK
28
90114-SA0-000
Гайка (6MM)
29
90430-657-000
Шайба (8mm)
30
90534-706-010
WASHER, LOCK (8MM)
31
90554-728-940
WASHER, THRUST (27X20X1.0)
32
90746-835-000
KEY (5X5X33)
34
91002-732-000
BEARING, NEEDLE (15MM)
35
91201-732-003
OIL SEAL (20X32X7)
36
92101-08016-0A
SEE PART DETAILS - PRI; BOLT, HEX. (8X16)
37
91414-671-000
Шайба (20mm)
37
94103-06000
Шайба (6мм)
38
94103-08000
Шайба (8mm)
39
94301-08140
PIN A, DOWEL (8X14)
40
94305-60252
PIN, SPRING (6X25)
42
95701-06016-00
Болт (6x16)
42
95701-06016-08
Болт (6x16)
43
95701-06020-00
Болт (6X20)
44
95700-06028-00
Болт (6x28)
44
95701-06028-00
Болт (6x28)
45
95700-08016-00
Болт (8x16)
45
95701-08016-00
Болт (8x16)
46
95701-08020-00
Болт (8х20)
46
95700-08020-00
SEE PART DETAILS - PRI; BOLT, FLANGE (8X20)
47
96100-60040-00
BEARING, RADIAL BALL (6004)
