  5. HS50 TA SNOW BLOWER, JPN, VIN# HS50-1000534

Руль

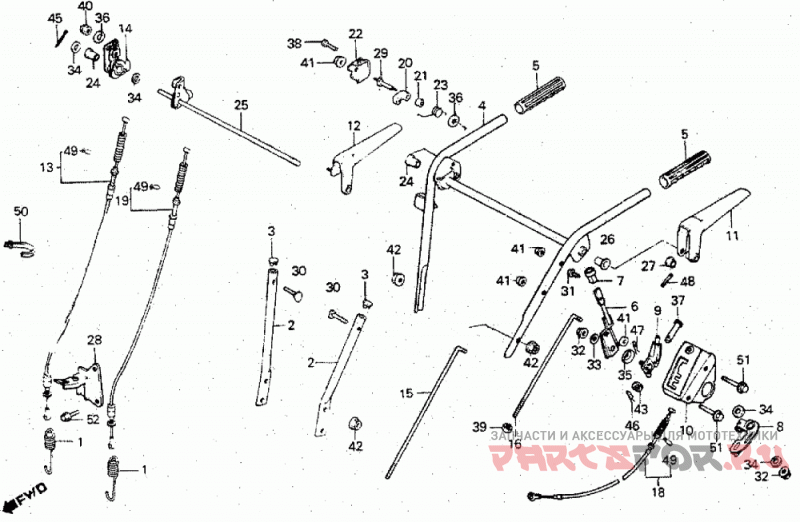

Honda HS50 TA SNOW BLOWER, JPN, VIN# HS50-1000534

Honda
#oem кодцена
2
53110-732-670
HANDLE (LOWER)
3
53115-732-000
CAP, HANDLE (LOWER)
4
53150-732-000
PIPE, HANDLE (UPPER)
5
53321-708-000
GRIP, HANDLE
6
54211-732-670
LEVER, CHANGE
7
54225-952-770
Ручка
8
54226-732-670
LINK, CHANGE
9
54227-732-670
ARM, CHANGE LEVER
10
54228-732-670
BRACKET, CHANGE LEVER
11
54415-732-000
Рычаг
15
54521-732-670
ROD, GEARSHIFT
19
54530-732-000
Трос, сцепления
20
54531-732-003
RATCHET, LEVER
21
54533-732-000
COLLAR, RATCHET
22
54535-732-000
COVER, RATCHET
23
54536-736-A00
SEE PART DETAILS - PRI; SPRING, RATCHET
23
54536-732-000
SEE PART DETAILS - SUP; SPRING, RATCHET
24
54538-732-000
BUSH (13MM)
26
54554-732-000
BUSH (14MM)
27
54556-732-000
BUSH (4.5MM)
28
74165-732-670
HOLDER, AUGER WIRE
29
90105-732-000
BOLT, PIVOT (6MM)
30
90109-VA4-000
BOLT, HANDLE HOLDER
31
90110-732-000
SCREW-WASHER, SPECIAL (4X8)
32
90115-659-003
NUT, SELF-LOCK (8MM)
33
90401-689-010
WASHER A (10MM)
34
90412-329-000
Шайба (10mm)
35
90455-881-000
Пружина рычага
36
90539-836-000
Шайба (6mm)
37
90702-732-670
PIN, LINK
38
93101-06006-0B
SEE PART DETAILS - PRI; BOLT, HEX. (6X6)
39
94030-08000
Гайка (8мм)
40
94021-06020
SEE PART DETAILS - PRI; NUT, CAP (6MM)
41
94050-06000
Гайка (6mm)
42
94050-08000
SEE PART DETAILS - PRI; NUT, FLANGE (8MM)
43
94101-06800
SEE PART DETAILS - PRI; WASHER, PLAIN (6MM)
44
94101-08000
Шайба (8mm)
45
94201-30180
PIN, COTTER (3.0X18)
46
94251-06000
PIN, LOCK (6MM)
47
94251-08000
PIN, LOCK (8MM)
48
94305-30162
PIN, SPRING (3X16)
49
95002-02080
Трубка
50
95014-61200
BAND A2, CABLE
51
95701-06035-00
Болт (6x35)
52
95701-08016-00
Болт (8x16)
52
95700-08016-00
Болт (8x16)
