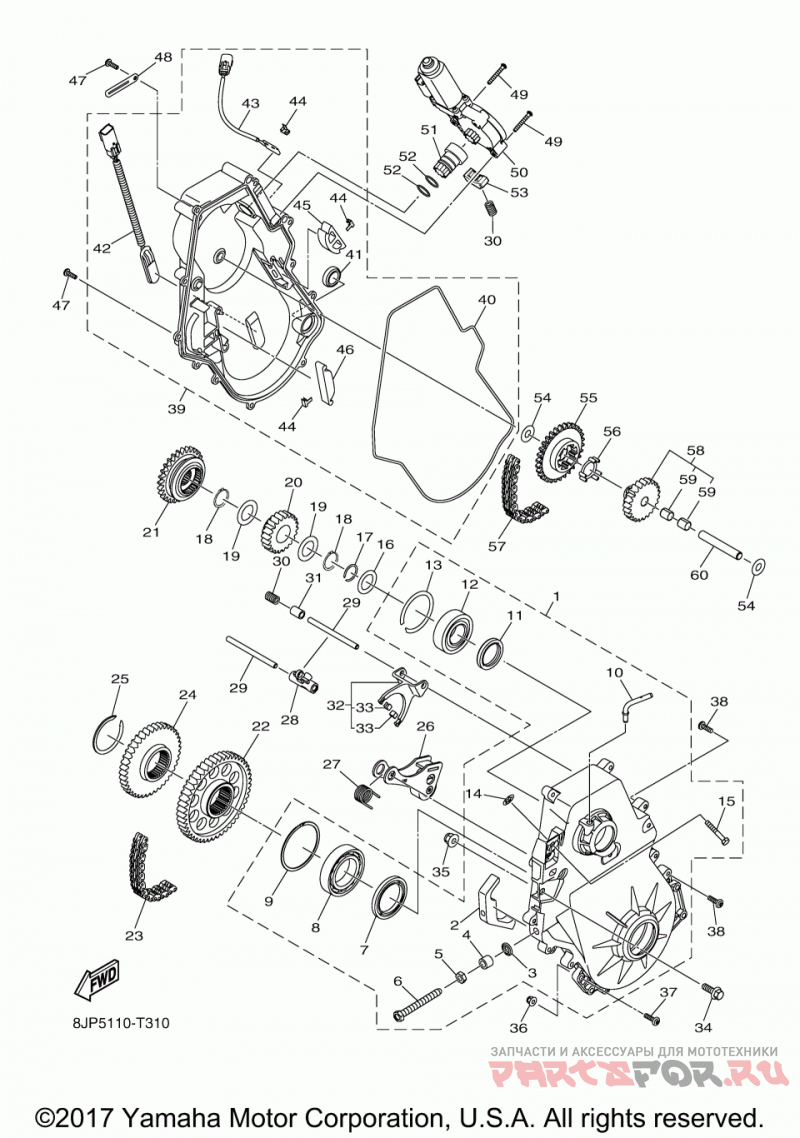

Привод трака 2

Yamaha SRVIPER L TX DX (SR1NLDJL)

Yamaha
#oem кодцена
1
8JP-G754A-20-00
CHAIN CASE ASSY.
2
8JP-G7516-00-00
. .PLATE, RATCHET
3
90210-10004-00
. .WASHER, SEAL
4
8JP-RA716-00-00
. .COLLAR, 4
5
8JP-RA366-00-00
. .NUT, HEX. 3/8-16
6
8JP-RA1A8-00-00
. .BOLT, HEX. 3/8-16X3.25
7
8JP-RAE03-00-00
. .SEAL, OIL 50X65X8
8
8JP-RAG05-00-00
. .BEARING, 6009
9
8JP-RAH05-00-00
. .CIRCLIP, EH-75
10
8JP-G7586-00-00
. .BREATHER
11
8JP-RAE01-00-00
. .SEAL, OIL 35X47X7
12
8JP-RAG07-10-00
. .BEARING, 6206
13
8JP-RAH06-00-00
. .CIRCLIP, FH-062
14
8JP-RA347-00-00
. .NUT, 1/4
15
8JP-RA1A9-00-00
. .BOLT, HEX. M6X1.0X40
16
8JP-RA434-00-00
WASHER, 3
17
8JP-RAC04-00-00
CIRCLIP, 5
18
8JP-RAH11-00-00
CIRCLIP, 5
19
8JP-RA440-00-00
WASHER, 1.00X1.562X0.062
20
8JP-E769A-40-00
DRIVE SPROCKET ASSY. (24T)
21
8JP-E7143-00-00
GEAR, REVERSE PINION 1
22
8JP-G7587-00-00
SPROCKET, CHAIN DRIVEN (50T)
23
8JP-RAM01-00-00
CHAIN, BWA 13 (92L)
24
8JP-G7548-00-00
SPROCKET, CHAIN DRIVEN (40T)
25
8JP-RAC03-00-00
CIRCLIP, 4
26
8JP-G7613-01-00
Держатель
27
8JP-RAD12-00-00
SPRING, 1
28
8JP-E8112-00-00
Рычаг
29
8JP-E8125-00-00
Вал
30
8JP-RAD13-00-00
SPRING, 2
31
8JP-RA803-00-00
BUSH, 2
32
8JP-E8501-00-00
Вилка
33
8JP-G7614-00-00
. .SHOE
34
8JP-RA185-00-00
BOLT, FLANGE M8X1.25X20
35
8JM-RA301-00-00
NUT, SELF-LOCKING M8-1.25
36
8JM-RA322-00-00
NUT, FLANGE M6-1.0
37
8JP-RA266-00-00
SCREW, M6X1.0X30
38
8JP-RA283-00-00
SCREW, TAPPING M6X2.0X24
39
8JP-G754B-02-00
HOUSING CAP ASSY.
40
8JP-G7558-02-00
. .RING, HOUSING
41
8JP-E5361-00-00
. .GAUGE, LEVEL
42
8JP-H5985-00-00
. .SENSOR, SPEED
43
8JP-H5899-00-00
. .SENSOR, GEAR POSITION
44
8JP-RAC12-00-00
. .CLIP, 3
45
8JP-E7468-00-00
. .GUIDE, CHAIN 2
46
8JP-E7467-00-00
. .GUIDE, CHAIN 1
47
8KG-RA229-00-00
Винт
48
8JP-RAB22-00-00
CLAMP, 20
49
8JP-RA247-10-00
SCREW, M5X0.8X35
50
8JP-G616A-10-00
Серво мотор
51
8JP-E7848-10-00
Адаптер
52
8JP-RAF04-00-00
O-RING, 2
53
8JP-E8128-00-00
Держатель
54
8JP-RA444-00-00
WASHER, 12X26X1
55
8JP-E7692-00-00
SPROCKET, DRIVE (30T)
56
8JP-E8615-00-00
DAMPER, RUBBER
57
8JP-RAM02-00-00
CHAIN, REX 11
58
8JP-E724A-00-00
REVERSE WHEEL ASSY.
59
8JP-RA809-00-00
. .BUSH, 12
60
8JP-E761A-00-00
Ось 1
