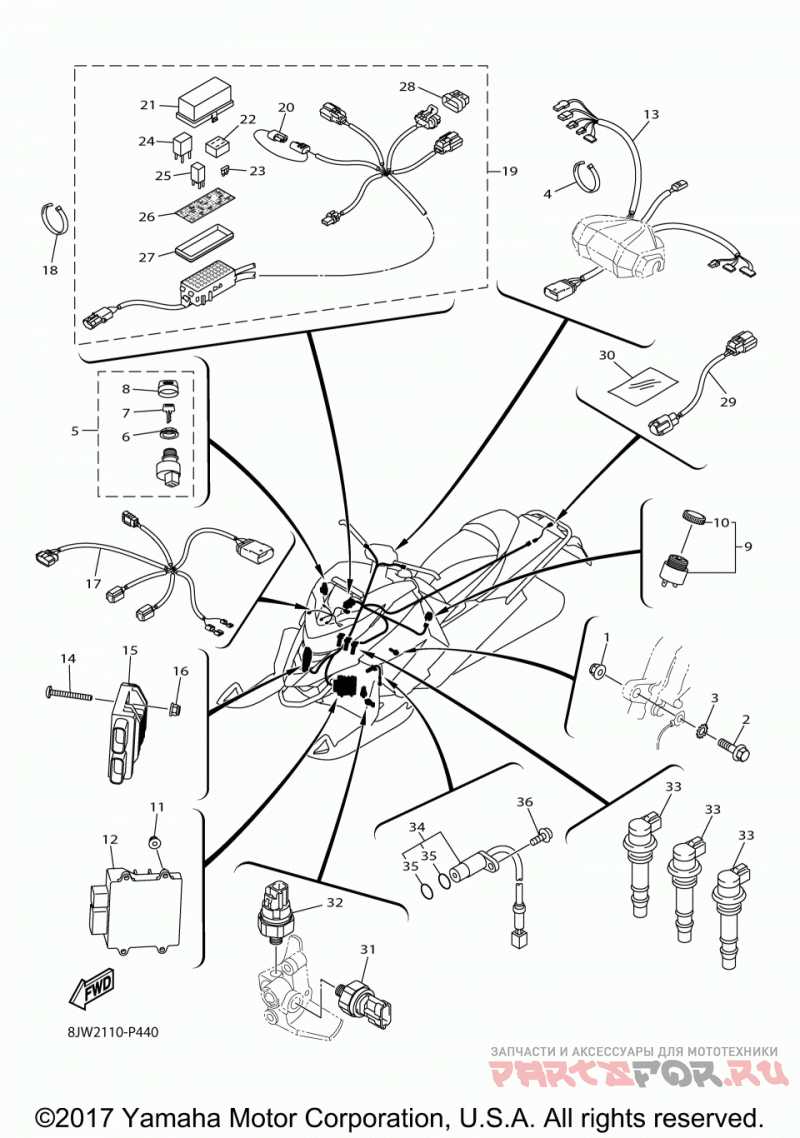

Электрика 1

Yamaha SRVIPER L TX DX (SR1NLDJL)

Yamaha
#oem кодцена
1
8JP-RA360-00-00
NUT, FLANGE LOCKING
2
8JP-RA197-00-00
BOLT, FLANGE M10X1.25X30
3
8JP-RA456-00-00
WASHER, TOOTH 3/8
4
8JM-RAB01-00-00
CLAMP, 2 (8 INCH)
4
8JP-RAB03-00-00
CLAMP, 1 (4-INCH)
5
8JP-H2510-00-00
Замок зажигания
6
8JP-H2569-00-00
. .NUT, MAIN SWITCH
7
8JP-H2511-10-00
. .KEY (Z SERIES, RIGHT-SIDE CU
7
8JP-H2511-00-00
. .KEY (Y SERIESE, LEFT-SIDE CU
8
8JP-H2577-01-00
. .CAP, KEY
9
8JP-H2564-00-00
ALARM UNIT
10
8JP-H4395-00-00
. .RING, RETAINING
11
8JM-RA322-00-00
NUT, FLANGE M6-1.0
12
8JP-H591A-30-00
ENGINE CONTROL UNIT ASSY
13
8JP-H2318-00-00
Жгут проводов
14
8JP-RA264-00-00
SCREW, M6X1.0X25
15
8JP-H1960-10-00
RECTIFIER & REGULATOR ASSY
16
8JM-RA322-00-00
NUT, FLANGE M6-1.0
17
8JP-H2105-00-00
Провода
18
8JP-RAB03-00-00
CLAMP, 1 (4-INCH)
18
8JP-RAB04-00-00
CLAMP, 2 (11.5 INCH)
18
8JM-RAB01-00-00
CLAMP, 2 (8 INCH)
19
8LJ-H2590-00-00
Блок предохранителей
20
8JP-G8352-00-00
. .ANCHOR, CABLE 1
21
8JP-H2172-00-00
. .COVER, FUSE BOX
22
8JP-H2152-00-00
. .HOLDER, FUSE
23
8JP-H2151-30-00
. .FUSE (30A)
23
8JP-H2151-20-00
. .FUSE (25A)
23
8JP-H2151-00-00
. .FUSE (15A)
23
8JP-H2151-10-00
. .FUSE (20A)
24
8JP-H2185-00-00
. .RELAY (5PIN) 30AMP
25
8JP-H2189-00-00
. .RELAY (4PIN) 20AMP
26
8JP-R2391-00-00
. .EMBLEM 1
27
8JP-H1365-00-00
. .GASKET, HOLE COVER
28
8JP-H1662-10-00
. .COVER, CONNECTER
29
8JR-H2586-00-00
EXTENSION, WIRE HARNESS
30
8JM-F199H-00-00
Накладка
31
8GN-83651-00-00
SENDER, OIL PRESSURE
32
8FP-82504-00-00
OIL PRESSURE SWITCH ASSY
33
8ES-82310-00-00
Катушка зажигания
34
8GL-81670-00-00
PICK-UP ASSY
35
5VY-8A8E1-00-00
. .O-RING 1
36
90110-06219-00
BOLT, HEXAGON SOCKET HEAD
