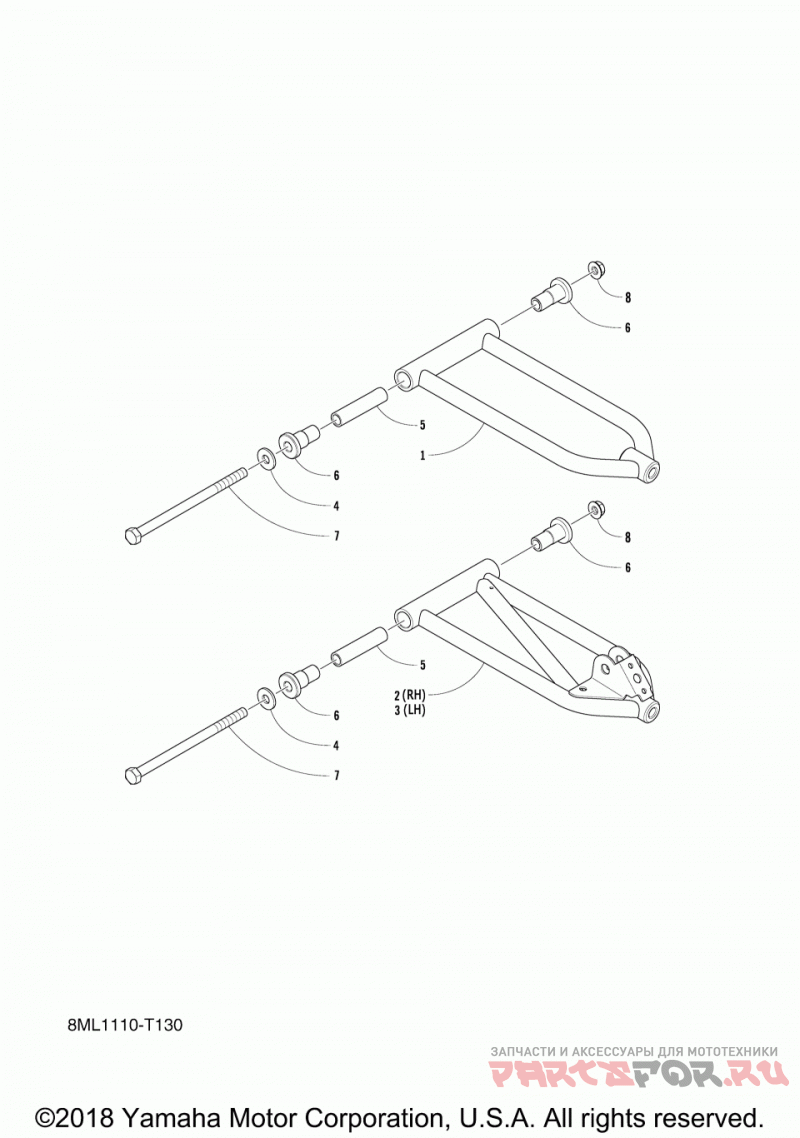

Передняя подвеска
Yamaha SNOSCOOT (SXR2NJL/SXR2NJW)
| # | oem код | название | цена |
|---|---|---|---|
1 | 8MV-F354A-00-00 ARM, FRONT UPPER LH | ARM, FRONT UPPER LH | |
2 | 8MV-F358A-00-00 ARM, FRONT LOWER RH. | ARM, FRONT LOWER RH. | |
3 | 8MV-F357A-00-00 ARM, FRONT LOWER LH. | ARM, FRONT LOWER LH. | |
4 | 8JM-RA405-00-00 WASHER, PLAIN 3/8 | WASHER, PLAIN 3/8 | |
5 | 8MV-RA703-00-00 COLLAR, 10 | COLLAR, 10 | |
6 | 8JM-F3583-00-00 Втулка | Втулка | |
7 | 8JM-RA107-10-00 BOLT, HEXAGON 3/8-16X6 | BOLT, HEXAGON 3/8-16X6 | |
8 | 8JP-RA358-00-00 NUT, FLANGE LOCKING 3/8-16 | NUT, FLANGE LOCKING 3/8-16 |
