Рама 2 для снегоходов Yamaha SIDEWINDER L TX LE 50TH EARLY BUILD (SWENLLJW) (2018)

Москва и регионы России

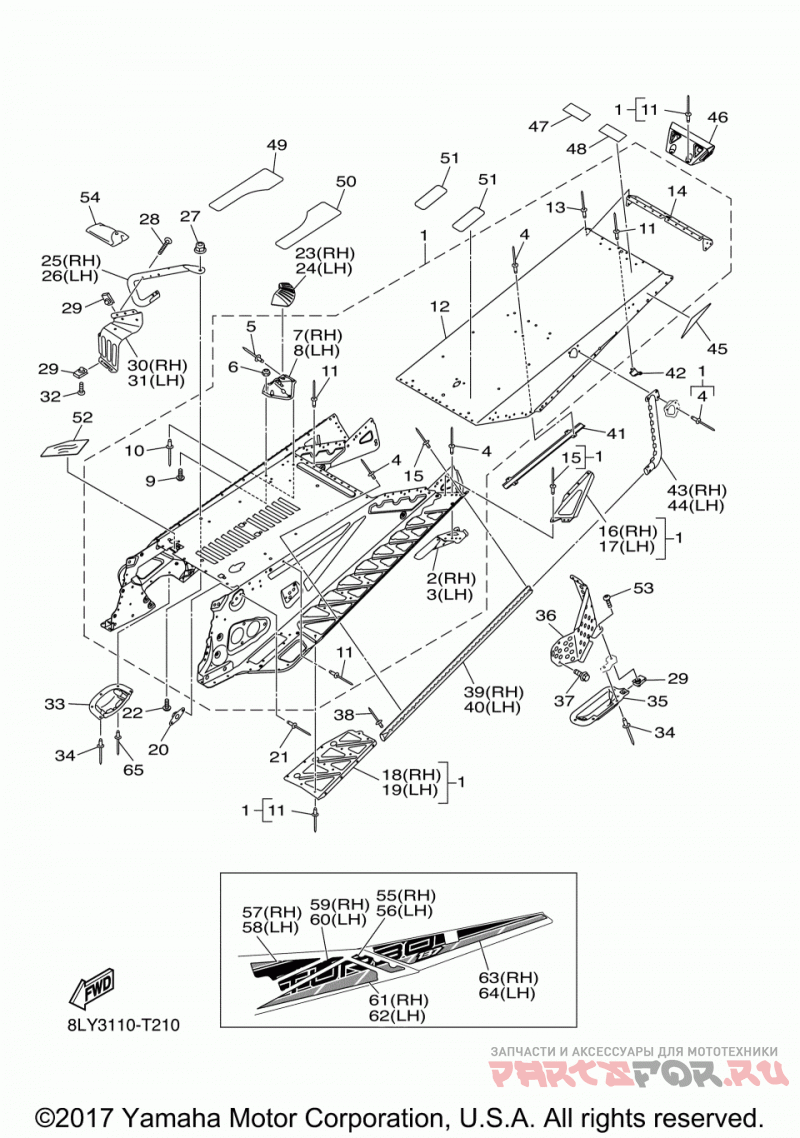

Рама 2

Yamaha SIDEWINDER L TX LE 50TH EARLY BUILD (SWENLLJW)

Рама 2

#

oem код

название

цена

1

8LY-F1950-10-00

Задняя рама

Задняя рама

2

8LY-F1954-00-00

. BRACKET, REAR TRACK SUSPENSIO

. BRACKET, REAR TRACK SUSPENSIO

3

8LY-F1944-00-00

. BRACKET, REAR TRACK SUSPENSIO

. BRACKET, REAR TRACK SUSPENSIO

4

8JP-RA520-00-00

. RIVET, 11

. RIVET, 11

5

8JP-RA532-00-00

. RIVET, 20

. RIVET, 20

6

8JP-RA370-00-00

. .NUT, HEX. LOCKING

. .NUT, HEX. LOCKING

7

8LY-F115M-00-00

. BRACKET, MEMBER 2

. BRACKET, MEMBER 2

8

8LY-F115L-00-00

. .BRACKET, MEMBER 1

. .BRACKET, MEMBER 1

9

8JP-RA239-00-00

. .SCREW, 5

. .SCREW, 5

10

8JP-RA528-00-00

. .RIVET, 3/16

. .RIVET, 3/16

11

8JP-RA529-00-00

. .RIVET, 17

. .RIVET, 17

12

8LY-F1912-00-00

. PANEL, SUB FRAME 1

. PANEL, SUB FRAME 1

13

8JP-RA514-10-00

. .RIVET, 5

. .RIVET, 5

14

8MT-F1923-00-00

. REINEFORCEMENT, FRAME REAR 1

. REINEFORCEMENT, FRAME REAR 1

15

8JP-RA527-00-00

. RIVET, 3/16

. RIVET, 3/16

16

8LY-F1135-00-00

. GUSSET

. GUSSET

17

8LY-F1134-00-00

. GUSSET

. GUSSET

18

8LR-F1931-00-00

. REINFORCEMENT, FRAME FRONT 2

. REINFORCEMENT, FRAME FRONT 2

19

8LR-F1921-00-00

. REINEFORCEMENT, FRAME REAR 1

. REINEFORCEMENT, FRAME REAR 1

20

8JP-F1919-00-00

Держатель

Держатель

21

8JP-RA519-00-00

RIVET, 10

RIVET, 10

22

8JP-RA272-00-00

SCREW, M8X1.25X20

SCREW, M8X1.25X20

23

8JP-F2556-00-00

SUPPORT, FUEL TANK 2

SUPPORT, FUEL TANK 2

24

8JP-F2555-00-00

SUPPORT, FUEL TANK 1

SUPPORT, FUEL TANK 1

25

8KC-F192E-00-00

Усилитель

Усилитель

26

8KC-F1929-00-00

REINFORCEMENT, FRAME SIDE

REINFORCEMENT, FRAME SIDE

27

8JM-RA301-00-00

NUT, SELF-LOCKING M8-1.25

NUT, SELF-LOCKING M8-1.25

28

8JP-RA247-00-00

SCREW, M5X0.8X35

SCREW, M5X0.8X35

29

8JP-RA353-00-00

NUT, CLIP M5

NUT, CLIP M5

30

8LR-F1996-00-00

REINFORCEMENT SUB FRAME FR 2

REINFORCEMENT SUB FRAME FR 2

31

8LR-F1995-00-00

REINFORCEMENT SUB FRAME FR 1

REINFORCEMENT SUB FRAME FR 1

32

8JP-RA251-00-00

SCREW, M5X1.0X16

SCREW, M5X1.0X16

33

8JP-F2147-00-00

PROTECTOR, CHAIN

PROTECTOR, CHAIN

34

8JP-RA523-00-00

RIVET, 14

RIVET, 14

35

8JP-F5717-00-00

PROTECTOR, DISC BRAKE

PROTECTOR, DISC BRAKE

36

8LR-F5718-00-00

PROTECTOR, DISC BRAKE

PROTECTOR, DISC BRAKE

37

8JP-RA179-00-00

BOLT, FLANGE M6X1.0X12

BOLT, FLANGE M6X1.0X12

38

8JP-RA526-00-00

RIVET, 3/16

RIVET, 3/16

39

8LY-F1937-00-00

REINFORCEMENT, REAR FOOTREST 2

REINFORCEMENT, REAR FOOTREST 2

40

8LY-F1927-00-00

REINFORCEMENT, REAR FOOTREST 1

REINFORCEMENT, REAR FOOTREST 1

41

8MH-H2589-00-00

PROTECTER, WIRE HARNESS

PROTECTER, WIRE HARNESS

42

8MG-H258A-00-00

EXTENSION, WIRE HARNESS

EXTENSION, WIRE HARNESS

43

8MT-F1137-00-00

GUSSET

GUSSET

44

8MT-F1136-00-00

GUSSET

GUSSET

45

8JP-F151A-00-00

Наклейка

Наклейка

46

8MT-F117E-00-00

Кронштейн, заднего фонаря

Кронштейн, заднего фонаря

47

8JP-K7762-70-00

LABEL, WARNING 2 (ENGLISH)

LABEL, WARNING 2 (ENGLISH)

48

8JP-K7762-S0-00

LABEL, WARNING 2 (FRENCH)

LABEL, WARNING 2 (FRENCH)

49

8JP-F197C-00-00

PROTECTOR, FRAME 3

PROTECTOR, FRAME 3

50

8JP-F197B-00-00

Протектор

Протектор

51

8LN-F195A-00-00

Протектор ,рамы А

Протектор ,рамы А

52

8KC-K7557-10-00

..PROTECTOR 7

..PROTECTOR 7

53

8JP-RA244-00-00

SCREW, M5X0.8X20

SCREW, M5X0.8X20

54

8JP-F8100-00-00

Комплект инструментов

Комплект инструментов

55

8MT-F199N-00-00

GRAPHIC 8

GRAPHIC 8

56

8MT-F199M-00-00

GRAPHIC 7

GRAPHIC 7

57

8MT-F199D-00-00

GRAPHIC 4

GRAPHIC 4

58

8MT-F199C-00-00

GRAPHIC 3

GRAPHIC 3

59

8MT-F199L-00-00

GRAPHIC 6

GRAPHIC 6

60

8MT-F199K-00-00

GRAPHIC 5

GRAPHIC 5

61

8MT-F199B-00-00

Наклейка

Наклейка

62

8MT-F199A-00-00

Наклейка

Наклейка

63

8LY-F199R-50-00

GRAPHIC 10

GRAPHIC 10

64

8LY-F199P-50-00

GRAPHIC 9

GRAPHIC 9

65

8JP-RA524-00-00

RIVET, 15

RIVET, 15
