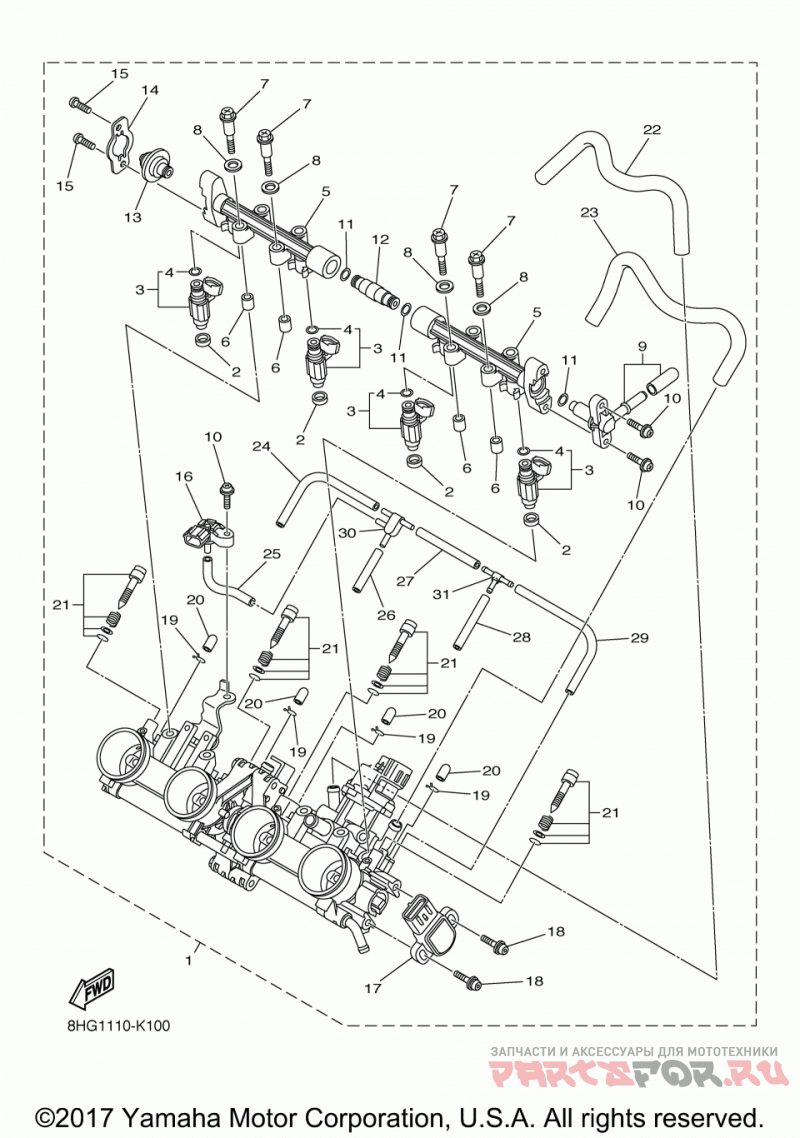

Впускная система 2

Yamaha APEX XTX LE 1.75 50TH (RX1NXLJW)

Yamaha
#oem кодцена
1
8HG-13750-00-00
Корпус дроссельных заслонок в сборе
2
8FP-13556-00-00
. .RUBBER, INJECTOR
3
8FP-13761-10-00
. .INJECTOR
4
8FP-14147-00-00
. . ..O-RING
5
8HG-13938-00-00
. .PIPE
6
8HG-14534-00-00
. .COLLAR
7
8HG-13573-00-00
. .BOLT 1
8
8GL-13571-00-00
. .WASHER
9
8HG-14251-00-00
. .NIPPLE
10
2C0-14216-00-00
. .SCREW
11
8HG-14561-00-00
. .O-RING
12
8HG-13582-00-00
. .PIPE
13
5VK-13982-00-00
. .DAMPER
14
8HG-14243-00-00
. .PLATE
15
98507-05008-00
. SCREW, PAN HEAD
16
5S7-82380-00-00
. .SENSOR, PRESSURE
17
8GL-85885-00-00
. .THROTTLE SENSOR ASSY
18
8CC-14216-10-00
. .SCREW
19
8A7-14139-00-00
. .CLIP, PIPE
20
895-14169-00-00
. .CAP
21
2C0-14105-00-00
. .PILOT SCREW SET
22
8HG-13547-00-00
. .HOSE 3
23
8HG-13548-00-00
. .HOSE, AIR 4
24
8HG-13543-00-00
. .HOSE, AIR
25
8GL-13892-00-00
. .HOSE, AIR 2
26
8FP-14349-30-00
. .PIPE
27
5JW-14349-10-00
. .PIPE
28
8FP-14349-20-00
. .PIPE
29
8HG-13546-00-00
. .HOSE 2
30
5PW-1410F-00-00
. .CONNECTOR
31
68V-24376-00-00
. .PIPE, JOINT 1
