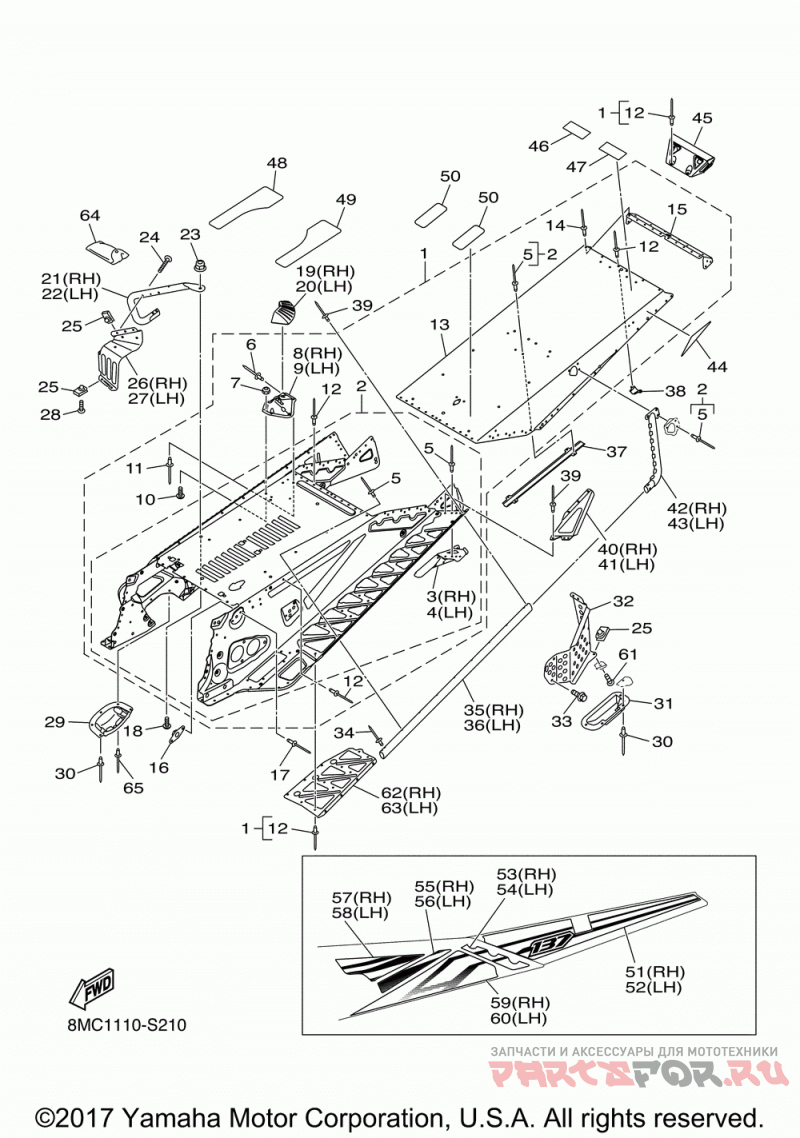

Рама 2

Yamaha SIDEWINDER X TX 137 LE SW10XL37HR

Yamaha
#oem кодцена
1
8LY-F1950-00-00
Задняя рама
2
8LY-F1911-00-00
Panel, Frame
3
8JY-F1954-00-00
Кронштейн, задний
4
8JY-F1944-00-00
Bracket, Rr.track S
5
8JP-RA520-00-00
Rivet, 11 Un (10 Per Pack)
6
8JP-RA532-00-00
Rivet, 20 (5 Per Pack)
7
8JP-RA370-00-00
Nut, Hex. Locking (8 Per Pack)
8
8JW-F115M-00-00
Brkt., Member 2
9
8JW-F115L-00-00
Bracket, Member 1
10
8JP-RA239-00-00
Screw, 5 (6 Per Pack)
11
8JP-RA528-00-00
Rivet, 3/16 (10 Per Pack)
12
8JP-RA529-00-00
Rivet, 17 Un (25 Per Pack)
13
8MH-F1912-00-00
Панель
14
8JP-RA514-10-00
Rivet, 5 (20 Per Pack)
15
8JW-F1923-00-00
Reineforcement, Fr
16
8JP-F1919-00-00
Держатель
17
8JP-RA521-00-00
Rivet, 12 (10 Per Pack)
18
8JP-RA272-00-00
Screw, M8x1.25x20
19
8JP-F2556-00-00
Supt., Fuel Tank 2
20
8JP-F2555-00-00
Supt., Fuel Tank 1
21
8KC-F192E-00-00
Брызговик
22
8KC-F1929-00-00
Брызговик
23
8JM-RA301-00-00
Nut, Hex Flg-nyl Lock
24
8JP-RA247-00-00
Screw, M5x0.8x35 (4 Per Pack)
25
8JP-RA353-00-00
Nut, Clip M5 (4 Per Pack)
26
8JW-F1996-00-00
Reinforcement Sub
27
8JW-F1995-00-00
Reinforcement Sub
28
8JP-RA251-00-00
Screw, M5x1.0x16 (2 Per Pack)
29
8JP-F2147-00-00
Protector, Chain
30
8JP-RA523-00-00
Rivet, 14 (10 Per Pack)
31
8JP-F5717-00-00
Protector, Disk Br
32
8JW-F5718-00-00
Protector, Disk Br
33
8JP-RA179-00-00
Bolt, Flg. M6x1.0x (2 Per Pack)
34
8JP-RA526-00-00
Rivet, 3/16 Un (6 Per Pack)
35
8KN-F1927-10-00
Reinforcement, Rr.
36
8KN-F1937-10-00
Reinforcement, Rr.
37
8MH-H2589-00-00
Protecter, Wire Ha
38
8MG-H258A-00-00
Extension, Wire Ha
39
8JP-RA527-00-00
Rivet, 3/16 Un (5 Per Pack)
40
8JW-F1135-00-00
Gusset
41
8JW-F1134-00-00
Gusset
42
8JW-F1137-00-00
Gusset
43
8JW-F1136-00-00
Gusset
44
8JP-F151A-00-00
Наклейка
45
8JW-F117E-10-00
Кронштейн, заднего фонаря
46
8JP-K7762-70-00
Label, Warning 2 (english)
47
8JP-K7762-S0-00
Label, Warning 2 (french)
48
8JP-F197C-00-00
Protector, Frame 3
49
8JP-F197B-00-00
Протектор
50
8LN-F195A-00-00
Протектор ,рамы А
51
8LY-F199R-30-00
Graphic 10
52
8LY-F199P-30-00
Graphic 9
53
8LY-F199N-00-00
Graphic 8
54
8LY-F199M-00-00
Graphic 7
55
8LY-F199L-00-00
Graphic 6
56
8LY-F199K-00-00
Graphic 5
57
8LY-F199D-00-00
Graphic 4
58
8LY-F199C-00-00
Graphic 3
59
8LY-F199B-00-00
Наклейка
60
8LY-F199A-00-00
Наклейка
61
8JP-RA244-00-00
Screw, M5x0.8x20 (4 Per Pack)
62
8KN-F1921-00-00
Reineforcement, Fr
63
8KN-F1931-00-00
Брызговик
64
8JP-F8100-00-00
Комплект инструментов
65
8JP-RA524-00-00
Rivet, 15 (10 Per Pack)
