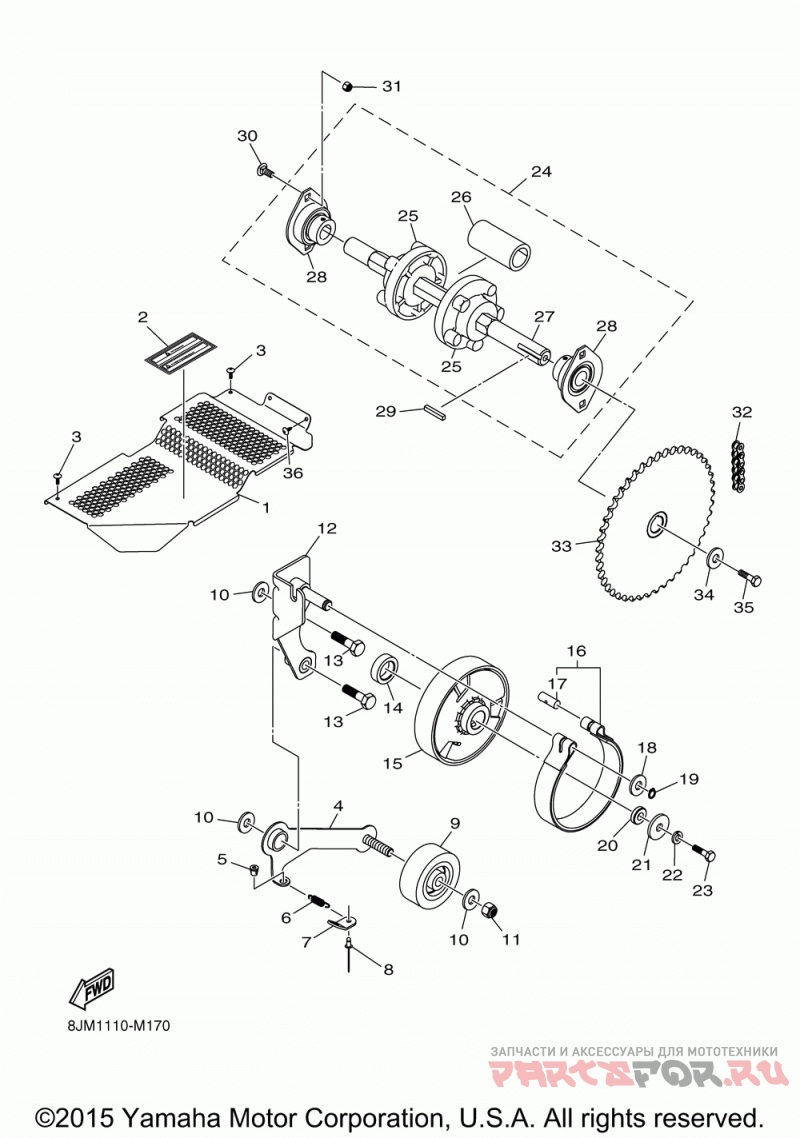

Привод трака 1

Yamaha SRX120 SRX120GL

Yamaha
#oem кодцена
1
8JM-K7311-01-00
Shield, Clutch/brake/
2
8JM-K7762-00-00
Decal, Warning, Guar
3
8JM-RA208-00-00
Screw, Self Tap-tstrh (10 Per Pack)
4
8JM-G7613-00-00
Tensioner, Chain-ptd
5
8JM-G7538-00-00
Bushing, Snap (4 Per Pack)
6
8JM-RAD05-00-00
Spring, Exhaust Stra
7
8JM-G2148-00-00
Tab, Spring, Retaine
8
8JM-RA500-00-00
Rivet, Blind-dh Ss53 (10 Per Pack)
9
8JM-G7429-00-00
Roller, Chain, Tight
10
8JM-RA403-00-00
Washer, Flat-5/16x.68 (10 Per Pack)
11
8JM-RA302-00-00
Nut, Hex Thin Lock-ny (10 Per Pack)
12
8JM-F5676-00-00
Bracket, Brake Ptd B
13
8JM-RA114-00-00
Screw, Cap-hh 5/16-24 (5 Per Pack)
14
8JM-RA700-00-00
Spacer, Clutch - Inn
15
8JM-E760P-00-00
Clutch, Centrifugal
16
8JM-F5719-00-00
Band, Brake
17
8JM-RAY00-00-00
Pin, Retainer-brake
18
8JM-RA405-00-00
Washer, Flat-3/8x1.00 (25 Per Pack)
19
8JM-RAH00-00-00
Snap Ring, Extl - 3/
20
8JM-RA701-00-00
Spacer, Clutch - Out
21
8JM-RA401-00-00
Wshr, .343x1 1/8x.12 (5 Per Pack)
22
8JM-RA402-00-00
Wshr, Sp Lk-5/16 .314 (5 Per Pack)
23
8JM-RA103-00-00
Screw, Cap-hh 5/16-24 (5 Per Pack)
24
8JM-G7501-00-00
Track Drive Assy-120
25
8JM-G7531-00-00
Sprocket, Track Driv
26
8JM-RA705-00-00
Spacer, Track Drive
27
8JM-G7511-00-00
Shaft, Drive Sprocke
28
8JM-RAY01-00-00
Bearing, Drive Sproc
29
8JM-G7733-00-00
Key, 3/16 X 3/16 X .
30
8JM-RA123-00-00
Bolt, Crg 5/16-18x.75 (5 Per Pack)
31
8JM-RA303-00-00
Nut, Hex Flg-ny Lock (10 Per Pack)
32
8JM-E6139-00-00
Chain, Roller - Driv
33
8JM-G7587-00-00
Sprocket, Chain-trac
34
8JM-RA404-00-00
Washer, Flat 21/64 X (10 Per Pack)
35
8JM-RA112-10-00
Screw, Cap-hh 5/16-1 (10 Per Pack)
36
8JM-RA201-00-00
Screw, Self Tap-txstr (5 Per Pack)
