Лыжа для снегоходов Yamaha SRVIPER R TX SE SR10RSFL/SR10RSFR (2015)

Москва и регионы России

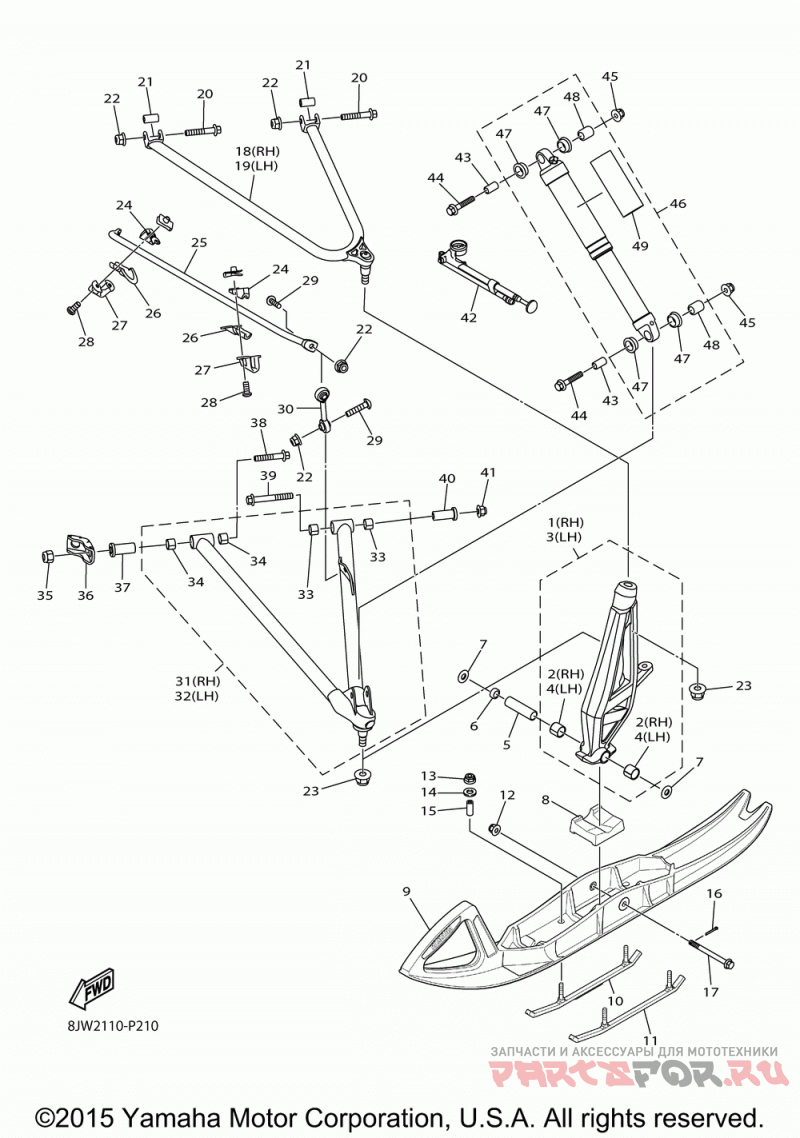

Лыжа

Yamaha SRVIPER R TX SE SR10RSFL/SR10RSFR

Лыжа

#

oem код

название

цена

1

8JP-F3521-30-00

Knuckle, Steering

Knuckle, Steering

2

8JP-RA806-00-00

Bush, 12du12 (2 Per Pack)

Bush, 12du12 (2 Per Pack)

3

8JP-F3511-30-00

Knuckle, Steering

Knuckle, Steering

4

8JP-RA806-00-00

Bush, 12du12 (2 Per Pack)

Bush, 12du12 (2 Per Pack)

5

8KN-RA736-00-00

Collar, 21

Collar, 21

6

8KN-RA737-00-00

Collar, 23

Collar, 23

7

Шайба

Шайба

8

8KN-F3743-00-00

Стопор

Стопор

9

SMA-8JPDS-00-BK

Sr Viper 135mm Tuner

Sr Viper 135mm Tuner

10

SMA-8JH31-01-IE

7/16" No Carb Tuner

7/16" No Carb Tuner

12

Гайка

Гайка

15

8KN-F3751-00-00

Втулка

Втулка

16

Шплинт

Шплинт

17

Болт

Болт

18

8JP-F355A-00-00

Arm, Front Upper Ur For Vrc1

Arm, Front Upper Ur For Vrc1

18

8JP-F355A-20-00

Arm, Front Upper Ur For Dpbse

Arm, Front Upper Ur For Dpbse

19

8JP-F354A-20-00

Arm, Front Upper Ur For Dpbse

Arm, Front Upper Ur For Dpbse

19

8JP-F354A-00-00

Arm, Front Upper Ur For Vrc1

Arm, Front Upper Ur For Vrc1

20

8JP-RA190-00-00

Bolt, Flg. M8x1.25

Bolt, Flg. M8x1.25

21

8JP-RA720-00-00

Collar, 8

Collar, 8

22

8JM-RA301-00-00

Nut, Hex Flg-nyl Lock

Nut, Hex Flg-nyl Lock

23

8JP-RA362-00-00

Nut, Flg. Locking (4 Per Pack)

Nut, Flg. Locking (4 Per Pack)

24

8JP-F3867-00-00

Державка

Державка

25

8JP-F386E-00-00

Bar, Stabilizer Fr

Bar, Stabilizer Fr

26

8JP-F386G-00-00

Втулка стабилизатора

Втулка стабилизатора

27

8JP-F386C-00-00

Holder, Stabilizer

Holder, Stabilizer

28

8JP-RA235-00-00

Screw, 1 (4 Per Pack)

Screw, 1 (4 Per Pack)

29

8JP-RA273-00-00

Screw, M8x1.25x35 (4 Per Pack)

Screw, M8x1.25x35 (4 Per Pack)

30

8JP-F386F-00-00

Link, Stabilizer F

Link, Stabilizer F

31

8JP-F358A-00-00

Arm, Fr. Lwr. Rh. Ur For Vrc1

Arm, Fr. Lwr. Rh. Ur For Vrc1

31

8JP-F358A-20-00

Arm, Fr. Lwr. Rh. Ur For Dpbse

Arm, Fr. Lwr. Rh. Ur For Dpbse

32

8JP-F357A-20-00

Arm, Fr. Lwr. Lh. Ur For Dpbse

Arm, Fr. Lwr. Lh. Ur For Dpbse

32

8JP-F357A-00-00

Arm, Fr. Lwr. Lh. Ur For Vrc1

Arm, Fr. Lwr. Lh. Ur For Vrc1

33

8JP-RA807-00-00

Bush, 10du10 (4 Per Pack)

Bush, 10du10 (4 Per Pack)

34

8JP-RA811-00-00

Bush, 1815du

Bush, 1815du

35

8JP-RA361-00-00

Nut, Flg. Locking (2 Per Pack)

Nut, Flg. Locking (2 Per Pack)

36

8JP-F3543-00-00

Arm, 1

Arm, 1

37

8JP-RA721-00-00

Collar, 9

Collar, 9

38

8JP-RA1A7-00-00

Bolt, Flg. M12x1.2 (2 Per Pack)

Bolt, Flg. M12x1.2 (2 Per Pack)

39

8JP-RA1A4-00-00

Bolt, Flg. M10x1.2

Bolt, Flg. M10x1.2

40

8JP-RA719-00-00

Collar, 7 (2 Per Pack)

Collar, 7 (2 Per Pack)

41

8JP-RA360-00-00

Nut, Flg. Locking (4 Per Pack)

Nut, Flg. Locking (4 Per Pack)

42

8JW-F3703-00-00

Регулировщик

Регулировщик

43

8JP-RA724-00-00

Collar, 12 (2 Per Pack)

Collar, 12 (2 Per Pack)

44

8JP-RA1A3-00-00

Bolt, Flg. M10x1.2 (5 Per Pack)

Bolt, Flg. M10x1.2 (5 Per Pack)

45

8JP-RA360-00-00

Nut, Flg. Locking (4 Per Pack)

Nut, Flg. Locking (4 Per Pack)

46

8JW-F330E-20-00

Бендикс

Бендикс

48

8JP-RA732-00-00

Collar, 15

Collar, 15

49

8JW-F151F-00-00

Наклейка 3

Наклейка 3
