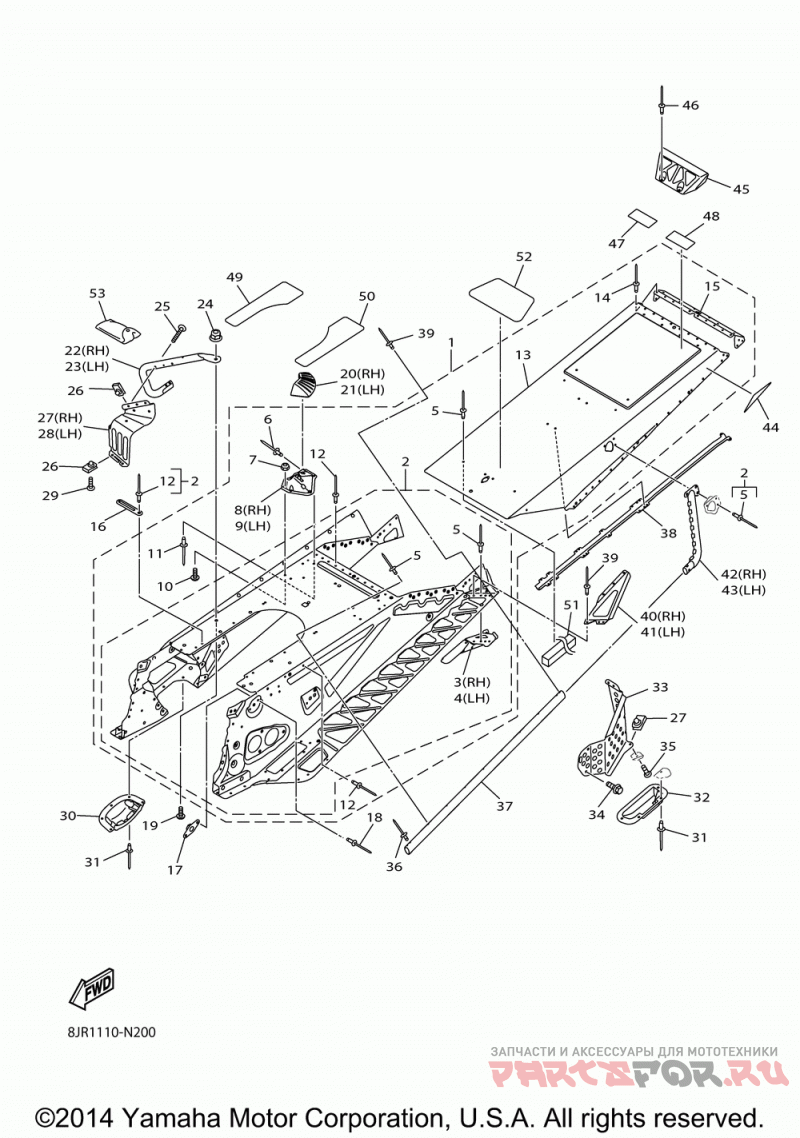

Рама 2

Yamaha SRVIPER XTX_SE SR10XSER/SR10XSEL

Yamaha
#oem кодцена
1
8JR-F1950-30-00
Rear Frame Comp. Ur For Dpbse
1
8JR-F1950-00-00
Rear Frame Comp. Ur For Vrc1
2
8JR-F1911-30-00
Panel, Frame Ur For Dpbse
2
8JR-F1911-00-00
Panel, Frame Ur For Vrc1
3
8JR-F1954-30-00
Bracket, Rr.track Su Ur For Dpbse
3
8JR-F1954-00-00
Bracket, Rr.track Su Ur For Vrc1
4
8JR-F1944-30-00
Bracket, Rr.track Su Ur For Dpbse
4
8JR-F1944-00-00
Bracket, Rr.track Su Ur For Vrc1
5
8JP-RA518-00-00
Rivet, 9 Ur Un For Dpbse (10 Per Pack)
5
8JP-RA520-00-00
Rivet, 11 Ur Un For Vrc1 (10 Per Pack)
6
8JP-RA532-00-00
Rivet, 20 Un (5 Per Pack)
7
8JP-RA370-00-00
Nut, Hex. Locking (8 Per Pack)
8
8JW-F115M-30-00
Brkt., Member 2 Ur For Dpbse
8
8JW-F115M-00-00
Brkt., Member 2 Ur For Vrc1
9
8JW-F115L-30-00
Bracket, Member 1 Ur For Dpbse
9
8JW-F115L-00-00
Bracket, Member 1 Ur For Vrc1
10
8JP-RA239-00-00
Screw, 5 (6 Per Pack)
11
8JP-RA528-00-00
Rivet, 3/16 (10 Per Pack)
12
8JP-RA517-00-00
Rivet, 8 Ur Un For Dpbse (20 Per Pack)
12
8JP-RA529-00-00
Rivet, 17 Ur Un For Vrc1 (25 Per Pack)
13
8JR-F1912-30-00
Panel, Sub Frame 1 Ur For Dpbse
13
8JR-F1912-00-00
Panel, Sub Frame 1 Ur For Vrc1
14
8JP-RA514-00-00
Rivet, 5 Ur Un For Dpbse (10 Per Pack)
14
8JP-RA530-00-00
Rivet, 18 Ur Un For Vrc1 (20 Per Pack)
15
8JW-F1923-30-00
Reineforcement, Fr Ur For Dpbse
15
8JW-F1923-00-00
Reineforcement, Fr Ur For Vrc1
16
8JP-RAB20-00-00
Clamp, 18 Un (4 Per Pack)
17
8JP-F1919-00-00
Крепление
18
8JP-RA519-00-00
Rivet, 10 Ur For Dpbse (10 Per Pack)
18
8JP-RA521-00-00
Rivet, 12 Ur For Vrc1 (10 Per Pack)
19
8JP-RA272-00-00
Screw, M8x1.25x20
20
8JP-F2556-00-00
Supt., Fuel Tank 2
21
8JP-F2555-00-00
Supt., Fuel Tank 1
22
8JP-F192E-00-00
Reinforcement, Fra Ur For Vrc1
22
8JW-F192E-30-00
Reinforcement, Fra Ur For Dpbse
23
8JP-F1929-00-00
Reinforcement, Fra Ur For Vrc1
23
8JW-F1929-30-00
Reinforcement, Fra Ur For Dpbse
24
8JM-RA301-00-00
Nut, Hex Flg-nyl Lock
25
8JP-RA247-00-00
Screw, M5x0.8x35 (4 Per Pack)
26
8JP-RA353-00-00
Nut, Clip M5 (4 Per Pack)
27
8JW-F1996-30-00
Reinforcement Sub Ur For Dpbse
27
8JW-F1996-00-00
Reinforcement Sub Ur For Vrc1
28
8JW-F1995-30-00
Reinforcement Sub Ur For Dpbse
28
8JW-F1995-00-00
Reinforcement Sub Ur For Vrc1
29
8JP-RA251-00-00
Screw, M5x1.0x16 (2 Per Pack)
30
8JP-F2147-00-00
Protector, Chain
31
8JP-RA523-00-00
Rivet, 14 (10 Per Pack)
32
8JP-F5717-00-00
Protector, Disk Br
33
8JW-F5718-30-00
Protector, Disk Br Ur For Dpbse
33
8JW-F5718-00-00
Protector, Disk Br Ur For Vrc1
34
8JP-RA179-00-00
Bolt, Flg. M6x1.0x (2 Per Pack)
35
8JP-RA244-00-00
Screw, M5x0.8x20 (4 Per Pack)
36
8JP-RA526-00-00
Rivet, 3/16 Un (6 Per Pack)
37
8JW-F1926-30-00
Reinforcement, Foo Ur For Dpbse
37
8JW-F1926-00-00
Reinforcement, Foo Ur For Vrc1
38
8JR-H2589-00-00
Protc, Wire Harness
39
8JP-RA527-00-00
Rivet, 3/16 Un (5 Per Pack)
40
8JW-F1135-30-00
Gusset Ur For Dpbse
40
8JW-F1135-00-00
Gusset Ur For Vrc1
41
8JW-F1134-30-00
Gusset Ur For Dpbse
41
8JW-F1134-00-00
Gusset Ur For Vrc1
42
8JW-F1137-30-00
Gusset Ur For Dpbse
42
8JW-F1137-00-00
Gusset Ur For Vrc1
43
8JW-F1136-30-00
Gusset Ur For Dpbse
43
8JW-F1136-00-00
Gusset Ur For Vrc1
44
8JP-F151A-00-00
Наклейка
45
8JW-F117E-30-00
Bracket, Taillight Ur For Dpbse
45
8JW-F117E-00-00
Bracket, Taillight Ur For Vrc1
46
8JP-RA529-00-00
Rivet, 17 Un (25 Per Pack)
47
8JP-K7762-70-00
Label, Warning 2 (english)
48
8JP-K7762-S0-00
Label, Warning 2 (french)
49
8JP-F197C-00-00
Protector, Frame 3
50
8JP-F197B-00-00
Протектор
51
8JR-F1978-00-00
Протектор
52
8JP-F4141-00-00
Protector, Fuel Ta
53
8JP-F8100-00-00
Комплект инструментов
