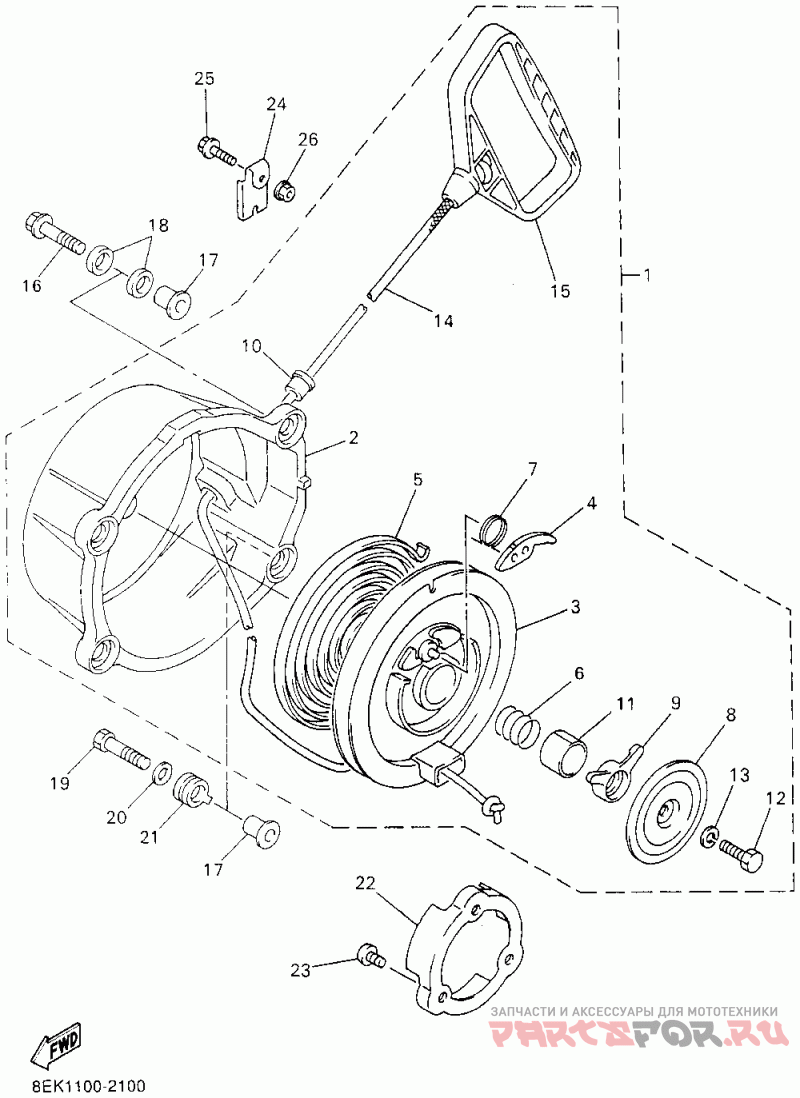

Стартер

Yamaha SX Viper

Yamaha
#oem кодцена
1
8EK-15710-00-00
Starter Assy (8ek1)
2
8EK-15711-00-00
Case, Starter (8ek1)
3
8DF-15714-01-00
Drum, Sheave (8ek1)
4
8EK-15741-00-00
Pawl, Drive (8ek1)
5
8DF-15713-00-00
Spring, Starter (8ek1)
6
8DF-15715-00-00
Spring, Friction (8ek1)
7
8CH-15767-00-00
Spring (8ek1)
8
8DF-15716-00-00
Plate, Drive (8ek1)
9
8DF-15735-00-00
Guide, Cam (8ek1)
10
8F3-15758-00-00
Guide, Rope (8ek1)
11
8DF-15753-00-00
Bush (8ek1)
12
8DF-15768-00-00
Bolt (8ek1)
13
92907-08100-00
Washer (jn5) (8ek1)
14
8CH-15751-00-00
Wire, Starter (8ek1)
15
8F3-15755-00-00
Handle, Starter (8ek1)
16
90119-08240-00
Bolt, Flange (8ek1)
17
90387-08071-00
Collar (8ek1)
18
90385-12036-00
Bush, Spec'l Rubber (8ek1)
19
97017-08035-00
Bolt (3ak) (8ek1)
20
92907-08600-00
Washer (6ta) (8ek1)
21
90386-12001-00
Bush (8ek1)
22
8DF-15723-00-00
Pulley, Starter (8ek1)
23
92017-08012-00
Bolt, Button (8ek1)
24
8DF-15758-10-00
Guide, Rope (8ek1)
25
95817-06014-00
Bolt, Flange (8ek1)
26
95707-06500-00
Nut, Flange (4mv) (8ek1)
